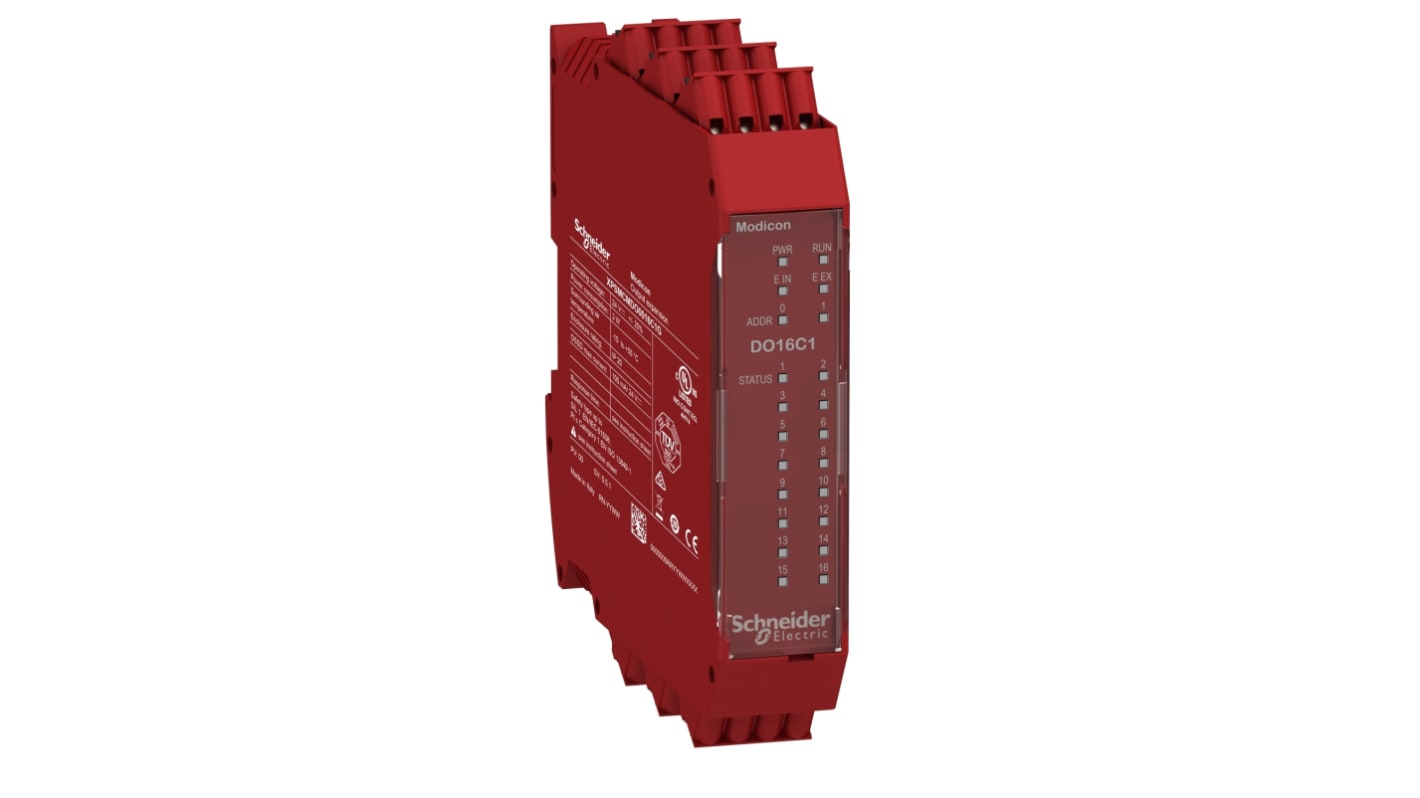

Schneider Electric XPSMCM Series PLC Expansion Module, 16 Safety Outputs, 24 V
- RS 제품 번호:
- 276-2719
- 제조사 부품 번호:
- XPSMCMDO0016C1G
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩658,996.40
일시적 품절
- 2026년 3월 30일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩658,996.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 276-2719
- 제조사 부품 번호:
- XPSMCMDO0016C1G
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Series | XPSMCM | |
| Product Type | PLC Expansion Module | |
| Number of Safety Outputs | 16 | |
| Mount Type | DIN Rail | |
| Supply Voltage | 24 V | |
| Contact Current | 100mA | |
| Width | 114.5 mm | |
| Standards/Approvals | EN/ISO 13849-1, IEC 62061, EN/IEC 61800-5-1, EN/IEC 61508 | |
| Depth | 22.5mm | |
| Terminal Type | Spring Clamp | |
| IP Rating | IP20 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Series XPSMCM | ||
Product Type PLC Expansion Module | ||
Number of Safety Outputs 16 | ||
Mount Type DIN Rail | ||
Supply Voltage 24 V | ||
Contact Current 100mA | ||
Width 114.5 mm | ||
Standards/Approvals EN/ISO 13849-1, IEC 62061, EN/IEC 61800-5-1, EN/IEC 61508 | ||
Depth 22.5mm | ||
Terminal Type Spring Clamp | ||
IP Rating IP20 | ||
제외
- COO (Country of Origin):
- IT
The Schneider Electric Expansion Module featuring 16 digital outputs with SIL1 safety level and spring loaded terminals. With a power consumption and dissipation of 3 W, it operates efficiently. The module utilizes a backplane expansion bus for integrated connections and includes 6 terminal blocks with 2 spring clamp terminals each. Designed for resistive loads, it complies with safety standards. It is CE certified and operates at discrete input and output voltages of 24 V DC, with a discrete output current of 100 mA and an output load of 60 Ohm.
Mercury free
RoHS compliant
IP20 degree of protection
Green Premium product
