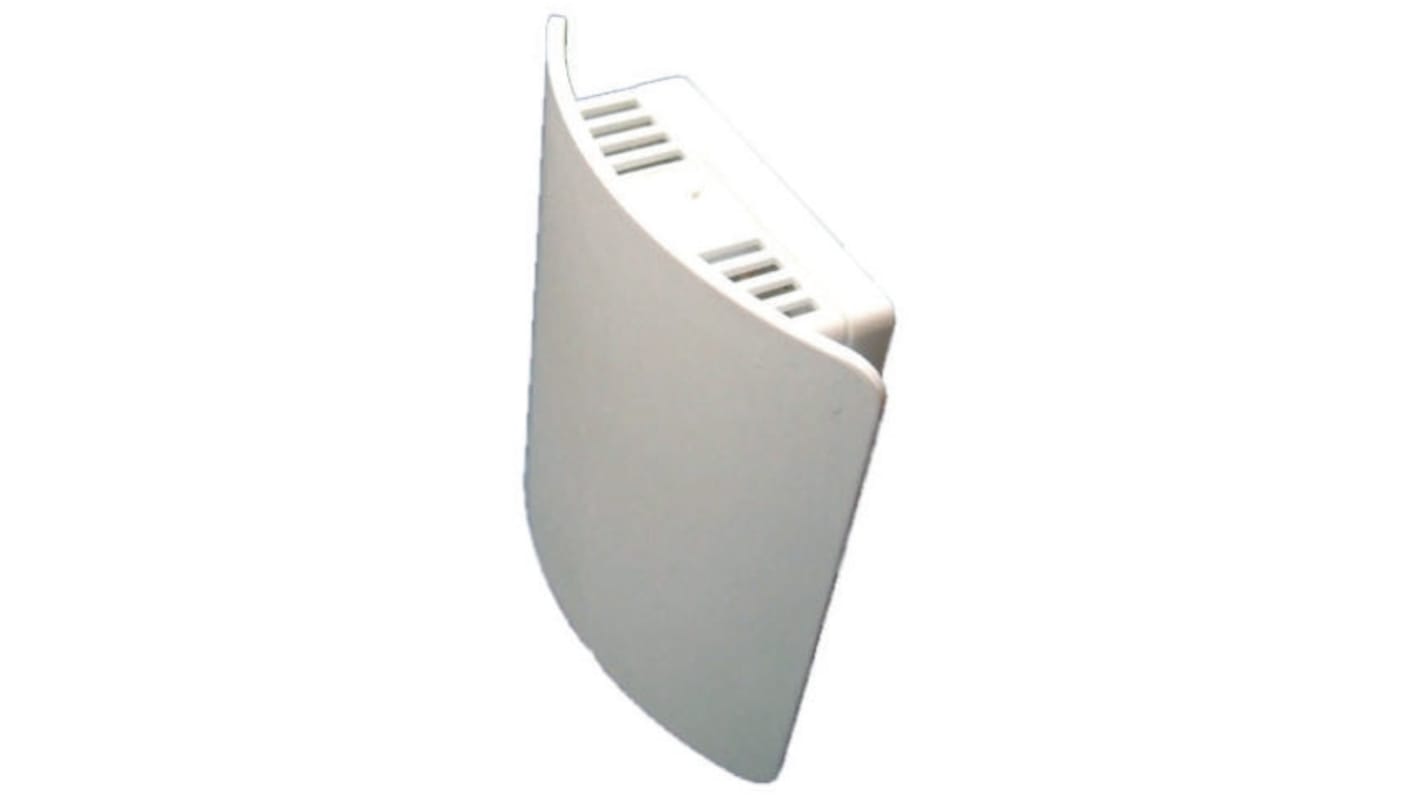

Jumo PT100 RTD Sensor, 2 Wire, Wall, Class B +60°C Max
- RS 제품 번호:
- 548-8253
- 제조사 부품 번호:
- 902520/10-807-1003-1/330,(0..60°C)
- 제조업체:
- Jumo
- RS 제품 번호:
- 548-8253
- 제조사 부품 번호:
- 902520/10-807-1003-1/330,(0..60°C)
- 제조업체:
- Jumo
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
PT100 resistance probes
Ambient and external resistance probes for air conditioning applications.
Pt 100 in ceramic DIN IEC 751 Class B, 2- or 3-wire fitting.
Mainly used to measure temperature inside and outside.
For temperatures of between -30 and +80 °C (200 °C).
Versions with 4 - 20 mA measurement converter are also available.
Pt 100 in ceramic DIN IEC 751 Class B, 2- or 3-wire fitting.
Mainly used to measure temperature inside and outside.
For temperatures of between -30 and +80 °C (200 °C).
Versions with 4 - 20 mA measurement converter are also available.
사양
속성 | 값 |
|---|---|
| Sensor Type | PT100 |
| Minimum Temperature Sensed | 0°C |
| Maximum Temperature Sensed | +60°C |
| Termination Type | Cable Gland |
| Process Connection | Wall |
| Number Of Wires | 2 |
| Accuracy | Class B |
| Response Time | 10 ms |
