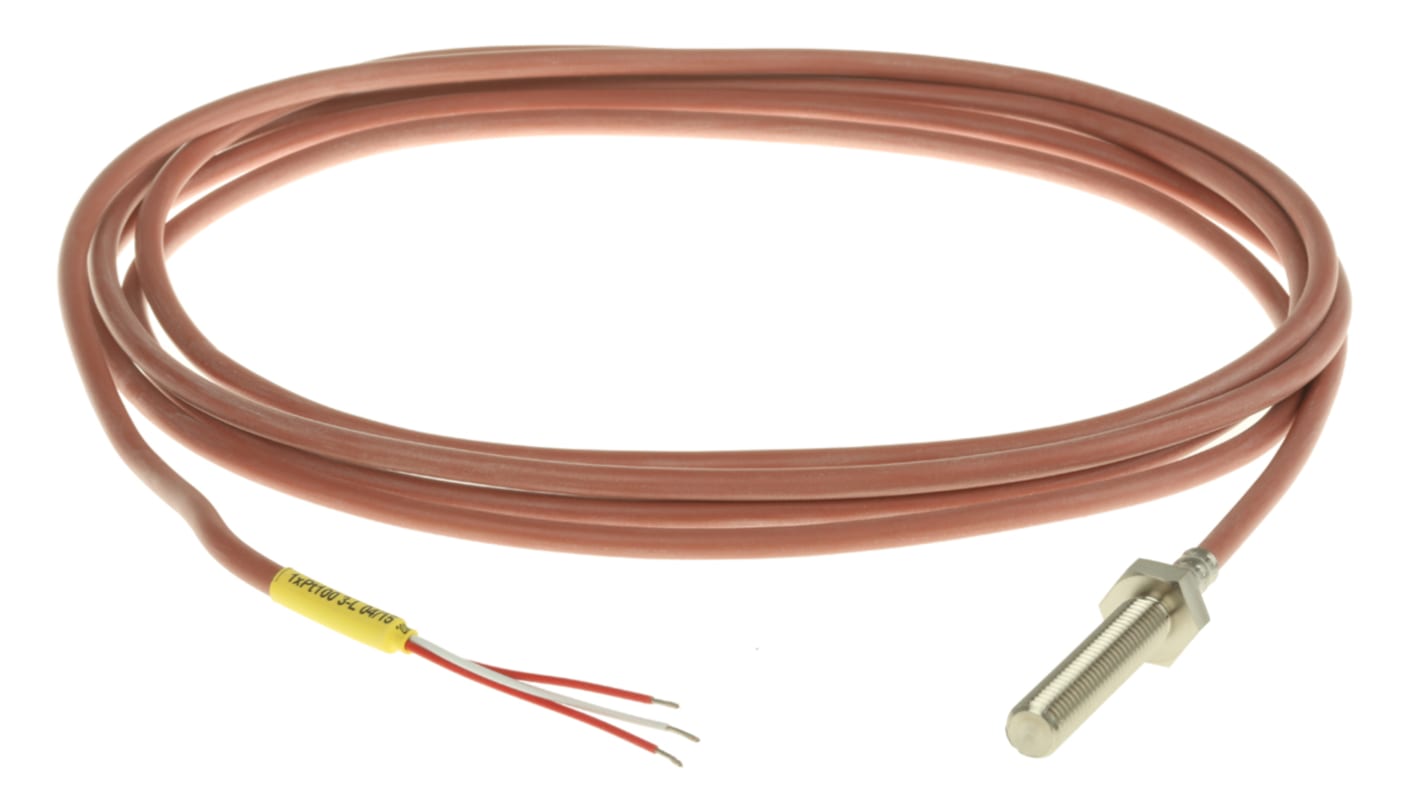

Electrotherm PT100 RTD Sensor, M8 Dia, 40mm Long, M8, F0.3 +200°C Max
- RS 제품 번호:
- 373-6746
- 제조사 부품 번호:
- K4-E-3LS-200
- 제조업체:
- Electrotherm
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩130,754.00
재고있음
- 12 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩130,754.00 |
| 5 + | ₩125,527.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 373-6746
- 제조사 부품 번호:
- K4-E-3LS-200
- 제조업체:
- Electrotherm
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Electrotherm | |
| Sensor Type | PT100 | |
| Probe Length | 40mm | |
| Probe Diameter | M8 | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | +200°C | |
| Termination Type | Cable | |
| Cable Length | 2.5m | |
| Process Connection | M8 | |
| Accuracy | F0.3 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Electrotherm | ||
Sensor Type PT100 | ||
Probe Length 40mm | ||
Probe Diameter M8 | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +200°C | ||
Termination Type Cable | ||
Cable Length 2.5m | ||
Process Connection M8 | ||
Accuracy F0.3 | ||
- COO (Country of Origin):
- DE
Type K4 — High-Temperature Cable Sensor, PT100
Screw-in resistance thermometer
Temperature measurement and monitoring on diverse application sites
Temperature range -50 °C → +200 °C or +400 °C
Anti-kink spring
Stainless steel screw with connection lead
Two or three-conductor circuit
Accuracy class B
2.5 m connection lead
Stainless steel screw M8 x 40 mm (200 °C) or M10 x 40 mm (400 °C)
400 °C version with cable sheathing reinforced with fibre glass
Temperature measurement and monitoring on diverse application sites
Temperature range -50 °C → +200 °C or +400 °C
Anti-kink spring
Stainless steel screw with connection lead
Two or three-conductor circuit
Accuracy class B
2.5 m connection lead
Stainless steel screw M8 x 40 mm (200 °C) or M10 x 40 mm (400 °C)
400 °C version with cable sheathing reinforced with fibre glass
Standards
Base values and limit deviations according to DIN EN 60751
