Jumo RTD Temperature Probe, 6mm Dia, 250mm Long, 3 Wire, Class B +200°C Max
- RS 제품 번호:
- 279-135
- 제조사 부품 번호:
- 902123/10-380-1003-1-6-250/000
- 제조업체:
- Jumo
Subtotal (1 unit)*
₩203,679.20
일시적 품절
- 2026년 1월 07일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩203,679.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 279-135
- 제조사 부품 번호:
- 902123/10-380-1003-1-6-250/000
- 제조업체:
- Jumo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Jumo | |
| Sensor Type | RTD | |
| Probe Length | 250mm | |
| Probe Diameter | 6mm | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | +200°C | |
| Number Of Wires | 3 | |
| Accuracy | Class B | |
| 모두 선택 | ||
|---|---|---|
브랜드 Jumo | ||
Sensor Type RTD | ||
Probe Length 250mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +200°C | ||
Number Of Wires 3 | ||
Accuracy Class B | ||
- COO (Country of Origin):
- DE

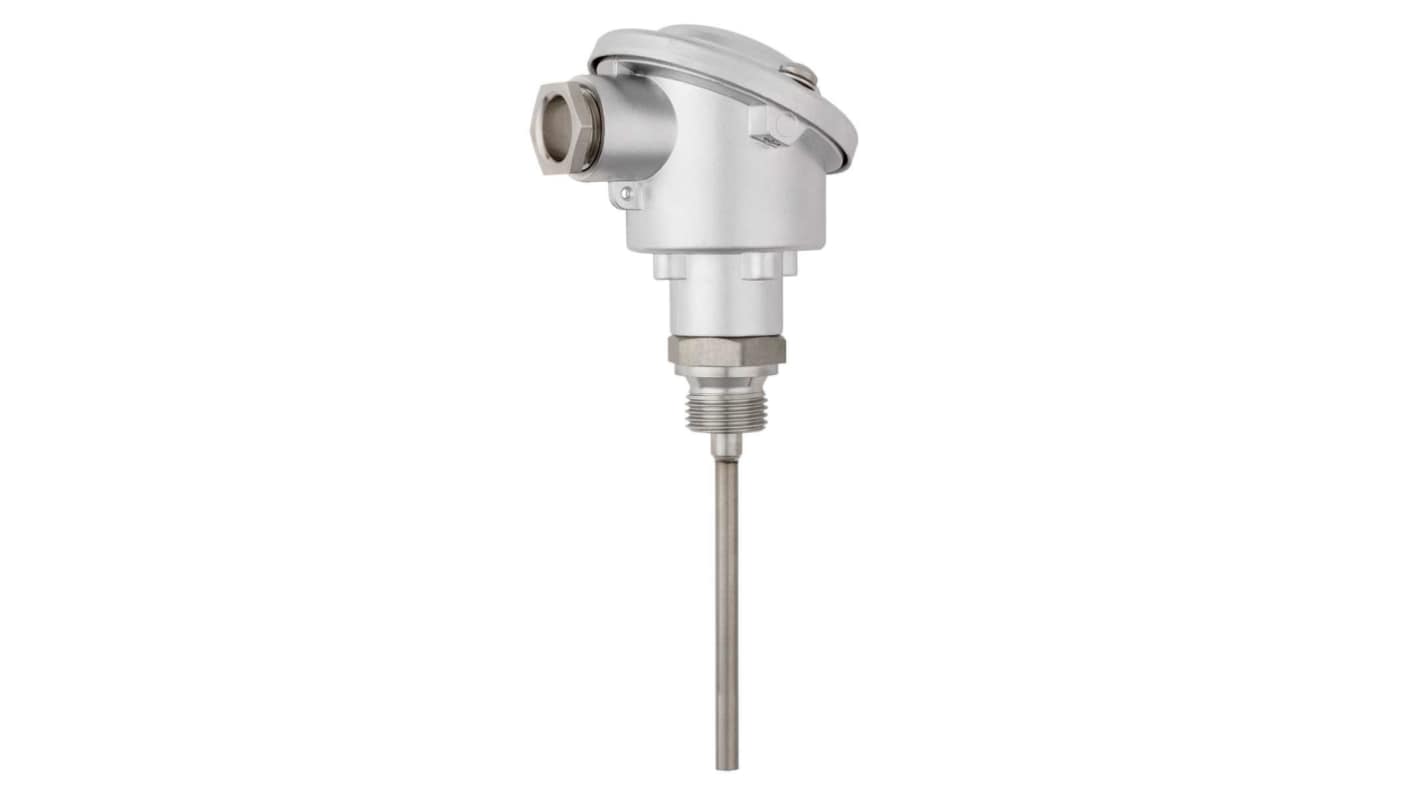

The Jumo Pluggable resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the proven design, a temperature measurement in gaseous and liquid media. With a continuous protection tube made of stainless steel, material 1.4571 and a connection head form B, the resistance thermometer is ideally suited for standard applications in air conditioning and refrigeration technology and in heating and apparatus engineering. The 1x Pt100 resistance thermometer in accordance with DIN EN 60751 (tolerance class B) is designed in two-wire technology and for temperatures from -50 to +200 °C.
The connection head is made of die-cast aluminum and withstands ambient temperatures from -40 to +100°C
The connection head is equipped with a cable gland M20 x 1.5
The protective tube has a dimension of 6 x 250 mm
The connection head is equipped with a cable gland M20 x 1.5
The protective tube has a dimension of 6 x 250 mm
