Duplex Chain

Chain Standards

American standard chains are covered by DIN 8188, ANSI B29.1 and ISO 606. There are 8 versions:

• Simplex

• Duplex

• Triplex

• Quadruplex

• Quintuplex

• Sextuplex

• Octuplex

• Decuplex

Often referred to as ANSI standard, pitch size varies between inch to 3 inches, with the chain links having a smaller pin diameter. They are less wear resistant than European Standard chains except for the 5/8 inch which is larger.

The ANSI standard has a simple numbering system:

• The first number is the pitch size in 1/8 inch, for example 4/8 =

• The second number refers to a roller chain = 0, or a bush chain = 5

• The suffix indicates the number of strands in a chain

모두 선택	제품 정보	값
	브랜드	Renold
	Chain Type	50-2
	Pitch	15.88mm
	Number of Strands	Duplex
	Material	Steel
	Chain Series	Renold (Blue Box)
	Length	3m
	Plate Height	14.6mm
	Roller Diameter	10.16mm
	Chain Width	9.4mm
	Overall Width	38.4mm
	Standard	American
	Weight	2kg/m

	모두 선택
	브랜드 Renold
	Chain Type 50-2
	Pitch 15.88mm
	Number of Strands Duplex
	Material Steel
	Chain Series Renold (Blue Box)
	Length 3m
	Plate Height 14.6mm
	Roller Diameter 10.16mm
	Chain Width 9.4mm
	Overall Width 38.4mm
	Standard American
	Weight 2kg/m

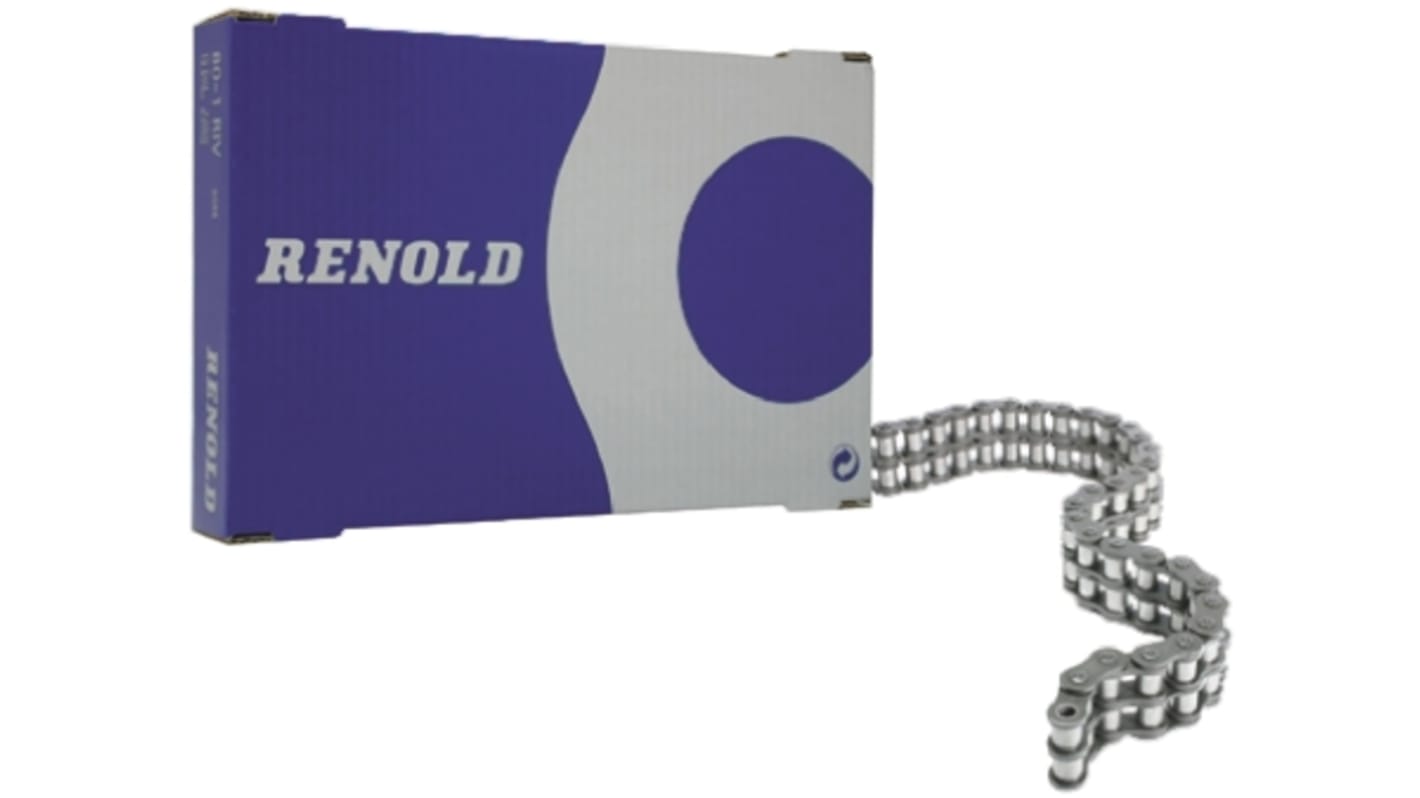

Renold 50-2 Duplex Roller Chain, 3m, Renold (Blue Box)

Duplex Chain
