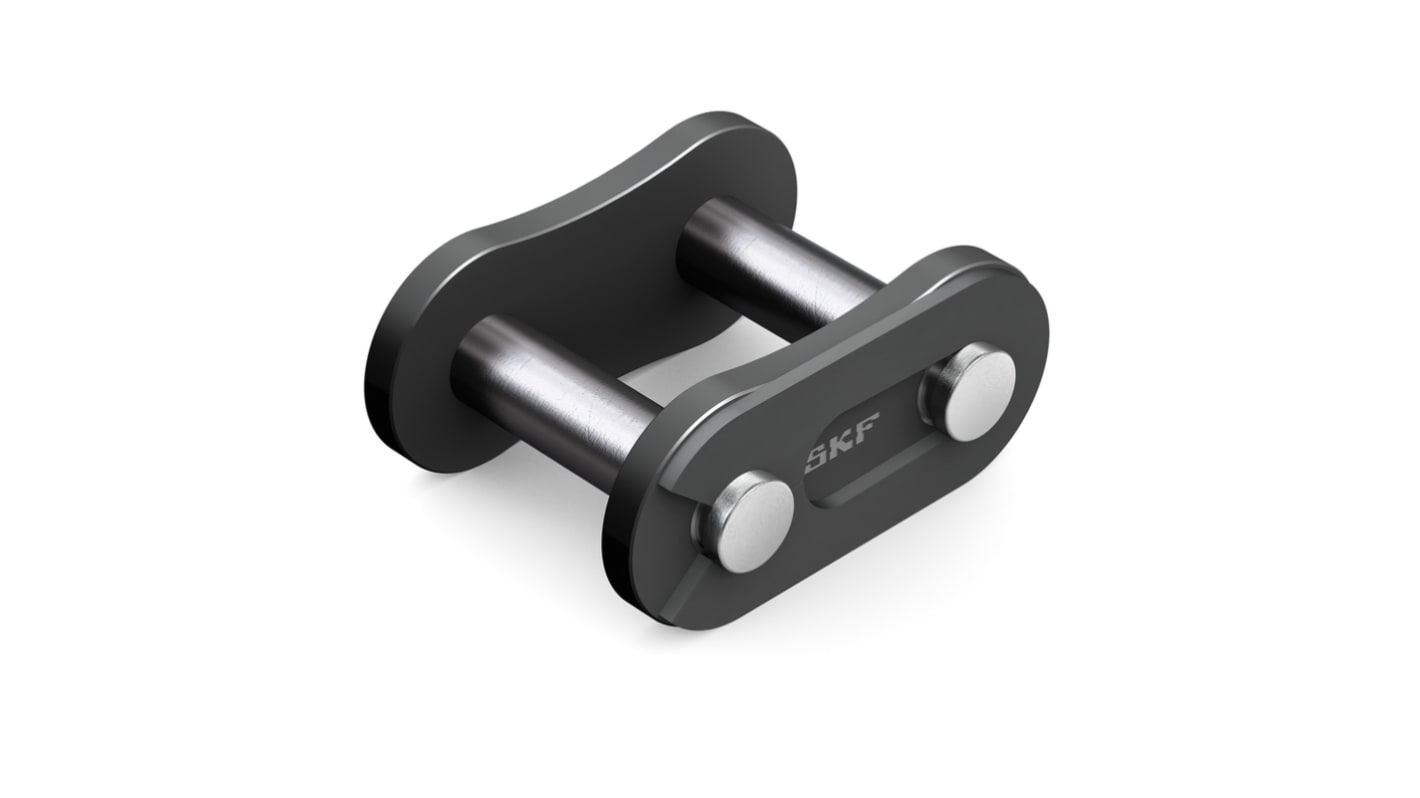

SKF PHC 50-2 Connecting Link Stainless Steel Roller Chain Link

RS 제품 번호:: 267-9688
제조사 부품 번호:: PHC 10B-1SS-C/L
제조업체:: SKF

SKF PHC 50-2 Connecting Link Stainless Steel Roller Chain Link

모든 Roller Chain Links 열람하기

Subtotal (1 unit)*

₩6,100.00

재고있음

추가로 2026년 9월 21일 부터 4 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩6,100.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 267-9688
제조사 부품 번호:: PHC 10B-1SS-C/L
제조업체:: SKF

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SKF
	Product Type	Roller Chain Link
	Chain Type	50-2
	Mechanical Link Type	Connecting Link
	Material	Stainless Steel
	Pitch	15.875mm
	Series	PHC
	Width Between Roller Link Plates	9.65mm
	Pin Type	Transmission Chain Link
	Standards/Approvals	BS
	Roller Diameter	10.16mm

	모두 선택
	브랜드 SKF
	Product Type Roller Chain Link
	Chain Type 50-2
	Mechanical Link Type Connecting Link
	Material Stainless Steel
	Pitch 15.875mm
	Series PHC
	Width Between Roller Link Plates 9.65mm
	Pin Type Transmission Chain Link
	Standards/Approvals BS
	Roller Diameter 10.16mm

Datasheet - PHC 10B-1SS-C/L

로그인하여 CAD 모델 다운로드

COO (Country of Origin):: CN

SKF PHC Series Roller Chain Link, 15.875mm Pitch, 10.16mm Roller Diameter - PHC 10B-1SS-C/L

This roller chain link is a stainless-steel mechanical connector designed to join segments of roller chains in transmission systems. It serves as a removable link for continuous chain assemblies in industrial environments, offering corrosion resistance and compatibility with metric roller chains meeting British standards.

Features and Benefits:

• Stainless-steel construction provides corrosion resistance in harsh environments
• Transmission pin design enables secure load transfer between chain plates
• BS approval ensures conformity with recognised British chain criteria
• PHC series compatibility supports standardised system integration
• Compact plate spacing delivers consistent lateral alignment

Applications

• Suitable for conveyor drives in food-processing plants
• Used with packaging-line transmission chains
• Ideal for outdoor mechanical drives exposed to moisture
• Can be used for light-duty industrial power transmission
• Used for maintenance replacement in metric chain assemblies

What is the pitch specification for this connector?

It is manufactured to a 15.875 mm pitch to match corresponding metric chain links.

What is the roller diameter the link accommodates?

The link interfaces with rollers of 10.16 mm diameter to ensure correct articulation.

How wide is the space between the link plates for fitting?

The internal width between plates measures 9.65 mm to accept compatible rollers and pins.

What type of mechanical link is used for assembly and disassembly?

A connecting-link configuration is provided to enable straightforward assembly and removal during maintenance.

Which approval indicates suitability for UK industry standards?

The component holds BS approval, indicating it meets specified British standards for chain components.
