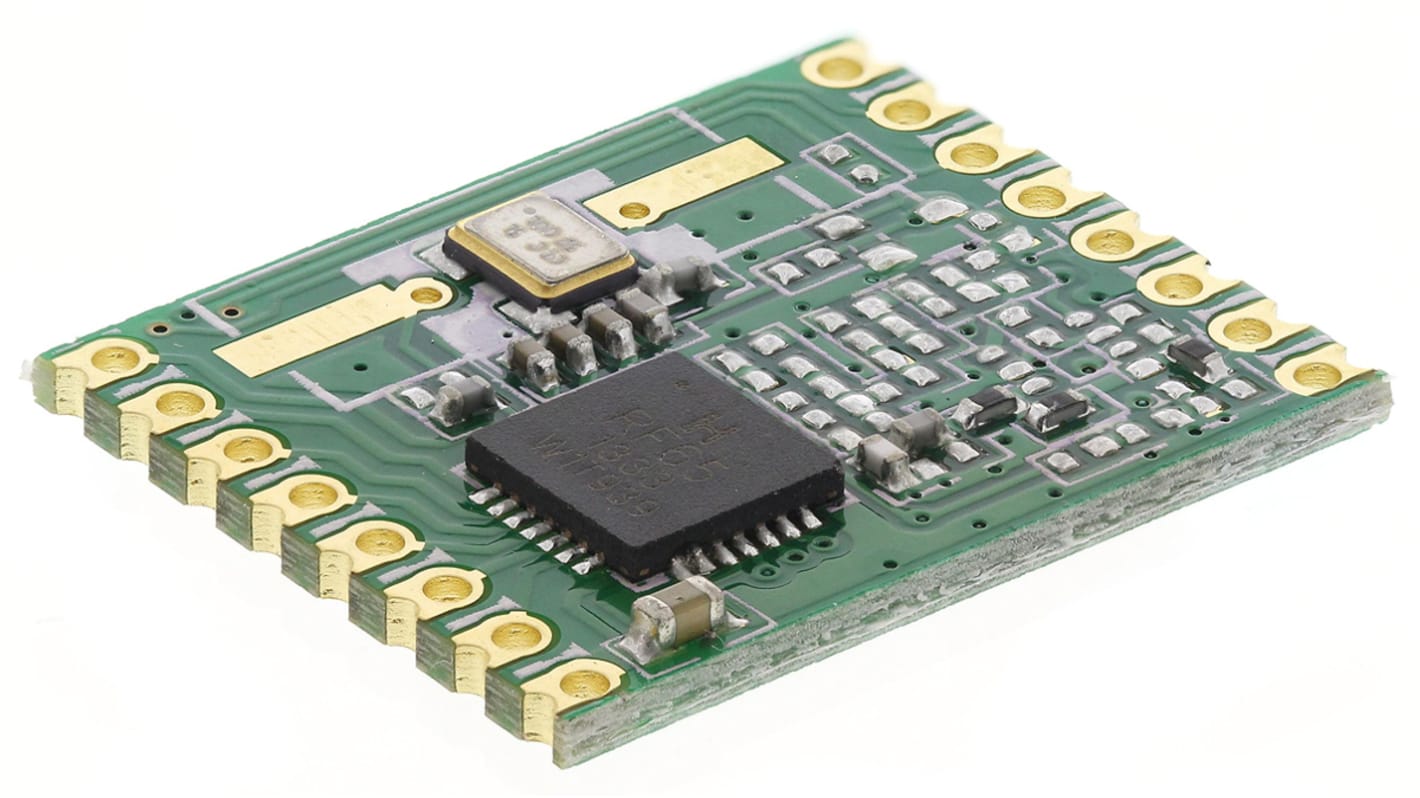

HopeRF RFM65W-433-S2 RF Module GMSK, FSK, GFSK, OOK, MSK 433 MHz 3.6 V

RS 재고 번호:: 793-2014
제조 부품 번호:: RFM65W-433-S2
제조업체:: HopeRF

HopeRF RFM65W-433-S2 RF Module GMSK, FSK, GFSK, OOK, MSK 433 MHz 3.6 V

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩15,585.20

재고있음

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

단위당	한팩당
1 - 4	₩15,585.20
5 - 9	₩15,190.40
10 +	₩14,814.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:: 793-2014
제조 부품 번호:: RFM65W-433-S2
제조업체:: HopeRF

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	HopeRF
	Component Type	Module
	Product Type	RF Module
	Sub Type	Receiver
	Modulation Technique	GMSK, FSK, GFSK, OOK, MSK
	Maximum RF Data Rate	300kbps
	Mount Type	Surface
	Frequency	433MHz
	Receiver Sensitivity	-120dBm
	Interface Type	SPI
	Minimum Supply Voltage	1.8V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Width	16 mm
	Standards/Approvals	No
	Series	RFM65W
	Length	19.7mm
	Height	1.9mm

	모두 선택
	브랜드 HopeRF
	Component Type Module
	Product Type RF Module
	Sub Type Receiver
	Modulation Technique GMSK, FSK, GFSK, OOK, MSK
	Maximum RF Data Rate 300kbps
	Mount Type Surface
	Frequency 433MHz
	Receiver Sensitivity -120dBm
	Interface Type SPI
	Minimum Supply Voltage 1.8V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Width 16 mm
	Standards/Approvals No
	Series RFM65W
	Length 19.7mm
	Height 1.9mm

RFM65W ISM RECEIVER MODULE V1.1

COO (Country of Origin):: CN

RFM65 433MHz ISM Receiver, HopeRF

The RFM65W-433 is a low-cost 433MHz ISM-band receiver module. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM65W offers the advantage of programmable narrow-band and wide-band communication modes. The RFM65W is optimized for low power consumption while offering high sensitivity and channelized operation. In order to better use RFM65W modules, this specification also involves a large number of the parameters and functions of its core RF65 chip, including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM65W modules.

RF Carrier Frequency range: 424 to 510MHz

Modulation: FSK, GFSK, MSK, GMSK or OOK

Sensitivity: -120dBm at 1.2kbps

High Selectivity from 16-tap FIR Channel Filter

Linearity: IIP3 = -18dBm, IIP2 = +35dBm

80dB Blocking Immunity, no Image Frequency response

Low current: Rx = 16mA, 100nA register retention

Constant RF performance over voltage range of module

FSK Data Rate: 300kbps

Fully integrated synthesizer with a resolution of 61Hz

Built-in Bit Synchronizer performing Clock Recovery

Incoming Sync Word Recognition

RSSI: 115dB+ Dynamic Range

Automatic RF Sense with ultra-fast AFC

Packet engine with CRC, AES-128 encryption and 66-byte FIFO

Built-in temperature sensor and Low Battery indicator

SPI serial data interface

Power supply: +1.8 to +3.6Vdc

Operating temperature range: -20 to +70°C

Dimensions: 19.7 x 16 x 1.9mm

Applications: Automated Meter Reading, Wireless Sensor Networks, Home & Building Automation, Wireless Alarm & Security Systems, Industrial Monitoring & Control, Local communication for the Internet-of-Things (IoT)
