RF Solutions ZETAPLUS20-8D RF Module FM 868 MHz 3.6 V

RS 재고 번호:: 264-7834
제조 부품 번호:: ZETAPLUS20-8D
제조업체:: RF Solutions

RF Solutions ZETAPLUS20-8D RF Module FM 868 MHz 3.6 V

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩29,215.20

재고있음

102 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

단위당	한팩당
1 - 9	₩29,215.20
10 - 24	₩27,748.80
25 - 49	₩26,395.20
50 - 99	₩26,000.40
100 +	₩25,492.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:: 264-7834
제조 부품 번호:: ZETAPLUS20-8D
제조업체:: RF Solutions

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RF Solutions
	Sub Type	Wireless & RF Module
	Component Type	Transceiver
	Product Type	RF Module
	Modulation Technique	FM
	Maximum RF Data Rate	500kbps
	Mount Type	Surface
	Frequency	868MHz
	Maximum Output Power	20dBm
	Receiver Sensitivity	-132dBm
	Interface Type	SPI, UART
	Minimum Supply Voltage	3.8V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS 2011/65/EU
	Height	11.75mm
	Length	16.5mm
	Width	19.25 mm

	모두 선택
	브랜드 RF Solutions
	Sub Type Wireless & RF Module
	Component Type Transceiver
	Product Type RF Module
	Modulation Technique FM
	Maximum RF Data Rate 500kbps
	Mount Type Surface
	Frequency 868MHz
	Maximum Output Power 20dBm
	Receiver Sensitivity -132dBm
	Interface Type SPI, UART
	Minimum Supply Voltage 3.8V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS 2011/65/EU
	Height 11.75mm
	Length 16.5mm
	Width 19.25 mm

Datasheet - ZETAPLUS20-8D

COO (Country of Origin):: GB

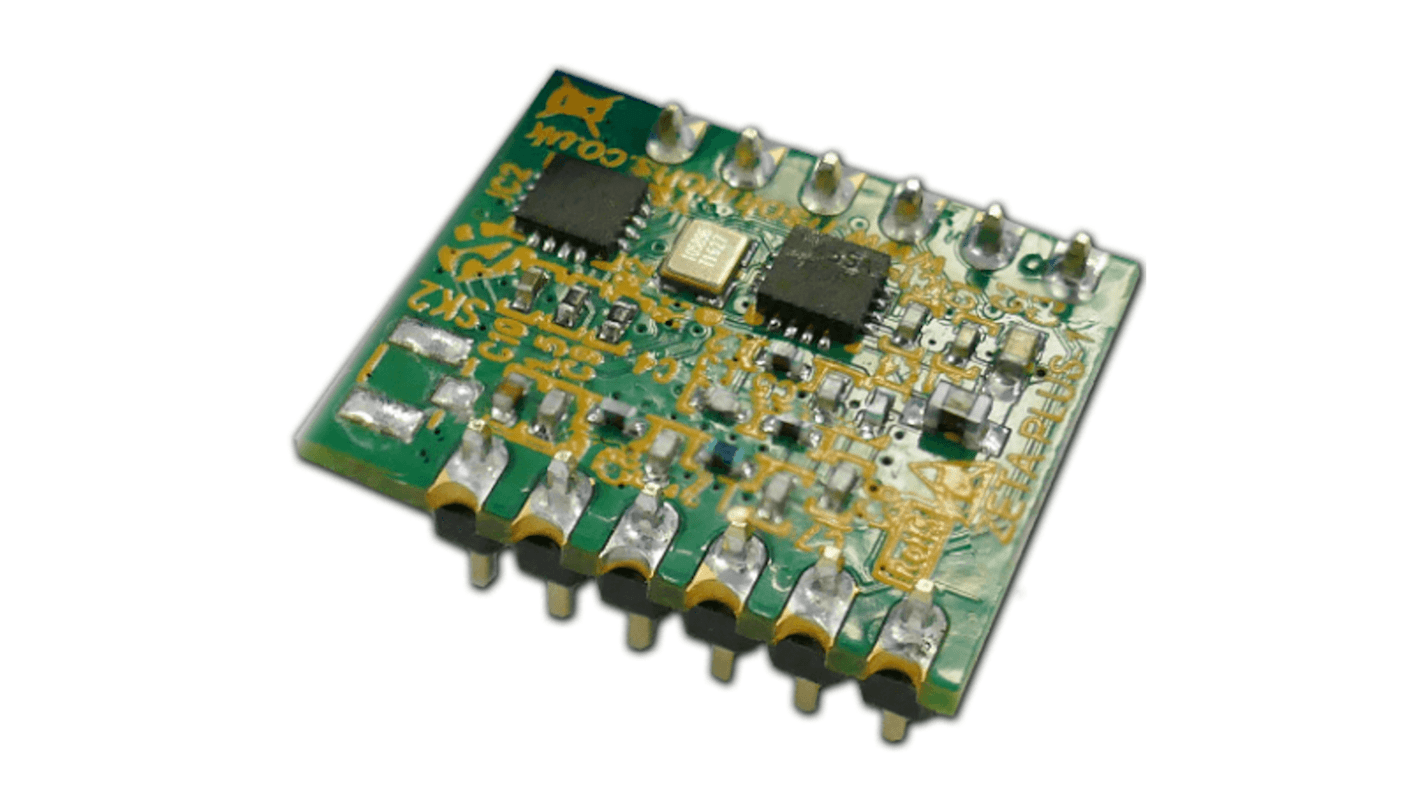

The RF Solutions ZETAPLUS20 Smart transceiver module makes a radio data link easy. With connection to power, comms and antenna, the user can start sending and receiving data immediately and no other external components are required. It is based on silicon labs Si4468 chipset. This transceivers are used for home automation, telemetry, keyless entry, health monitors, RF data comms, etc.

Up to 4 km range

User selectable data payload

Low power consumption
