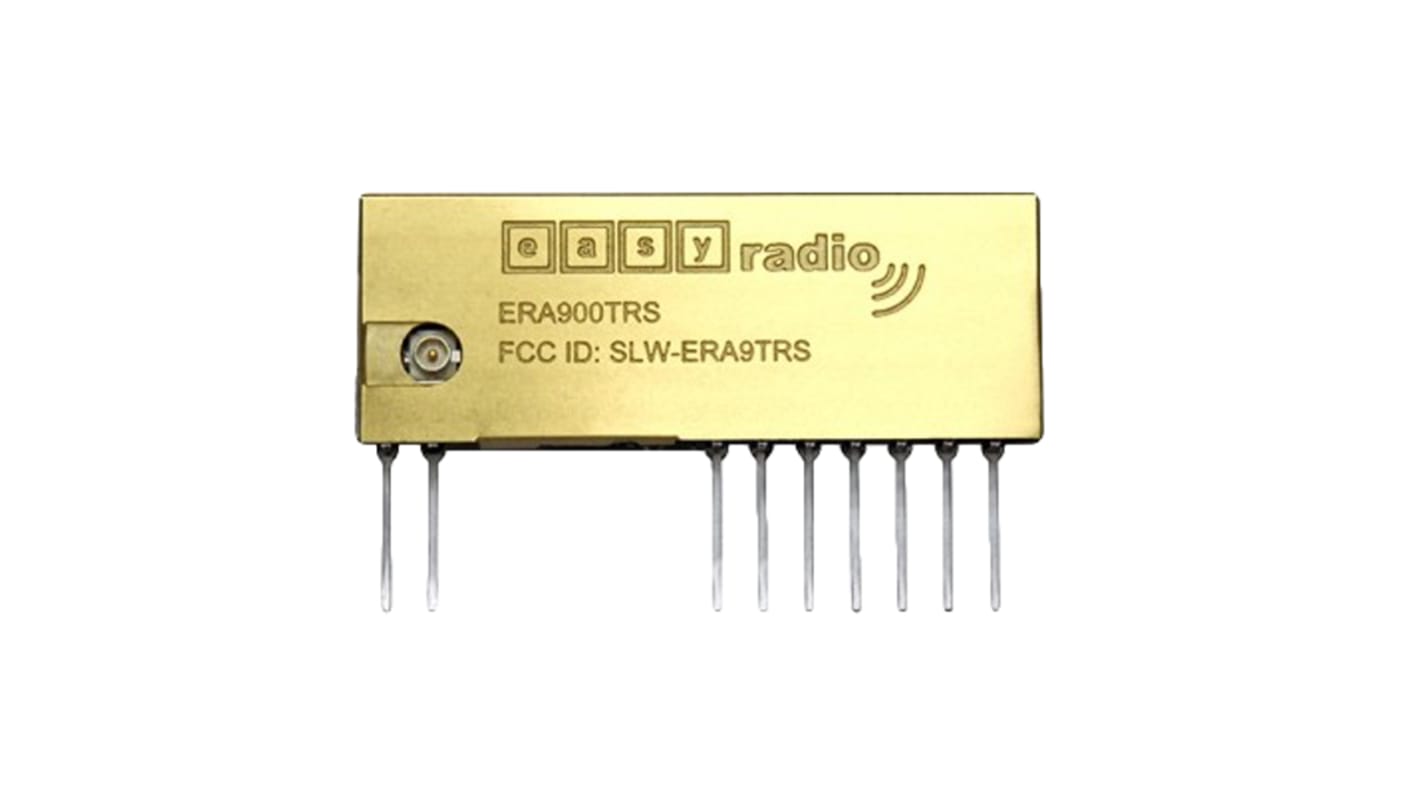

LPRS ERA900TRS-FCC RF Module FSK, ASK 928 MHz 5.5 V

RS 제품 번호:: 136-7687
제조사 부품 번호:: ERA900TRS-FCC
제조업체:: LPRS

LPRS ERA900TRS-FCC RF Module FSK, ASK 928 MHz 5.5 V

Subtotal (1 Box of 1 unit)*

₩75,827.92

재고있음

86 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Box(es)	Per Box
1 +	₩75,827.92

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 136-7687
제조사 부품 번호:: ERA900TRS-FCC
제조업체:: LPRS

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	LPRS
	Component Type	Module
	Sub Type	Transceiver
	Product Type	RF Module
	Modulation Technique	FSK, ASK
	Frequency	928MHz
	Maximum Output Power	5mW
	Mount Type	Through Hole
	Interface Type	RS232
	Minimum Supply Voltage	2.5V
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	38mm
	Width	4 mm
	Series	ERA900TRS-FCC
	Standards/Approvals	No
	Height	14mm

	모두 선택
	브랜드 LPRS
	Component Type Module
	Sub Type Transceiver
	Product Type RF Module
	Modulation Technique FSK, ASK
	Frequency 928MHz
	Maximum Output Power 5mW
	Mount Type Through Hole
	Interface Type RS232
	Minimum Supply Voltage 2.5V
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 38mm
	Width 4 mm
	Series ERA900TRS-FCC
	Standards/Approvals No
	Height 14mm

ERA900TRS easyRadio Transceiver Module Datasheet

eRAx00TRS easyRadio Advanced Transceiver Modules

The eRAx00TRS is a complete system-on-module that combines a high performance very low power RF ISM-Band transceiver, a microcontroller and a voltage regulator. Two modules make a bi-directional half-duplex serial data communication link based on the easyRadio protocol with 16-bit encryption and anti-crosstalk software. Raw data modes offer the user a self-coding system which can be set to interface to any other raw data module using FSK or ASK modulation.

• RF Carrier Frequency bands: 433MHz (eRA400TRS RS 783-9625), 868/915MHz (eRA900TRS RS 783-9622 & 136-7687

• Programmable Channel Bandwidth: 12.5kHz to 150kHz

• Up to 132 channels

• RF Output Power: +10dBm @ 434MHz, +7dBm @ 868MHz, 0dBm @ 915MHz

• Modulation: FSK (ASK available in Raw Data Mode)

• Receiver Sensitivity: -107dBm @ 19.2Kbps, -112dBm @ 4.8Kbps, -117dBm @ 2.4Kbps

• OTA Data Rate: 1200bps to 38400bps with Manchester encoding

• Tx/Rx buffer: 180bytes

• Digital received signal strength indication (RSSI)

• Communication: serial UART with RTS/CTS flow control

• Host Data Rate: 2400bps to 115200bps

• Temporary channel/power level selection capability

• On-board temperature sensor may be used by the host system

• Compatible with most 50Ω antennas

• Power supply: +2.5V to +5.5Vdc

• Operating temperature range: -40 to +85°C

• Dimensions: 38 x 14 x 4mm

• Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Wireless Modules - Low Power Radio Solutions

Approvals

eRA900TRS (RS 783-9622) and eRA900TRS-FCC (RS 136-7687) are both FCC approved.
