Microchip RF Transmitter, 10-Pin MSOP
- RS 제품 번호:
- 177-0483
- 제조사 부품 번호:
- MICRF112YMM
- 제조업체:
- Microchip

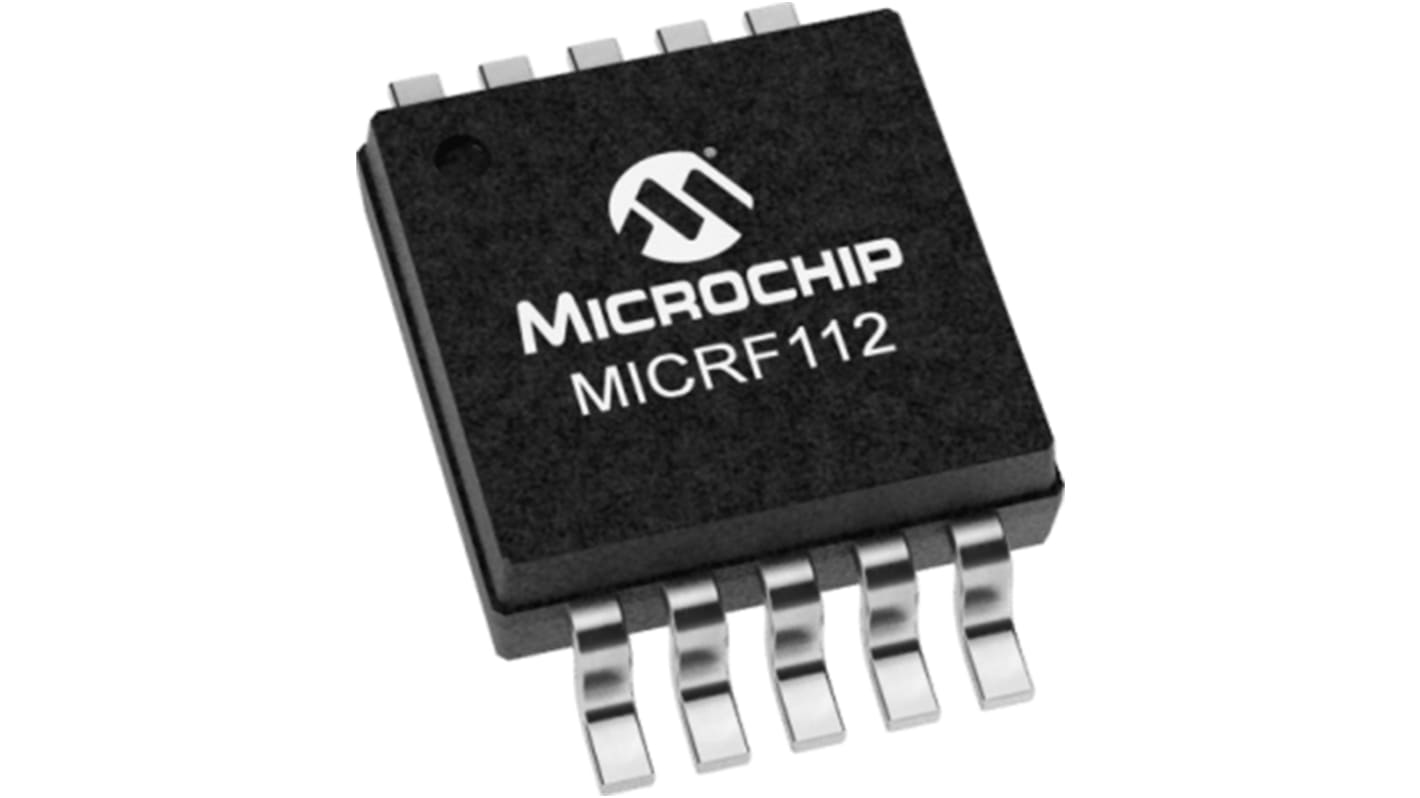

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tube of 100 units)*
₩97,890.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 100 - 400 | ₩978.90 | ₩97,812.00 |
| 500 + | ₩959.40 | ₩95,842.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 177-0483
- 제조사 부품 번호:
- MICRF112YMM
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | RF Transmitter | |
| Modulation Technique | FSK, ASK | |
| Sub Type | RF Transmitter | |
| Data Rate | 1kbps | |
| Package Type | MSOP | |
| Pin Count | 10 | |
| Mount Type | Surface | |
| Operating Band 1 Frequency | 450MHz | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.92mm | |
| Length | 3mm | |
| Standards/Approvals | No | |
| Series | MICRF112 | |
| Automotive Standard | AEC-Q100 | |
| Number of Operating Bands | 1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type RF Transmitter | ||
Modulation Technique FSK, ASK | ||
Sub Type RF Transmitter | ||
Data Rate 1kbps | ||
Package Type MSOP | ||
Pin Count 10 | ||
Mount Type Surface | ||
Operating Band 1 Frequency 450MHz | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.92mm | ||
Length 3mm | ||
Standards/Approvals No | ||
Series MICRF112 | ||
Automotive Standard AEC-Q100 | ||
Number of Operating Bands 1 | ||
The MICRF112 is a high performance, easy to use, single chip ASK / FSK Transmitter IC for remote wireless applications in the 300 to 450MHz frequency band. This transmitter IC is a true "data-in, antenna-out" monolithic device. MICRF112 is high performance in three areas: power delivery, operating voltage, and operating temperature. In terms of power, the MICRF112 is capable of delivering +10 dBm into a 50Ω load.
Complete UHF transmitter
Frequency range 300 MHz to 450 MHz
Data rates up to 50 kbps ASK,10 kbps FSK
Output Power to 10 dBm
Low external part count
Low stand by current <1μA
Complete UHF transmitter
Frequency range 300 MHz to 450 MHz
Data rates upto 50 kbps ASK, 10 kbps FSK
Output Power to 10 dBm
Low external part count
Low stand by current<1μA
Low voltage operation (downto1.8V)
Operate with crystals or ceramic resonators
Small form factor:10-pin MSOP (3 x 4.9 mm) and 10-pin Ultra-Thin DFN (2 x 2 x 0.4 mm)
