대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩95,276.52
재고있음
- 23 개 단위 배송 준비 완료
- 추가로 2026년 8월 24일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩95,276.52 |
| 10 + | ₩78,587.76 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 282-3268
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | RF Attenuator | |
| Interface Type | N Plug to N Socket | |
| Impedance | 50Ω | |
| Maximum Frequency | 3GHz | |
| Body Plating | Nickel | |
| Contact Plating | Gold | |
| Contact Material | Bronze | |
| Low Power | Yes | |
| Minimum Frequency | 3GHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Attenuation | 10dB | |
| Orientation | Straight | |
| Connector Type | Type N | |
| Maximum Operating Temperature | 85°C | |
| Connector Gender A | Male | |
| Standards/Approvals | RoHS, CE | |
| Series | LX | |
| Connector Gender B | Female | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type RF Attenuator | ||
Interface Type N Plug to N Socket | ||
Impedance 50Ω | ||
Maximum Frequency 3GHz | ||
Body Plating Nickel | ||
Contact Plating Gold | ||
Contact Material Bronze | ||
Low Power Yes | ||
Minimum Frequency 3GHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Attenuation 10dB | ||
Orientation Straight | ||
Connector Type Type N | ||
Maximum Operating Temperature 85°C | ||
Connector Gender A Male | ||
Standards/Approvals RoHS, CE | ||
Series LX | ||
Connector Gender B Female | ||
- COO (Country of Origin):
- CN

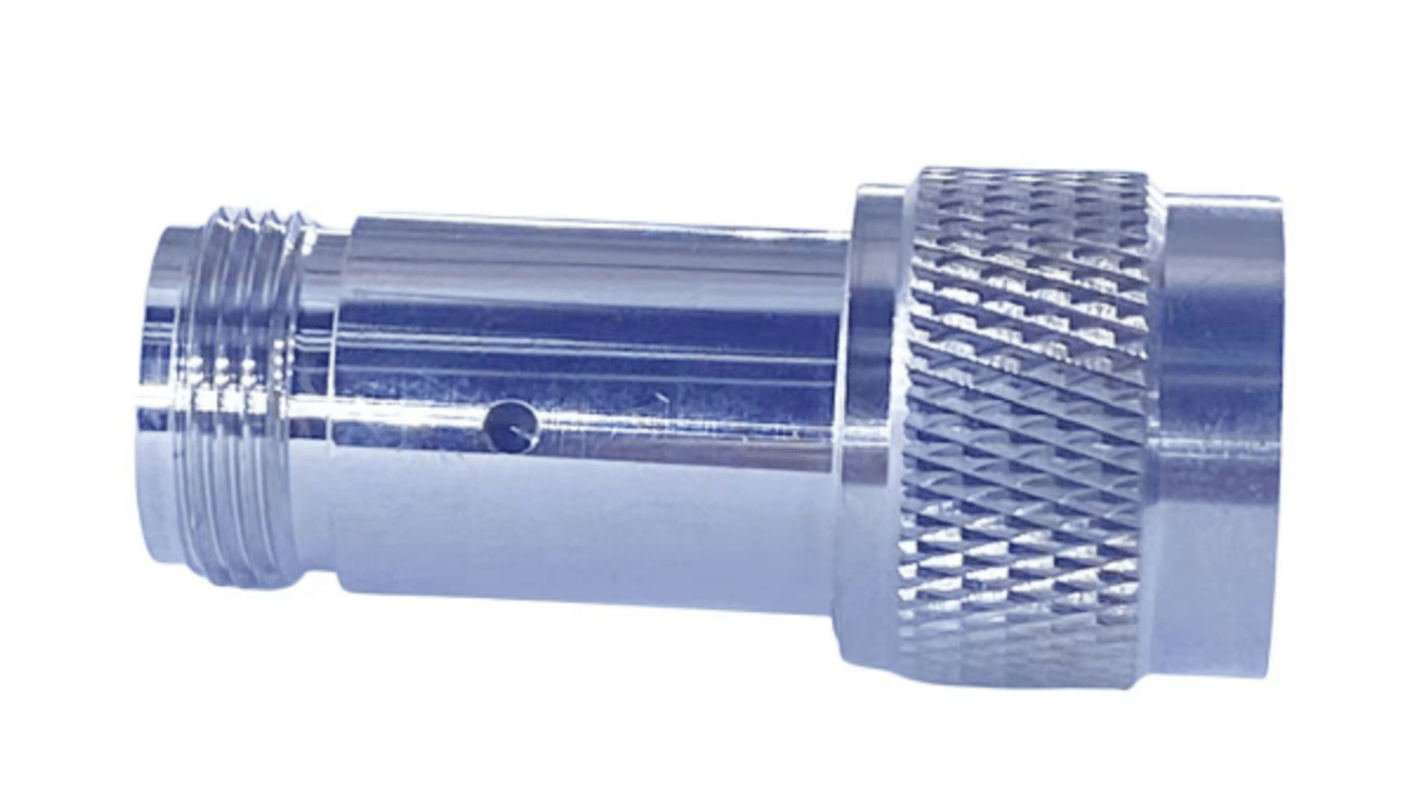

RS PRO 50 Ω Cable Mount N Type Attenuator Connector, 3 GHz
A straight angle cable mount N type RF attenuator connector suitable for use in a wide range of applications including broadcasting systems, test equipment and communication systems. ;The attenuator is well suited for use with cable TV systems for control of output level, amplifier input or branch attenuation.;Constructed from hardwearing and corrosion resistant Nickel plated Copper the N connector features PTFE insulation with Gold plated Bronze Copper contacts for maximum repeated efficiency.
Features and Benefits
10dB RF Attenuator;0 to 3GHz Frequency;1W power;N to N connector;Cable mount;Nickel plated Copper body;Gold plated Bronze Copper contacts;45mm in length;Operating temperature range of -40°C to +85°C
Standards and Approvals: IEC61169-16, CE, ROHS
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
