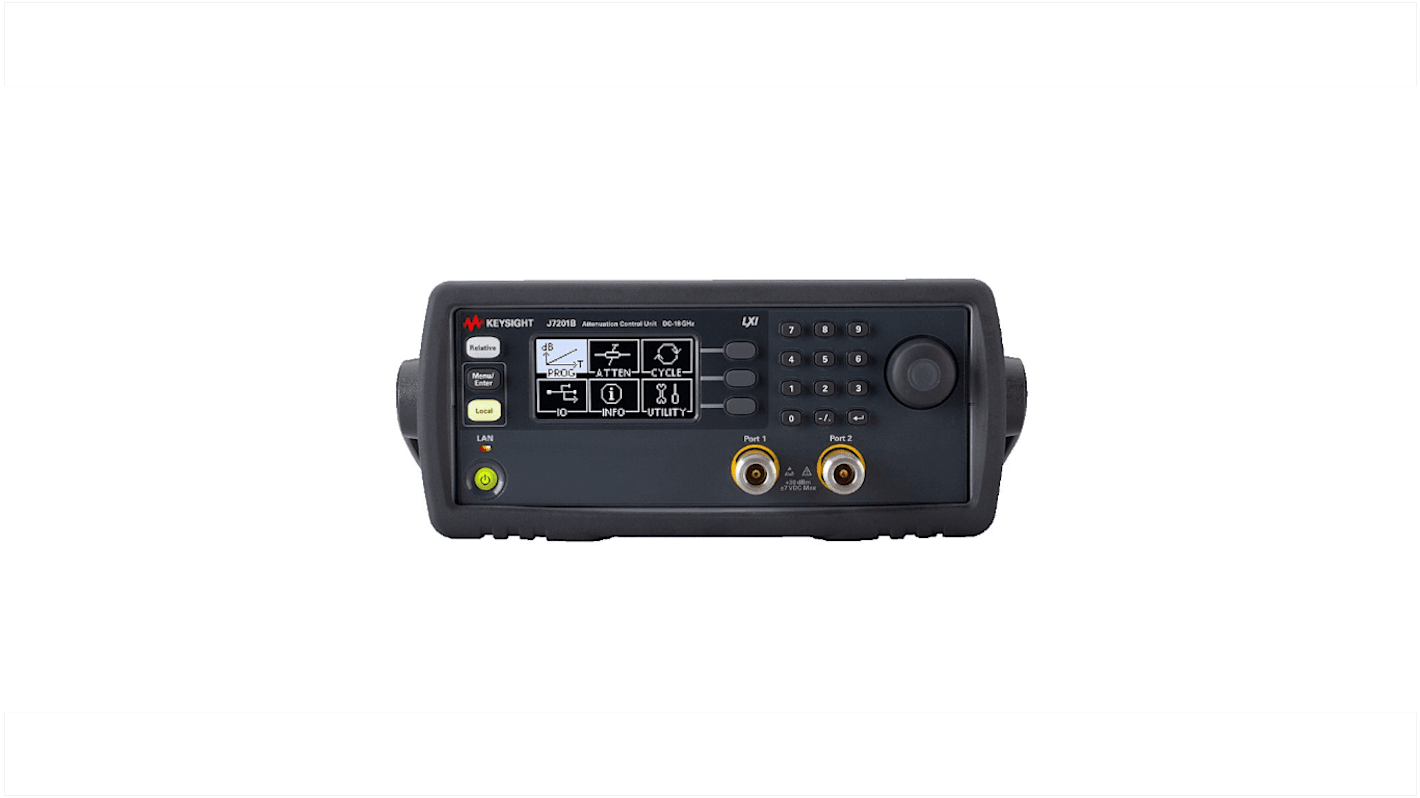

Keysight Technologies J7201B RF Attenuation Controller, SMA Connector, 121 dB Max, 18 GHz Max
- RS Stock No.:
- 223-7223
- Mfr. Part No.:
- J7201B-002
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
₩21,542,344.72
일시적 품절
- 2026년 5월 14일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 + | ₩21,542,344.72 |
*price indicative
- RS Stock No.:
- 223-7223
- Mfr. Part No.:
- J7201B-002
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | Keysight Technologies | |
| Maximum Attenuation | 121dB | |
| Product Type | RF Attenuation Controller | |
| Maximum Insertion Loss | 5dB | |
| Maximum Frequency | 18GHz | |
| Connector Type | SMA | |
| Dimensions | 232.2 x 385.8 x 103.8 mm | |
| Weight | 3.8kg | |
| Height | 103.8mm | |
| Length | 232.2mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 385.8 mm | |
| Model Number | J7201B | |
| Select all | ||
|---|---|---|
브랜드 Keysight Technologies | ||
Maximum Attenuation 121dB | ||
Product Type RF Attenuation Controller | ||
Maximum Insertion Loss 5dB | ||
Maximum Frequency 18GHz | ||
Connector Type SMA | ||
Dimensions 232.2 x 385.8 x 103.8 mm | ||
Weight 3.8kg | ||
Height 103.8mm | ||
Length 232.2mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Width 385.8 mm | ||
Model Number J7201B | ||
- COO (Country of Origin):
- MY
Keysight Technologies RF Attenuation Controller, 0 to 121dB Attenuation Range, 20ms Switching Speed - J7201 Series - J7201B-002
Want to tone down the strength of your radio frequency signals? Choose this RF attenuation controller from Keysight Technologies. This versatile unit lets you attenuate transmissions from your signal generator in a wide range of 0 to 121dB, so it's a versatile piece of kit. Thanks to its built-in keypad and rotary control knob, it's a cinch to adjust the settings. Harsh work areas are no match for this hardy product, thanks to its wide operating temperature range between 0°C and +50°C.
Features & Benefits
• Broad supply voltage range between 100 and 240V AC for compatibility with low-power electrical systems
• Rapid switching speed of 20ms for quick results
• GPIB, USB and LAN connectivity allow for hassle-free remote control using a web interface
• Step intervals of 1, 5 and 10dB for precise adjustment
Applications
• Automatic test equipment
• Manufacturing industry
• Research and development
How reliable is this unit?
This RF attenuation controller has a long operating lifespan of five million cycles, so you can count on it for the long haul.
Note
Manufacturer’s Warranty
