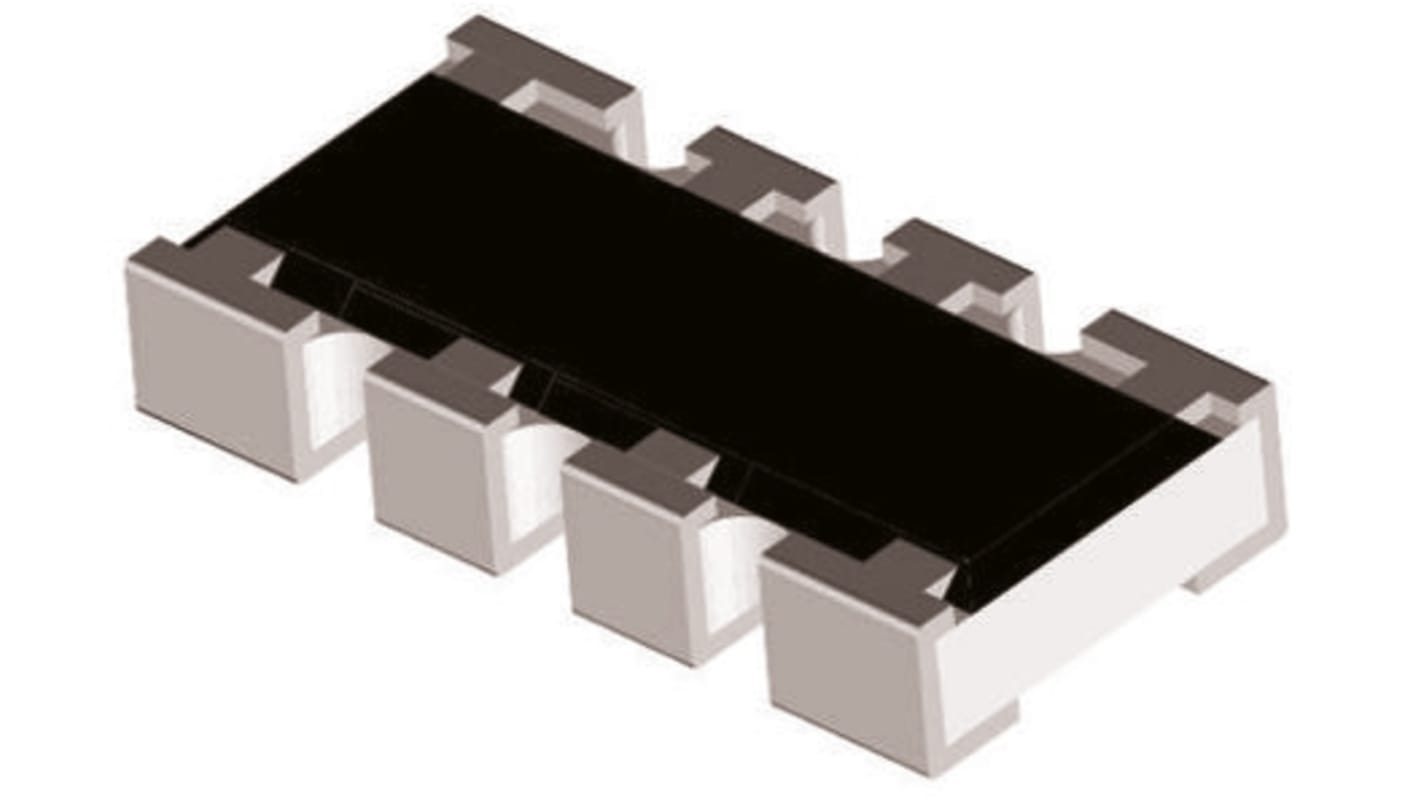

Vishay, ACAS 0612 - Precision 20 kΩ ISOL Resistor Array, 4 Resistors, 0.3 W total, 0612, Convex
- RS 제품 번호:
- 684-5837
- 제조사 부품 번호:
- ACASA1002E2002P100
- 제조업체:
- Vishay
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 684-5837
- 제조사 부품 번호:
- ACASA1002E2002P100
- 제조업체:
- Vishay
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Vishay | |
| Resistance | 20kΩ | |
| Product Type | Resistor Array | |
| Number of Resistors | 4 | |
| Resistor Type | Array | |
| Package/Case | 0612 | |
| Power Rating | 0.3W | |
| Termination Style | Convex | |
| Case Style | Moulded | |
| Power Rating per Resistor | 0.1W | |
| Circuit Designator | ISOL | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.55mm | |
| Depth | 1.6mm | |
| Length | 3.2mm | |
| Series | ACAS 0612 - Precision | |
| Number of Terminals | 8 | |
| Temperature Coefficient | ±25 ppm/°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Vishay | ||
Resistance 20kΩ | ||
Product Type Resistor Array | ||
Number of Resistors 4 | ||
Resistor Type Array | ||
Package/Case 0612 | ||
Power Rating 0.3W | ||
Termination Style Convex | ||
Case Style Moulded | ||
Power Rating per Resistor 0.1W | ||
Circuit Designator ISOL | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.55mm | ||
Depth 1.6mm | ||
Length 3.2mm | ||
Series ACAS 0612 - Precision | ||
Number of Terminals 8 | ||
Temperature Coefficient ±25 ppm/°C | ||
ACAS 0612 Precision Thin Film Chip Resistor Array
Combine the proven reliability of precision thin film chip resistor products with the advantages of chip resistor arrays
A small package enables the design of high density circuits in combination with reduction of assembly costs
Defined tolerance matching and TCR tracking make this product perfectly suited for applications with outstanding requirements towards stable fixed resistor ratios
Applications include, Precision analogue circuits, Voltage divider, Feedback circuits and Signal conditioning
