Schneider Electric ZBRRH Remote Control Kit,2405 MHz 100 m

RS 제품 번호:: 288-1492
제조사 부품 번호:: ZBRRH
제조업체:: Schneider Electric

Schneider Electric ZBRRH Remote Control Kit,2405 MHz 100 m

Subtotal (1 unit)*

₩209,449.50

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩209,449.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:: 288-1492
제조사 부품 번호:: ZBRRH
제조업체:: Schneider Electric

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Frequency	2405MHz
	Product Type	Remote Control Kit
	Modulation	O QPSK
	Number of Channels	1
	Nominal Supply Voltage	24 V dc
	Minimum Operating Temperature	-40°C
	Depth	75mm
	Standards/Approvals	EN/IEC 60947-5-1
	Height	108mm
	Width	36mm
	Range	100 m
	Better World Product	Yes

	모두 선택
	브랜드 Schneider Electric
	Frequency 2405MHz
	Product Type Remote Control Kit
	Modulation O QPSK
	Number of Channels 1
	Nominal Supply Voltage 24 V dc
	Minimum Operating Temperature -40°C
	Depth 75mm
	Standards/Approvals EN/IEC 60947-5-1
	Height 108mm
	Width 36mm
	Range 100 m
	Better World Product Yes

Datasheet - ZBRRH

로그인하여 CAD 모델 다운로드

COO (Country of Origin):: ID

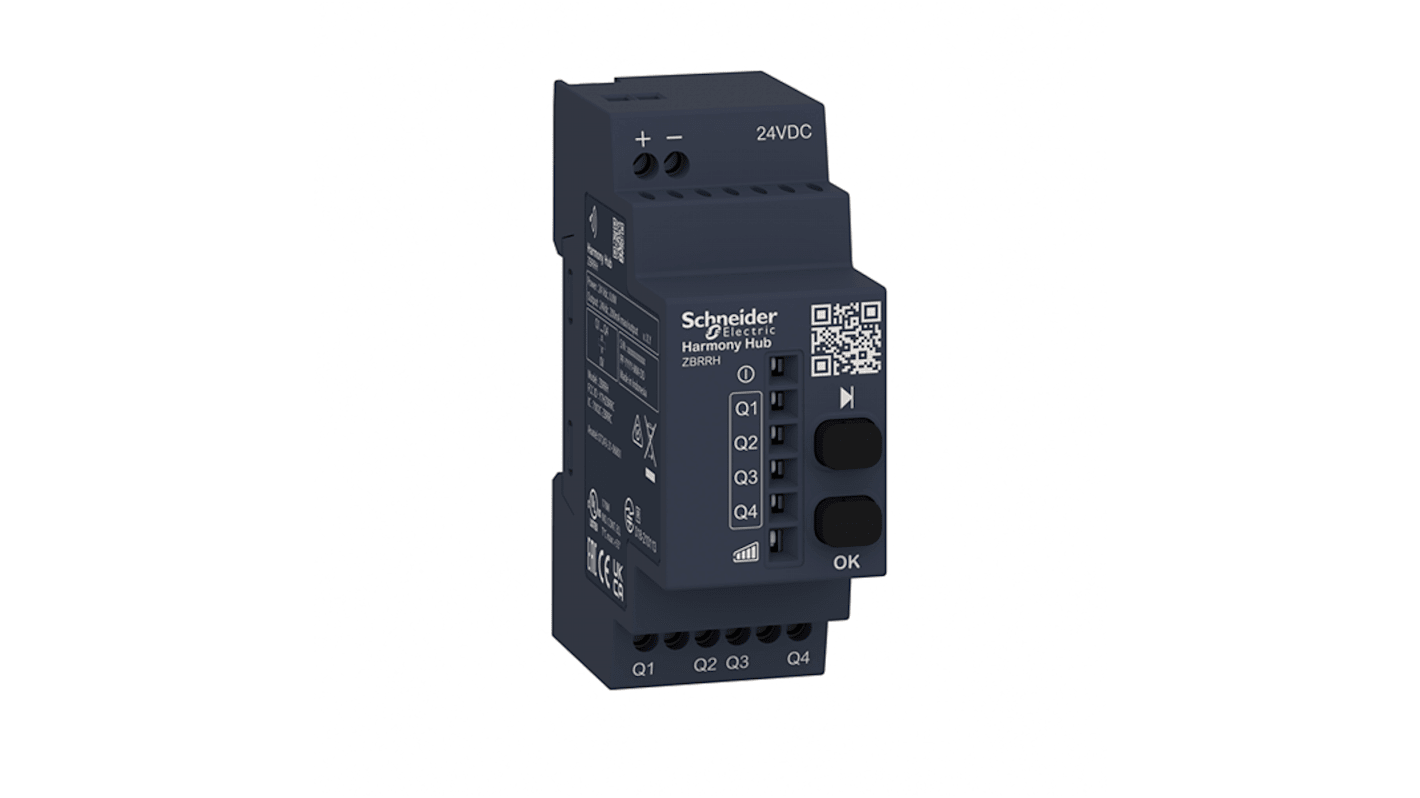

The Schneider Electric Wireless receiver is a versatile device designed for seamless integration with Harmony hub applications. With PNP output type and four PNP output contacts, it offers reliable performance. The device operates at a transmission frequency of 2405 MHz, making it ideal for various industrial applications.

Bistable function module with a quick 2 ms reset time

Maximum sensing distance of 100 M in a free field

Conforms to various communication port protocols

Designed for easy electrical connection with different conductor cable sizes

Features multiple LEDs for status indication and relay operation
