RF Solutions HORNETPRO-8S2M Remote Control System,868 MHz 200 m
- RS 제품 번호:
- 181-3273
- 제조사 부품 번호:
- HORNETPRO-8S2M
- 제조업체:
- RF Solutions
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩164,892.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩164,892.00 |
| 5 - 24 | ₩160,758.00 |
| 25 + | ₩154,342.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-3273
- 제조사 부품 번호:
- HORNETPRO-8S2M
- 제조업체:
- RF Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RF Solutions | |
| Product Type | Remote Control System | |
| Frequency | 868MHz | |
| Modulation | FM | |
| Number of Channels | 14 | |
| Number of Key Fob Buttons | 2 | |
| Nominal Supply Voltage | 230 V ac, 12 to 30 V ac/dc | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Range | 200 m | |
| Width | 54mm | |
| Standards/Approvals | RED 2014/53/EU, RoHS 2002/95/EC, WEEE 2002/96/EC | |
| Depth | 112mm | |
| Height | 42mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RF Solutions | ||
Product Type Remote Control System | ||
Frequency 868MHz | ||
Modulation FM | ||
Number of Channels 14 | ||
Number of Key Fob Buttons 2 | ||
Nominal Supply Voltage 230 V ac, 12 to 30 V ac/dc | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Range 200 m | ||
Width 54mm | ||
Standards/Approvals RED 2014/53/EU, RoHS 2002/95/EC, WEEE 2002/96/EC | ||
Depth 112mm | ||
Height 42mm | ||
- COO (Country of Origin):
- GB

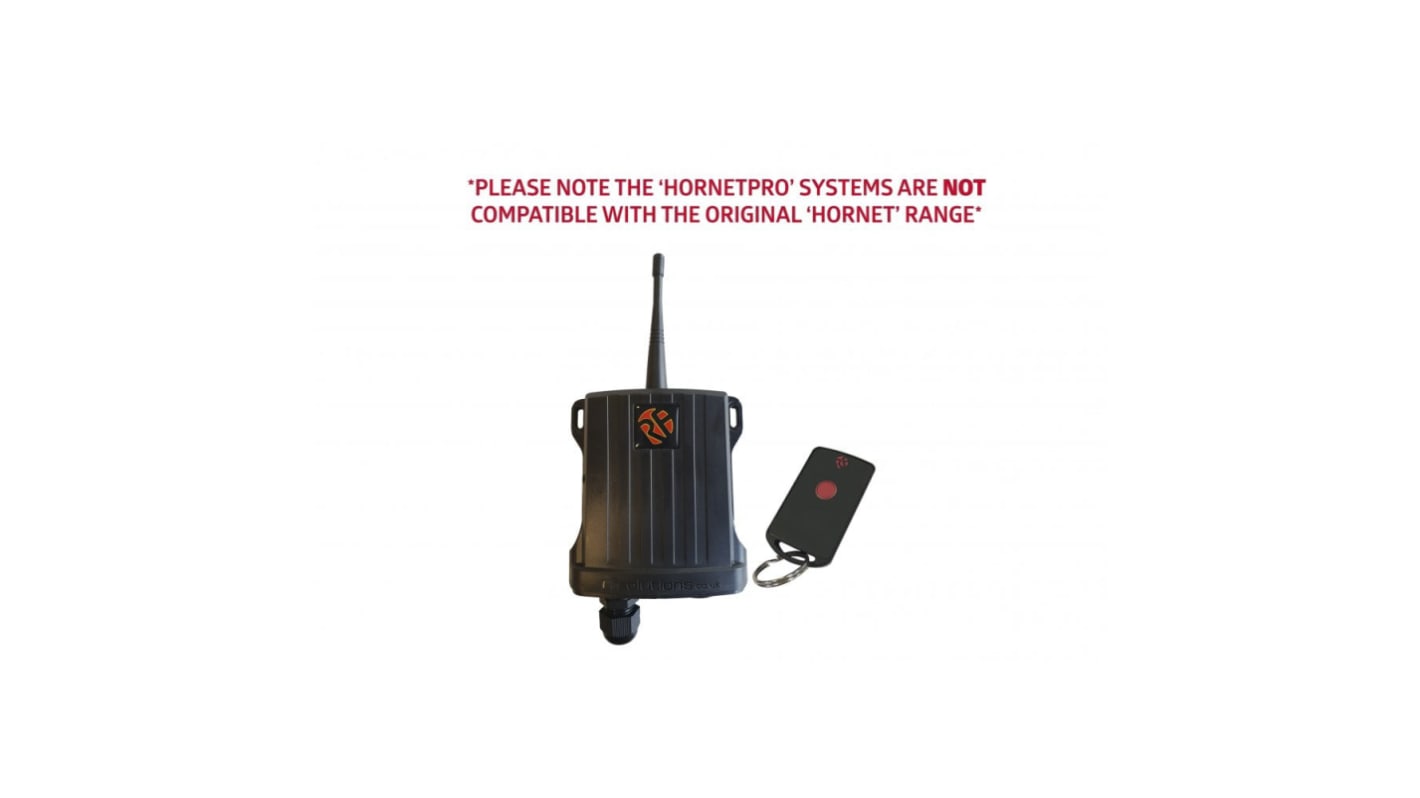

A versatile general purpose Remote Control System for many different applications. Housed in a rugged weatherproof enclosure, The new HORNETPRO system is ideally suited to any remote switch requirement. With upto 4 changeover Relay switch outputs each output can be controlled from any switch on any transmitter. Additional transmitters may be added to the system using the same ’easy-learn’ process with-out opening the enclosure. Installation is by screw terminals to the power supply and the output relay contacts. The output relays are activated by the button press on the transmitter encoder.
Up to 200m Range
868MHz FM Technology
1 – 4 Channels each 1000W
Waterproof Receiver
High Security RF Protocol
2 / 4 Changeover Relays Contacts
Rated 5A @ 230Vac
12-30Vac/dc, 110V or 230Vac
versions Available
Outputs Momentary or Latching
Any Switch Map to Any Relay
Systems supplied ’ready to Go’
