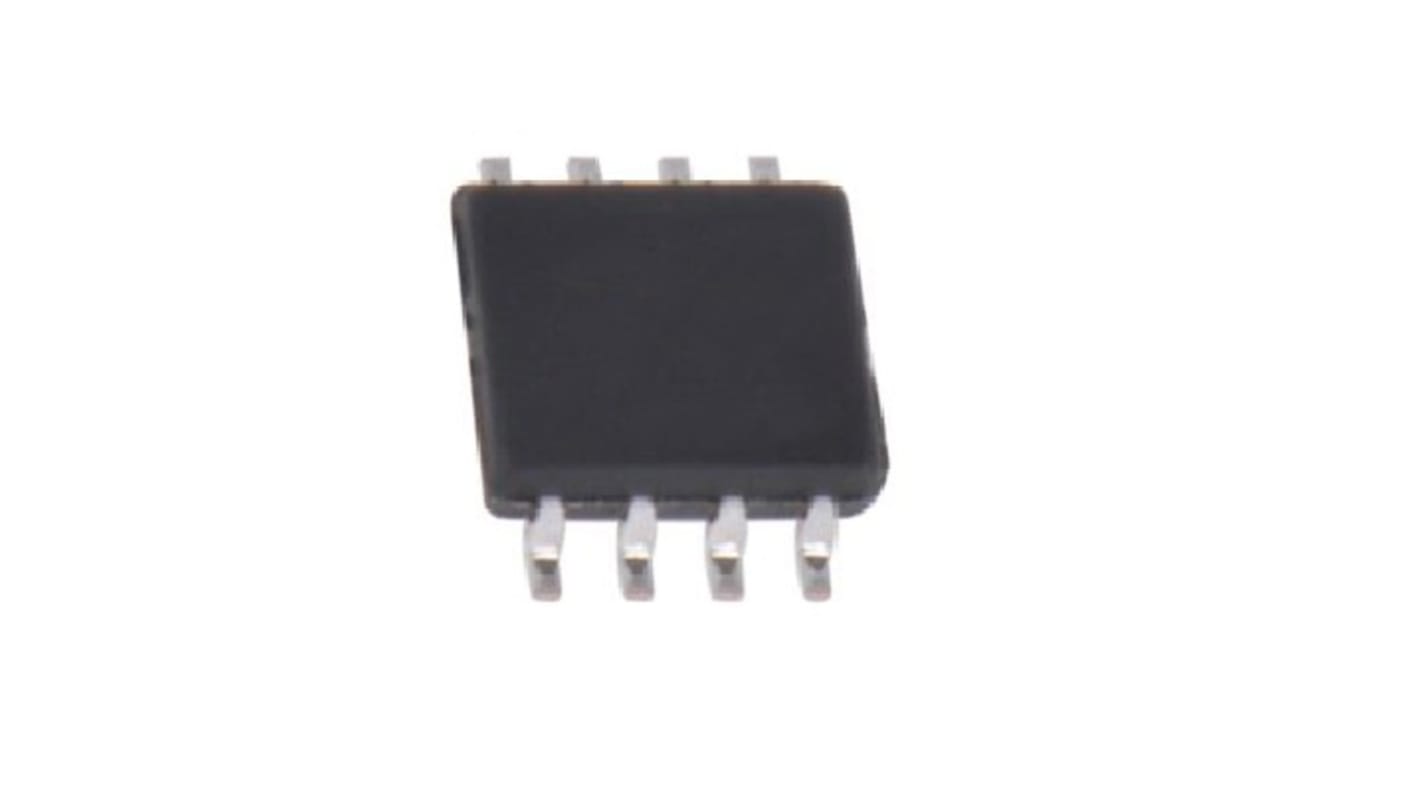

Renesas Electronics 1339-31DVGI8, Real Time Clock 7 bit Application Specific Clock YY:MM:DD:dd, 8-Pin MSOP-8 Surface
- RS 제품 번호:
- 264-3512
- 제조사 부품 번호:
- 1339-31DVGI8
- 제조업체:
- Renesas Electronics
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 2 units)*
₩9,061.60
재고있음
- 2,492 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 2 - 48 | ₩4,530.80 | ₩9,061.60 |
| 50 - 98 | ₩3,846.48 | ₩7,692.96 |
| 100 - 248 | ₩3,342.64 | ₩6,683.40 |
| 250 - 998 | ₩3,177.20 | ₩6,352.52 |
| 1000 + | ₩2,507.92 | ₩5,013.96 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 264-3512
- 제조사 부품 번호:
- 1339-31DVGI8
- 제조업체:
- Renesas Electronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Renesas Electronics | |
| Product Type | Real Time Clock | |
| Date Format | YY:MM:DD:dd | |
| Time Format | HH:MM:SS | |
| Sub Type | Application Specific Clock | |
| Mount Type | Surface | |
| Package Type | MSOP-8 | |
| Interface Type | Serial-I2C | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| RTC Memory Size | 7bit | |
| Maximum Operating Temperature | 85°C | |
| Series | IDT1339 | |
| Length | 3mm | |
| Width | 3 mm | |
| Standards/Approvals | RoHS, UL | |
| Height | 1.1mm | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 5.5V | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Renesas Electronics | ||
Product Type Real Time Clock | ||
Date Format YY:MM:DD:dd | ||
Time Format HH:MM:SS | ||
Sub Type Application Specific Clock | ||
Mount Type Surface | ||
Package Type MSOP-8 | ||
Interface Type Serial-I2C | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
RTC Memory Size 7bit | ||
Maximum Operating Temperature 85°C | ||
Series IDT1339 | ||
Length 3mm | ||
Width 3 mm | ||
Standards/Approvals RoHS, UL | ||
Height 1.1mm | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 5.5V | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Renesas Electronics serial real time clock is a low power clock or date device with two programmable time of day alarms and a programmable square wave output. Address and data are transferred serially through an I²C bus. The clock or date provides seconds minutes hours day date month and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days and including corrections for leap year.
Trickle charge capability available
Programmable square wave type output
Fast mode I2C serial interface system
Device has two time of day alarms
Underwriters laboratory recognized
Automatic power fail detect and switch circuitry available
