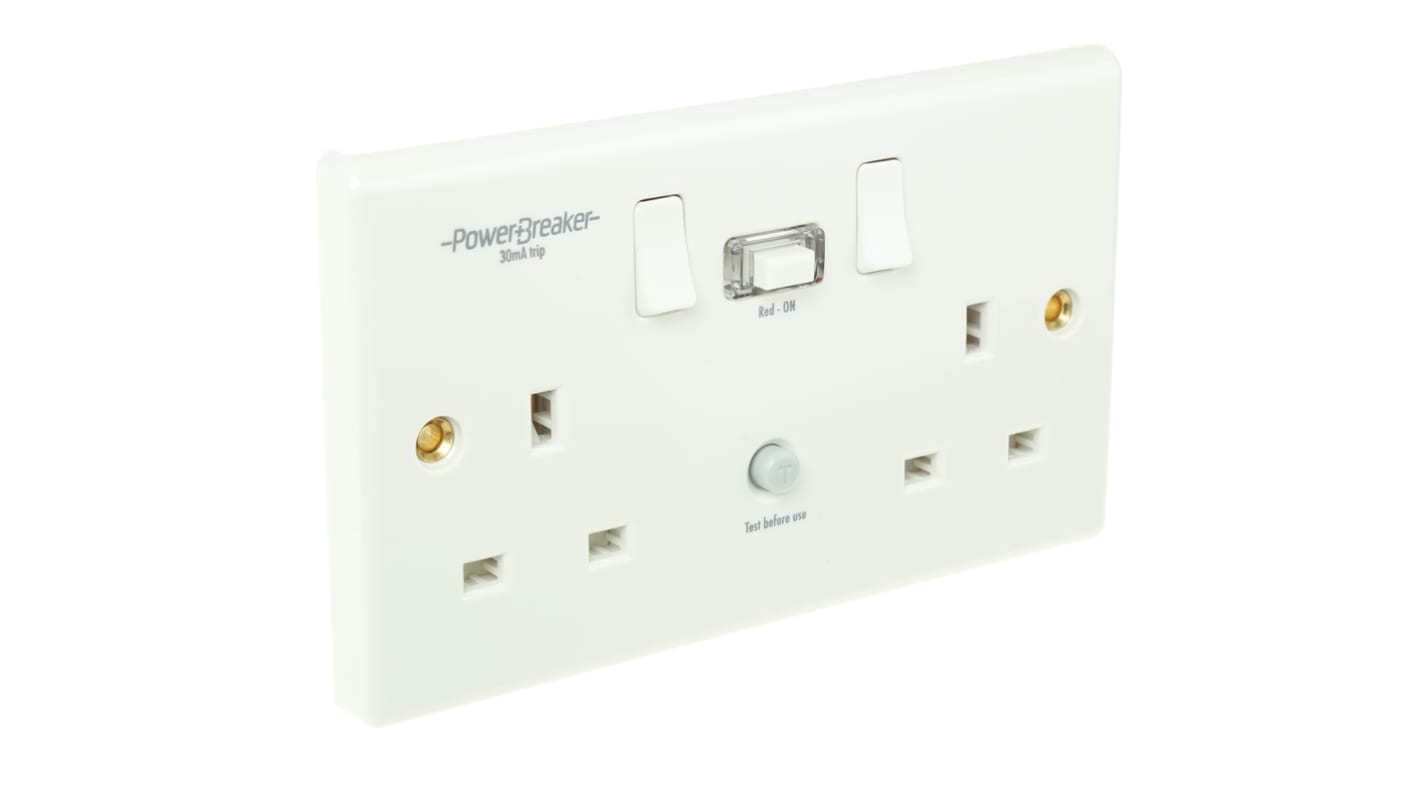

Powerbreaker PowerBreaker H 13 A, Passive 2 RCD Socket, Polycarbonate, Surface Switched, BS7288, BS EN 61543, BS1363, EN

RS 제품 번호:: 431-9308
제조사 부품 번호:: K22WP-C
제조업체:: Powerbreaker

Powerbreaker PowerBreaker H 13 A, Passive 2 RCD Socket, Polycarbonate, Surface Switched, BS7288, BS EN 61543, BS1363, EN

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩144,985.60

재고있음

30 개 단위 배송 준비 완료
추가로 2026년 3월 31일 부터 10 개 단위 배송
추가로 2026년 4월 28일 부터 10 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩144,985.60
10 - 49	₩142,447.60
50 +	₩138,706.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 431-9308
제조사 부품 번호:: K22WP-C
제조업체:: Powerbreaker

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Powerbreaker
	Product Type	RCD Socket
	Material	Polycarbonate
	Socket Type	Switched
	Number of Gangs	2
	Pole Configuration	2
	RCD Type	Passive
	Mount Type	Surface
	Colour	White
	Terminal Type	Twin Terminal
	IP Rating	IP40
	Switched	Yes
	Switch Type	Manually Reset, Dual Button Operation
	Trip Speed	40ms
	Width	147 mm
	Height	86.4mm
	Faceplate Depth	11.3mm
	Range	K RCD sockets
	Standards/Approvals	BS7288, BS EN 61543, BS1363, EN 61009
	Voltage	230 V ac
	Finish	White Plastic, Epoxy Coated Metal
	Current Rating	13 A
	Series	PowerBreaker H
	Special Features	Faster Response Time, Resistance to Impulse Voltages, Red Flag Indication, Double Pole Contact-Break, Resistance to Unwanted Tripping, Piezo Actuated Technology, Twin Earth Terminals on Twin, Manually Reset, Customer Specific Colours and Logos Available, Clear Indicator Window, Resistant to Nuisance Tripping, One on Single, Integral Set and Indicator Button, Two Button Operation, Faster Tripping Speeds
	Trip Current	30mA

	모두 선택
	브랜드 Powerbreaker
	Product Type RCD Socket
	Material Polycarbonate
	Socket Type Switched
	Number of Gangs 2
	Pole Configuration 2
	RCD Type Passive
	Mount Type Surface
	Colour White
	Terminal Type Twin Terminal
	IP Rating IP40
	Switched Yes
	Switch Type Manually Reset, Dual Button Operation
	Trip Speed 40ms
	Width 147 mm
	Height 86.4mm
	Faceplate Depth 11.3mm
	Range K RCD sockets
	Standards/Approvals BS7288, BS EN 61543, BS1363, EN 61009
	Voltage 230 V ac
	Finish White Plastic, Epoxy Coated Metal
	Current Rating 13 A
	Series PowerBreaker H
	Special Features Faster Response Time, Resistance to Impulse Voltages, Red Flag Indication, Double Pole Contact-Break, Resistance to Unwanted Tripping, Piezo Actuated Technology, Twin Earth Terminals on Twin, Manually Reset, Customer Specific Colours and Logos Available, Clear Indicator Window, Resistant to Nuisance Tripping, One on Single, Integral Set and Indicator Button, Two Button Operation, Faster Tripping Speeds
	Trip Current 30mA

COO (Country of Origin):: MY

Switched Sockets - White Plastic Moulded

Single or 2 gang sockets, available with passive circuitry.

Power Breaker RCDs

Providing protection against electrocution

Double pole switching on all types

Trip Current 30mA

Twin earth terminal

All terminals are in-line with captive screws for ease of installation

Detects pulsating dc fault currents to protect electronic equipment, loss of earth and neutral and reversed supply polarity

230Vac 50Hz

Suitable for Flush or surface mounting

Single and double gang sockets fit in place of standard sockets

Integral set and indicator button

Resistant to nuisance tripping

Typical trip speed <40ms

Standards

BS7288; BS1363
