Name: Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1P+N-Pole, 30 mA Trip
Brand: Schneider Electric
SKU: 201-2236
Price: 360672.00 KRW
Availability: InStock

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Current Rating	16A
	Product Type	Residual Current Circuit Breaker with Overload Protection
	Range	Acti9
	Number of Poles	1P+N
	Series	A9
	Trip Sensitivity	30mA
	Mount Type	DIN Rail
	Rated AC Voltage	230V ac
	Terminal Type	Tunnel
	Earth Leakage Protection Type	Type A
	Width	36mm
	Height	85mm
	Depth	73mm
	Tripping Mechanism	Thermal Magnetic
	Application	Distribution
	Breaking Capacity	6kA
	Standards/Approvals	RoHS, IEC

	모두 선택
	브랜드 Schneider Electric
	Current Rating 16A
	Product Type Residual Current Circuit Breaker with Overload Protection
	Range Acti9
	Number of Poles 1P+N
	Series A9
	Trip Sensitivity 30mA
	Mount Type DIN Rail
	Rated AC Voltage 230V ac
	Terminal Type Tunnel
	Earth Leakage Protection Type Type A
	Width 36mm
	Height 85mm
	Depth 73mm
	Tripping Mechanism Thermal Magnetic
	Application Distribution
	Breaking Capacity 6kA
	Standards/Approvals RoHS, IEC

로그인하여 CAD 모델 다운로드

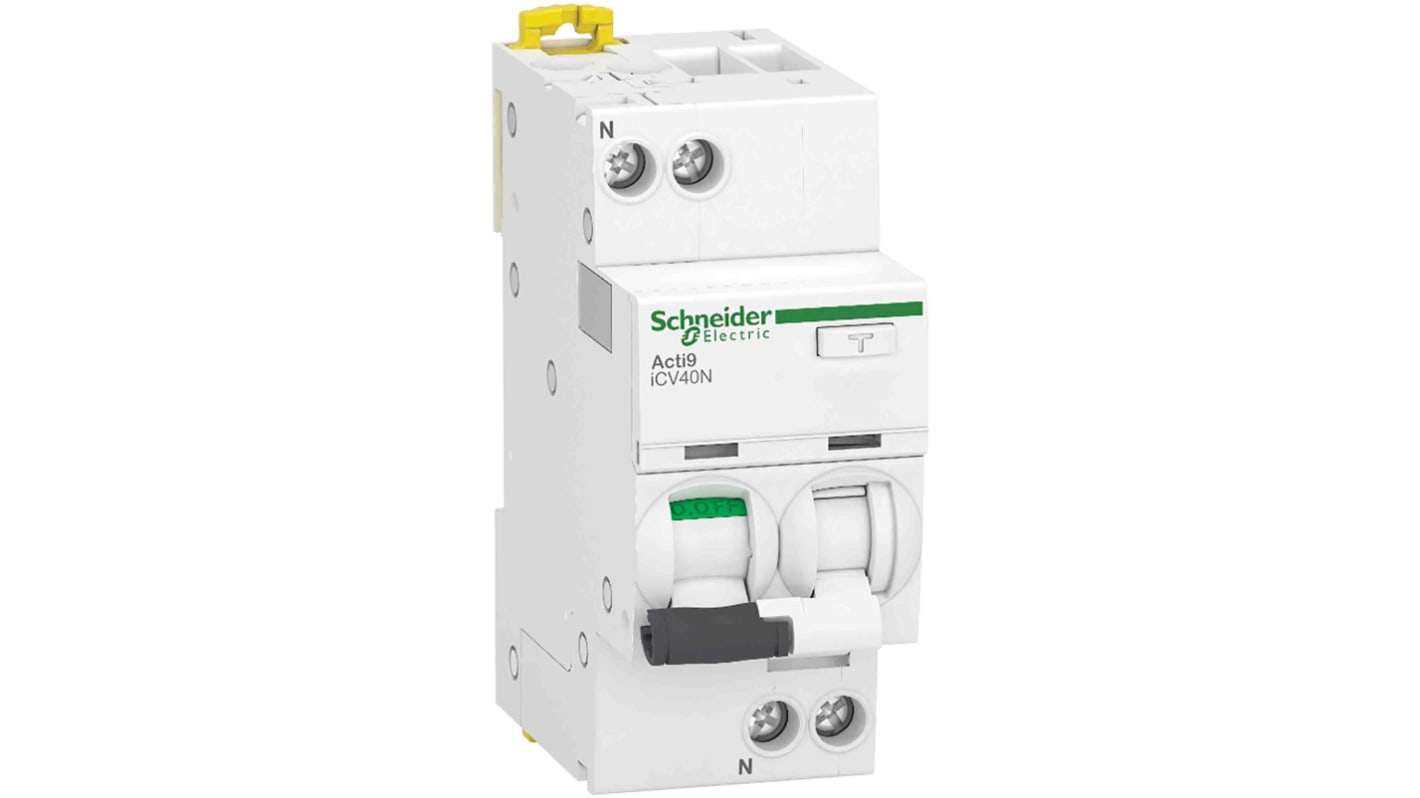

Schneider Electric Series A9 Residual Current Circuit Breaker with Overload Protection, 16A Current, 30mA Trip Sensitivity - A9DC3616

This residual current circuit-breaker with overload protection provides combined earth-leakage detection and overcurrent interruption for distribution circuits in industrial and commercial electrical installations. It is designed for DIN-rail mounting and suits AC networks, delivering instantaneous Type A residual-current sensitivity alongside thermal-magnetic overcurrent tripping for routine protection tasks.

Features & Benefits

• 30mA sensitivity delivers personnel protection against leakage currents
• 16A rated current supports branch-circuit distribution loads
• 6kA breaking capacity limits fault energy during short-circuits
• Thermal-magnetic trip offers both overload and short-circuit response
• Voltage-independent residual trip ensures consistent operation
• Tunnel terminals accept 1 to 16mm² conductors for secure connections

Applications

• Suitable for distribution boards in machinery control panels
• Ideal for protecting lighting and socket circuits in workshops
• used with single-phase supply circuits requiring earth-leakage detection
• Can be used for retrofit DIN-rail installations in plant rooms

What network voltages and frequencies does it operate on?

It is intended for 230VAC operation at 50/60Hz on standard single-phase networks.

How does the device indicate contact status?

A local indicator shows ON/OFF contact position for Rapid Visual checks.

Which Terminal arrangements accommodate conductor routing?

Tunnel-type terminals are provided TOP or bottom and accept rigid and flexible conductors with 14mm stripping length.

What environmental conditions can it withstand in service?

It functions between -25 to 60°C, up to 2000m altitude, and high humidity up to 95% at 55°C.

How is the unit mounted and secured within an enclosure?

It clips onto a DIN rail and has padlock/sealable locking options for local access control.

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1P+N-Pole, 30 mA Trip
