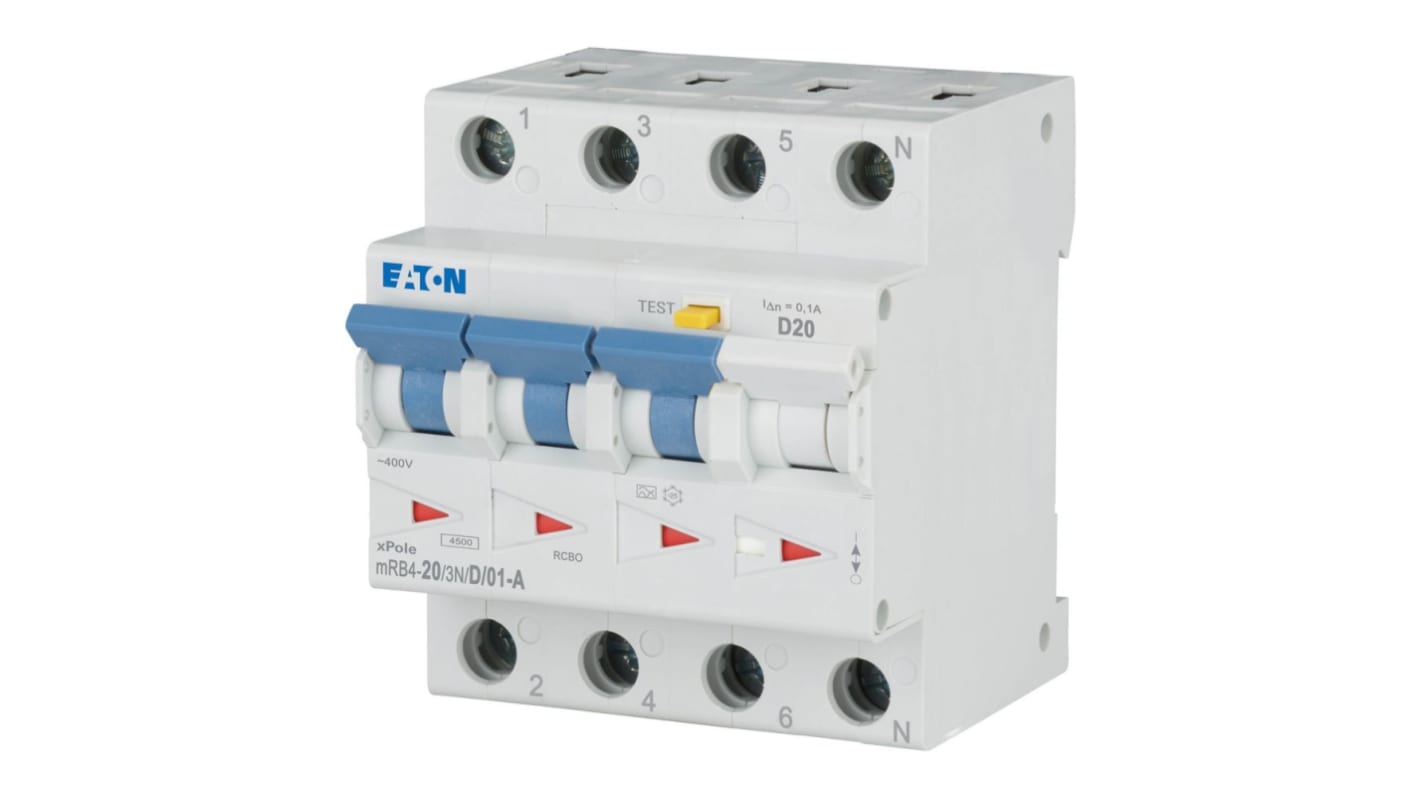

Eaton Residual Current Circuit Breaker with Overload Protection, 20A Current Rating, 3-Pole, 100 mA Trip Sensitivity,
- RS 제품 번호:
- 229-306
- 제조사 부품 번호:
- 120684 mRB4-20/3N/D/01-A
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩805,254.45
제조사가 재고 비축중
- 2026년 5월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩805,254.45 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 229-306
- 제조사 부품 번호:
- 120684 mRB4-20/3N/D/01-A
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 20A | |
| Range | xPole | |
| Number of Poles | 3 | |
| Series | Eaton Moeller | |
| Trip Sensitivity | 100mA | |
| Tripping Characteristics | Type D | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 400V ac | |
| Terminal Type | Twin-Purpose Terminal | |
| Depth | 80mm | |
| Height | 75.5mm | |
| Width | 70mm | |
| Standards/Approvals | IEC EN 61009, CE, RoHS | |
| Tripping Mechanism | Non-Delayed | |
| Application | Switch Gear | |
| Breaking Capacity | 4.5kA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 20A | ||
Range xPole | ||
Number of Poles 3 | ||
Series Eaton Moeller | ||
Trip Sensitivity 100mA | ||
Tripping Characteristics Type D | ||
Mount Type DIN Rail | ||
Rated AC Voltage 400V ac | ||
Terminal Type Twin-Purpose Terminal | ||
Depth 80mm | ||
Height 75.5mm | ||
Width 70mm | ||
Standards/Approvals IEC EN 61009, CE, RoHS | ||
Tripping Mechanism Non-Delayed | ||
Application Switch Gear | ||
Breaking Capacity 4.5kA | ||
- COO (Country of Origin):
- RO
The Eaton residual-current circuit breaker, part of the Moeller series xPole, is engineered for reliable protection against electrical faults. With its integrated overcurrent protection, it ensures remarkable safety for both residential and commercial applications. The device combines RCD and MCB functionalities, simplifying electrical distribution while safeguarding against current leakage. Its robust design accommodates various installations, making it a pivotal component in effective switchgear solutions. Featuring a rated current of 20 A, this device is capable of supporting different industrial requirements, addressing the critical need for safety and reliability in challenging environments. The xPole mRB4/6 is a testament to Eaton's commitment to quality, performance, and enduring standards.
CE marked for compliance with European safety standards
Designed for optimal performance in both residential and commercial settings
Incorporates advanced tripping characteristics for immediate fault response
Offers a dual function, combining RCD and MCB capabilities in one unit
Capable of handling surge current capacities, enhancing its protective functionality
Constructed with high-quality materials for improved durability and longevity
Equipped with intuitive wiring diagrams to facilitate straightforward installation
Features a compact design that supports modular spacings for flexible configurations
Engineered to withstand harsh environmental conditions, ensuring operational reliability
Includes extensive certification to assure users of its performance and safety
