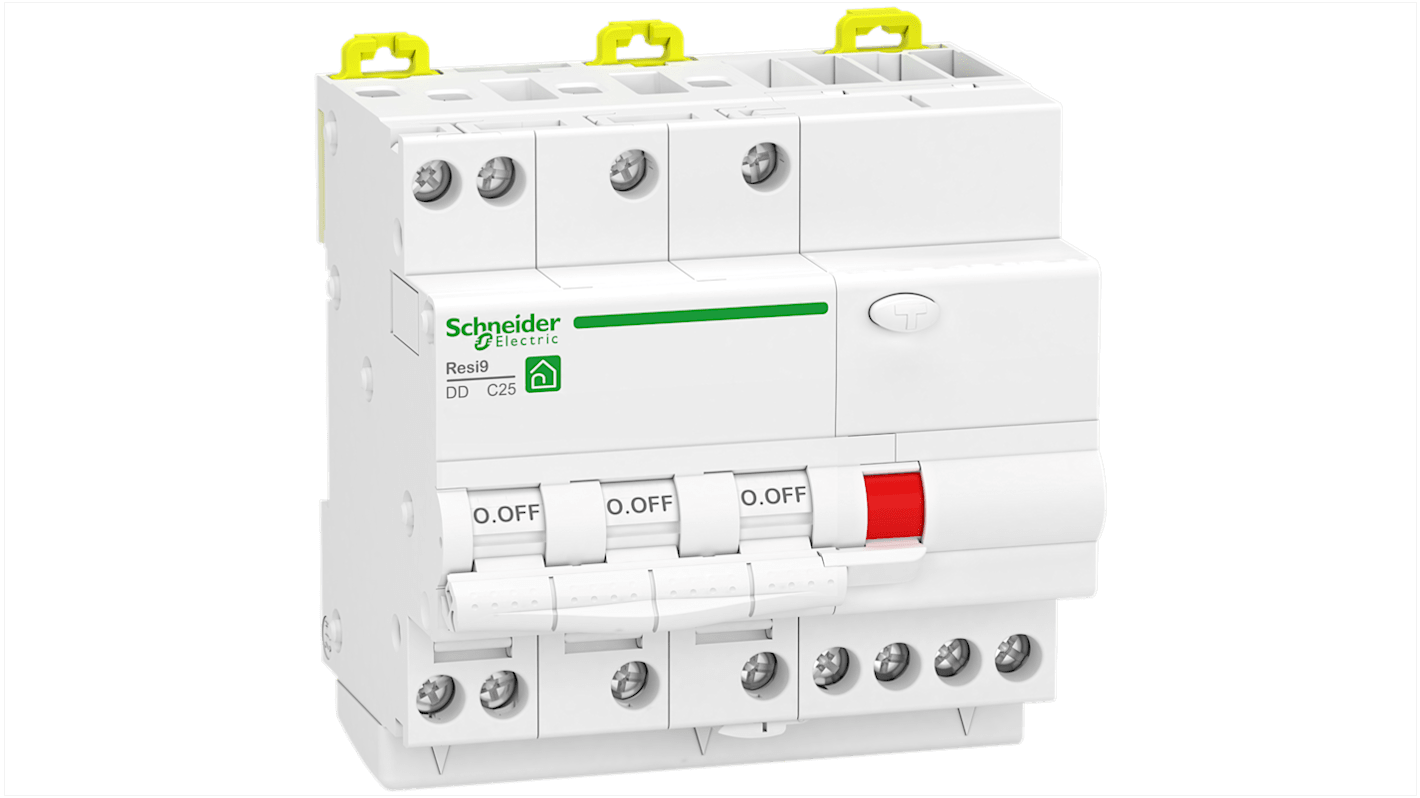

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 20A Current Rating, 3-Pole, 30 mA Trip
- RS 제품 번호:
- 130-504
- 제조사 부품 번호:
- R9PDCS20
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩998,980.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩998,980.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 130-504
- 제조사 부품 번호:
- R9PDCS20
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Current Rating | 20A | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Number of Poles | 3 | |
| Range | Resi9 | |
| Series | Resi9 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 230V ac | |
| Terminal Type | Tunnel | |
| Height | 91mm | |
| Width | 90mm | |
| Depth | 72.5mm | |
| Application | Distribution | |
| Reset Actuator Type | Toggle | |
| Breaking Capacity | 6kA | |
| Tripping Mechanism | Thermal Magnetic | |
| Standards/Approvals | EN/IEC 60947-2, EN/IEC 61009-2-1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Current Rating 20A | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Number of Poles 3 | ||
Range Resi9 | ||
Series Resi9 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 230V ac | ||
Terminal Type Tunnel | ||
Height 91mm | ||
Width 90mm | ||
Depth 72.5mm | ||
Application Distribution | ||
Reset Actuator Type Toggle | ||
Breaking Capacity 6kA | ||
Tripping Mechanism Thermal Magnetic | ||
Standards/Approvals EN/IEC 60947-2, EN/IEC 61009-2-1 | ||
- COO (Country of Origin):
- ES
The Schneider Electric Residual current breaker with overcurrent protection (RCBO) Resi9 DD is a reliable and efficient device designed for distribution applications. With characteristics including a C curve, 3000A breaking capacity, and A-SI type protection, this RCBO ensures safety and performance in electrical systems.
Thermal-magnetic trip unit technology for accurate response
Integrated earth-leakage protection for enhanced safety
Clip-on mounting mode for easy installation
DIN rail mounting support for secure positioning
Tunnel type terminals for flexible connection options
Mechanical durability
