현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 876-5932
- 제조사 부품 번호:
- DZ5321-0070EC-RS
- 제조업체:
- Accuride
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Accuride | |
| Maximum Load | 100kg | |
| Material | Steel | |
| Width | 19.1, 19.1 mm | |
| Height | 53mm | |
| Slide Length Closed | 700mm | |
| Extension | 100% | |
| Series | DZ5321 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Accuride | ||
Maximum Load 100kg | ||
Material Steel | ||
Width 19.1, 19.1 mm | ||
Height 53mm | ||
Slide Length Closed 700mm | ||
Extension 100% | ||
Series DZ5321 | ||
- COO (Country of Origin):
- MX

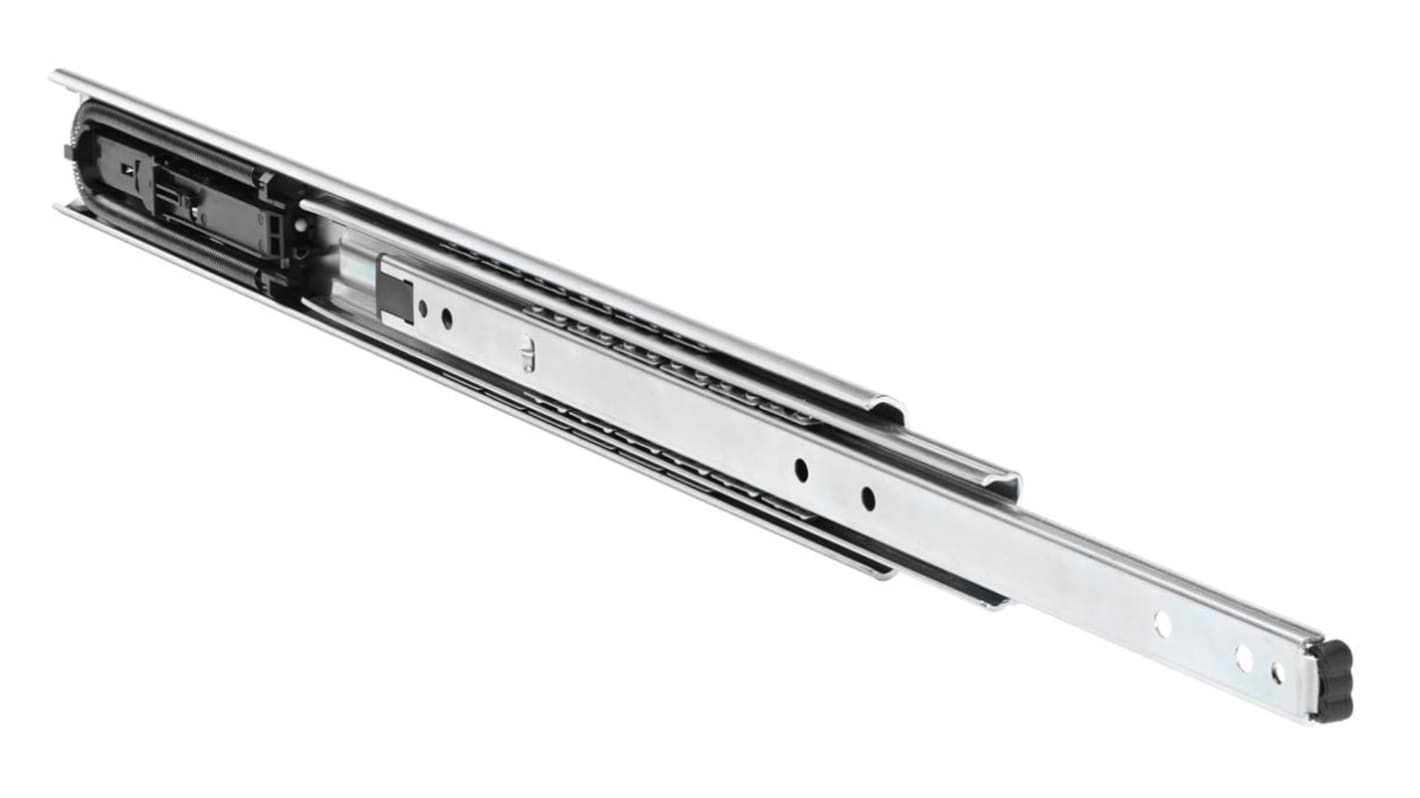

DZ5321EC - Heavy Duty Drawer Telescopic Slides with Damping System
Heavy duty telescopic slides
Steamed self-closing
Load rating up to 100 kg
100% extension
19.1mm slide thickness
Suitable for drawers up to 1000 mm wide
Steamed self-closing
Load rating up to 100 kg
100% extension
19.1mm slide thickness
Suitable for drawers up to 1000 mm wide
