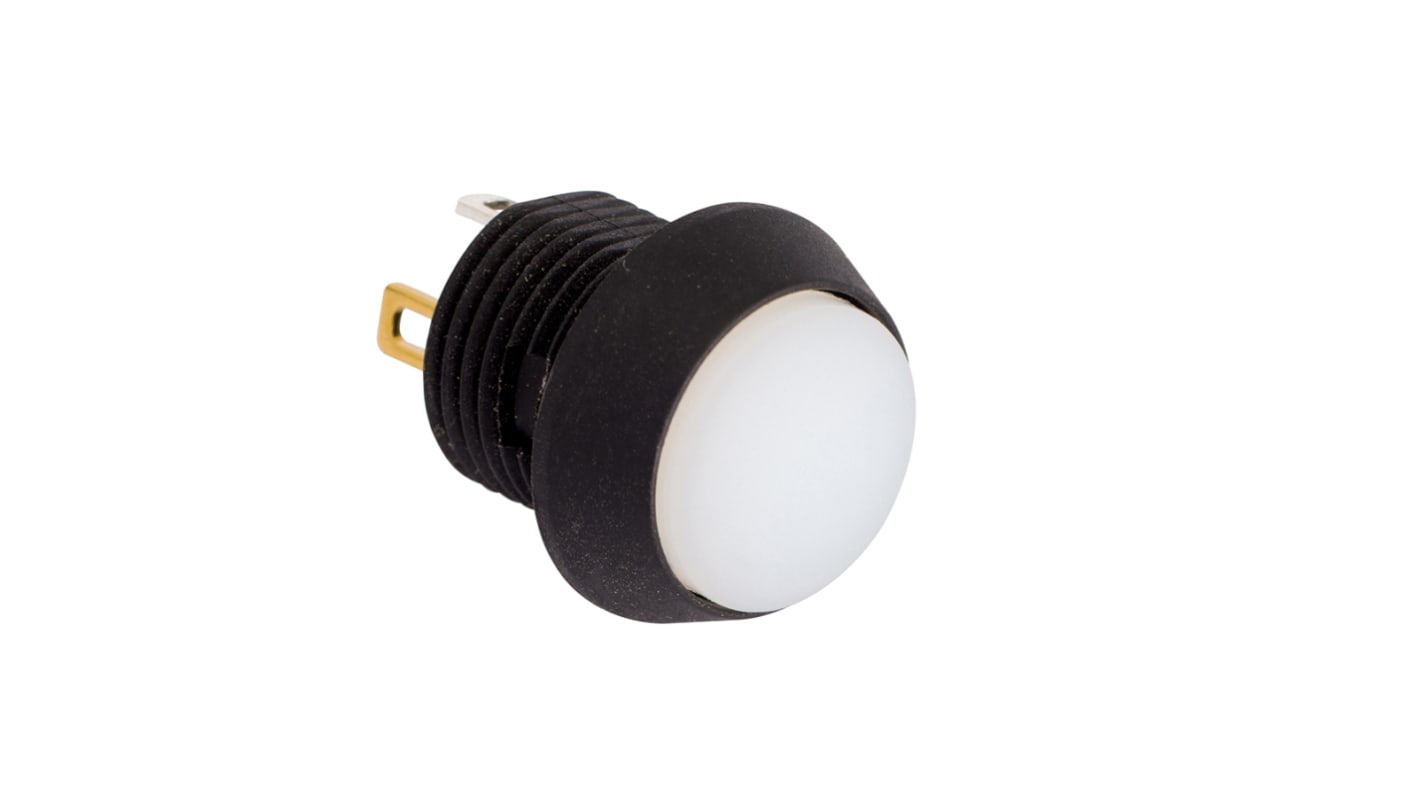

EOZ FL Series Illuminated Push Button Switch, Momentary, Panel, 13.5 mm Cutout, SPST, Blue, Green LED, IP67 2500 V

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩20,510.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 19일 부터 13 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩20,510.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
913-1807
제조사 부품 번호:
FL13DGB5
제조업체:
EOZ
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EOZ

Actuator Colour

White

Switch Operation

Momentary

Product Type

Push Button Switch

Illuminated

Yes

Series

FL

Panel Cutout Size

13.5 mm

Mount Type

Panel

Contact Configuration

SPST

LED Colour

Blue, Green

Terminal Type

Plug-In

IP Rating

IP67

Contact AC Voltage

2500V

Minimum Operating Temperature

-40°C

Actuator Style

Cap

Maximum Operating Temperature

85°C

Switch Configuration

1 NO

Standards/Approvals

RoHS

Switch Contact Current

65 mA

COO (Country of Origin):
FR

FL Series Push Button Switches, Sealed and Vandal Resistant


The FL series from EOZ is the first small sized push button in the market to feature full face illumination. The entire front cap of the unit lights up from pre-installed 5 V LED’s. The range includes single colour illumination, dual colour illumination and non-illuminated options. The dual colour illumination options have a milky white cap when not illuminated. All the single illuminated versions have a cap which matches the illuminated colour.

They have been designed to fit into the industry standard 12 mm and 13.5 mm panel cut outs so they fit most applications. As well as being IP67 rated, they are also vandal resistant by nature giving all round protection.

Features


Ingress protection: IP67

Operating temperature range: -40 to +85°C

Panel thickness: 1 mm to 6 mm

Terminal type: Plug-in 2.8 x 0.5 mm

Contact terminals: Gold plated nickel

LED terminals: Silver plated nickel
