EOZ FL Series Push Button Switch, Momentary, Panel, 12 mm Cutout, SPST, IP67
- RS 제품 번호:
- 913-1718
- 제조사 부품 번호:
- FL12NN
- 제조업체:
- EOZ
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩14,976.00
공급 부족
- 2,398 개 단위 배송 준비 완료
당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩14,976.00 |
| 5 - 24 | ₩14,527.50 |
| 25 - 49 | ₩14,059.50 |
| 50 - 99 | ₩13,786.50 |
| 100 + | ₩13,396.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 913-1718
- 제조사 부품 번호:
- FL12NN
- 제조업체:
- EOZ
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EOZ | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Illuminated | No | |
| Panel Cutout Size | 12 mm | |
| Series | FL | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Plug-In | |
| IP Rating | IP67 | |
| Actuator Style | Cap | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | Momentary | |
| Switch Contact Current | 65mA | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 EOZ | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Illuminated No | ||
Panel Cutout Size 12 mm | ||
Series FL | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Plug-In | ||
IP Rating IP67 | ||
Actuator Style Cap | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration Momentary | ||
Switch Contact Current 65mA | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- FR

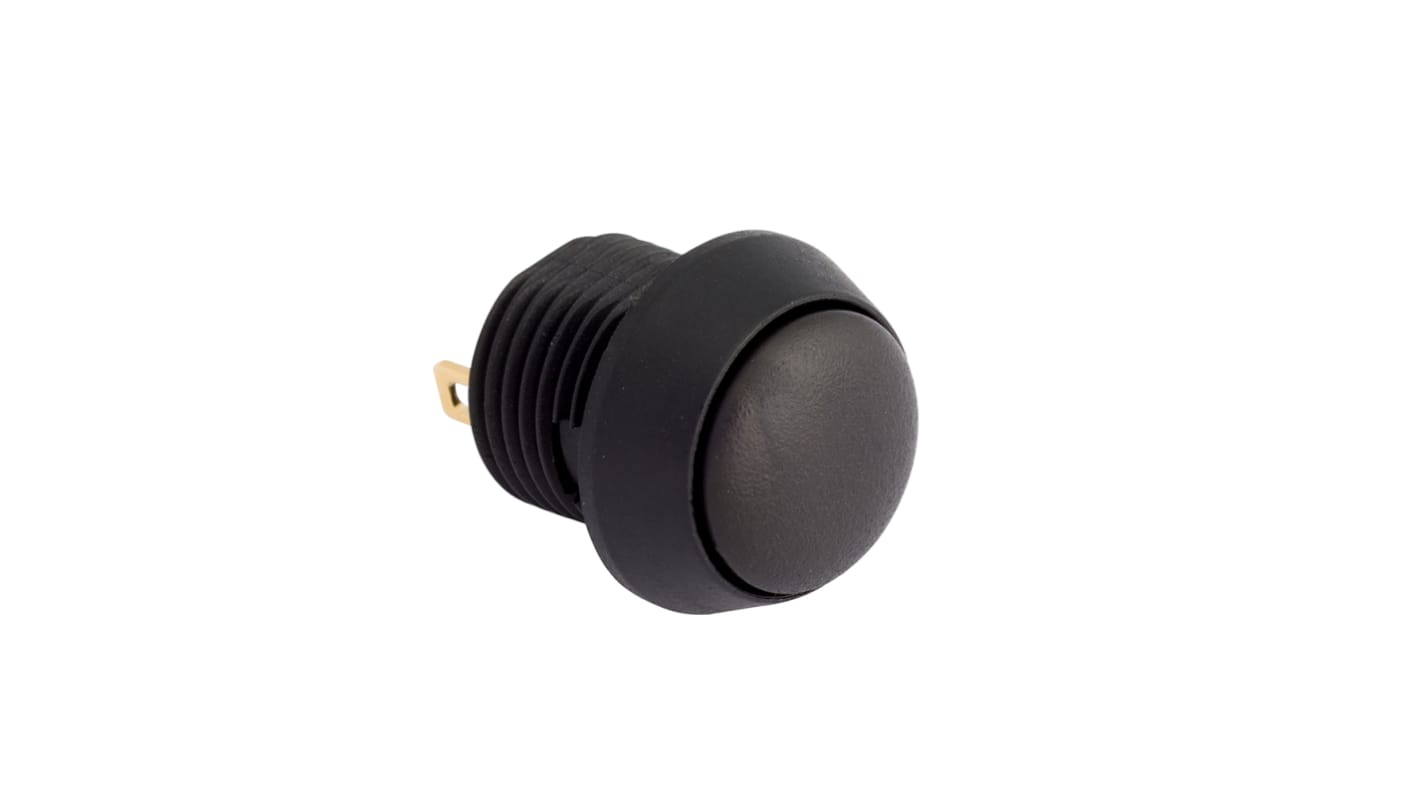

The FL12NN push button switch is a 12mm, non-illuminated, momentary switch with a black cap. It has a 5V rating.
Features and Benefits
• 12mm industry standard panel cut out enabling them to be used in most applications.
• Gold plated nickel contacts which gives exceptional corrosion protection and are least susceptible to oxidation.
• Vandal-resistant by nature making them ideal in areas used by the general public.
• IP67 – making the button ideal for outdoor use. (Totally protected against dust and protected against the effects of immersion between 15cm and 1m. Duration of test 30 minutes).
FL Series Push Button Switches, Sealed and Vandal Resistant
The FL series from EOZ is the first small sized push button in the market to feature full face illumination. The entire front cap of the unit lights up from pre-installed 5 V LED’s. The range includes single colour illumination, dual colour illumination and non-illuminated options. The dual colour illumination options have a milky white cap when not illuminated. All the single illuminated versions have a cap which matches the illuminated colour.
They have been designed to fit into the industry standard 12 mm and 13.5 mm panel cut outs so they fit most applications. As well as being IP67 rated, they are also vandal resistant by nature giving all round protection.
Features
Ingress protection: IP67
Operating temperature range: -40 to +85°C
Panel thickness: 1 mm to 6 mm
Terminal type: Plug-in 2.8 x 0.5 mm
Contact terminals: Gold plated nickel
LED terminals: Silver plated nickel
