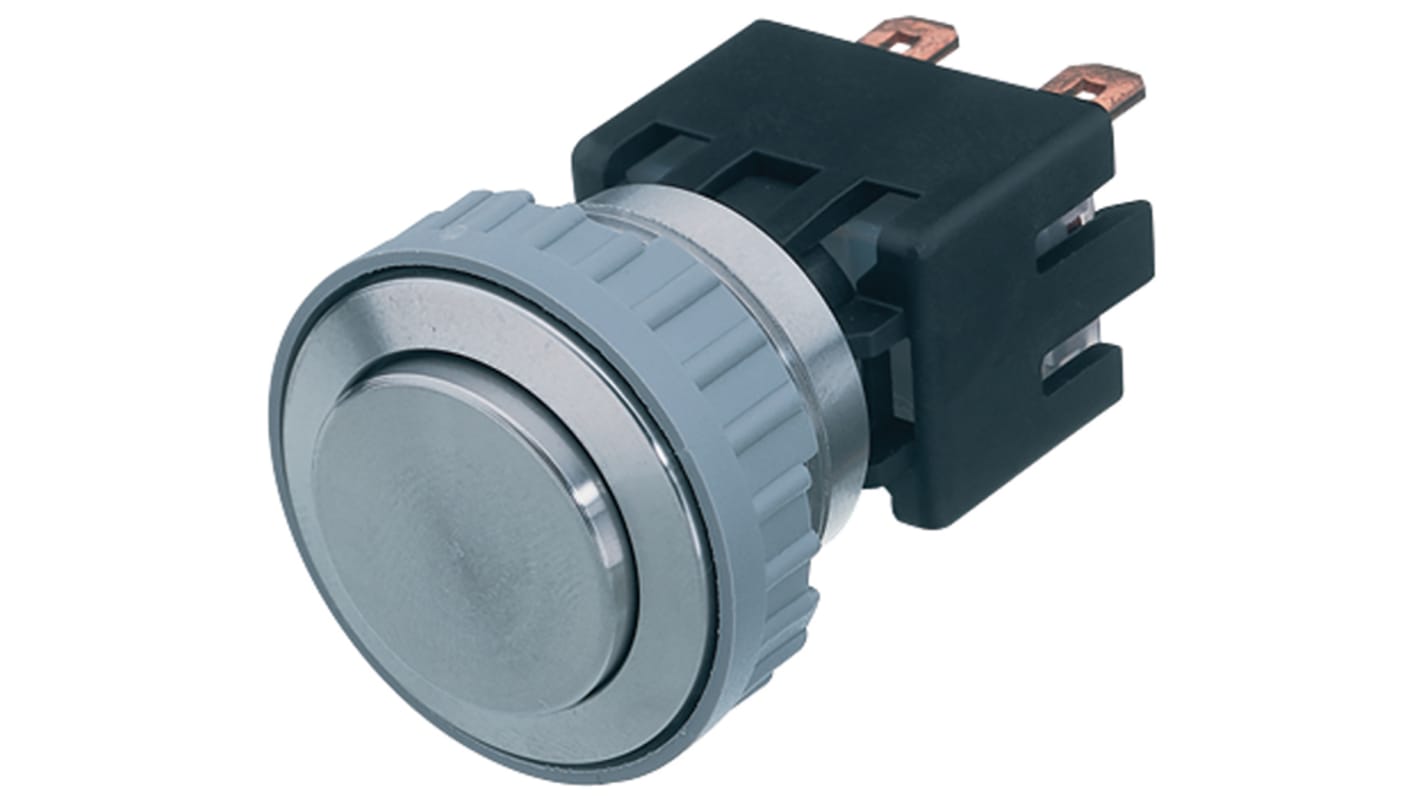

Schurter MSM 22 Series Illuminated Push Button Switch, Latching, Panel, 19.1 mm Cutout, SPST, Blue, Green, Red LED,
- RS 제품 번호:
- 867-4025
- 제조사 부품 번호:
- 1241.6831.1110000
- 제조업체:
- Schurter
Subtotal (1 unit)*
₩36,584.80
일시적 품절
- 2026년 4월 27일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩36,584.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 867-4025
- 제조사 부품 번호:
- 1241.6831.1110000
- 제조업체:
- Schurter
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schurter | |
| Actuator Colour | Silver | |
| Switch Operation | Latching | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | MSM 22 | |
| Panel Cutout Size | 19.1 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Blue, Green, Red | |
| Terminal Type | Tab | |
| IP Rating | IP00, IP40, IP64 | |
| Contact DC Voltage | 30V dc | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Button | |
| Contact AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | 2P | |
| Height | 17.80mm | |
| Switch Contact Current | 12 A | |
| Standards/Approvals | CSA, RoHS, UL | |
| Width | 22 mm | |
| Legend | No Lettering/Standard Lettering/Customised Lettering | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schurter | ||
Actuator Colour Silver | ||
Switch Operation Latching | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series MSM 22 | ||
Panel Cutout Size 19.1 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Blue, Green, Red | ||
Terminal Type Tab | ||
IP Rating IP00, IP40, IP64 | ||
Contact DC Voltage 30V dc | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Button | ||
Contact AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration 2P | ||
Height 17.80mm | ||
Switch Contact Current 12 A | ||
Standards/Approvals CSA, RoHS, UL | ||
Width 22 mm | ||
Legend No Lettering/Standard Lettering/Customised Lettering | ||
- COO (Country of Origin):
- DE
Schurter MSM22 Series
The Schurter MSM19 series of push button switches are available in a variety of specifications. They all provide a high-quality stainless steel housing, which makes all switches highly reliable and extremely durable.
With or without surface backlighting in different colours
Certain models available with single-pole and double-pole switching system, switching
status is easy to discern by looking at or feeling the resting position of the actuator
