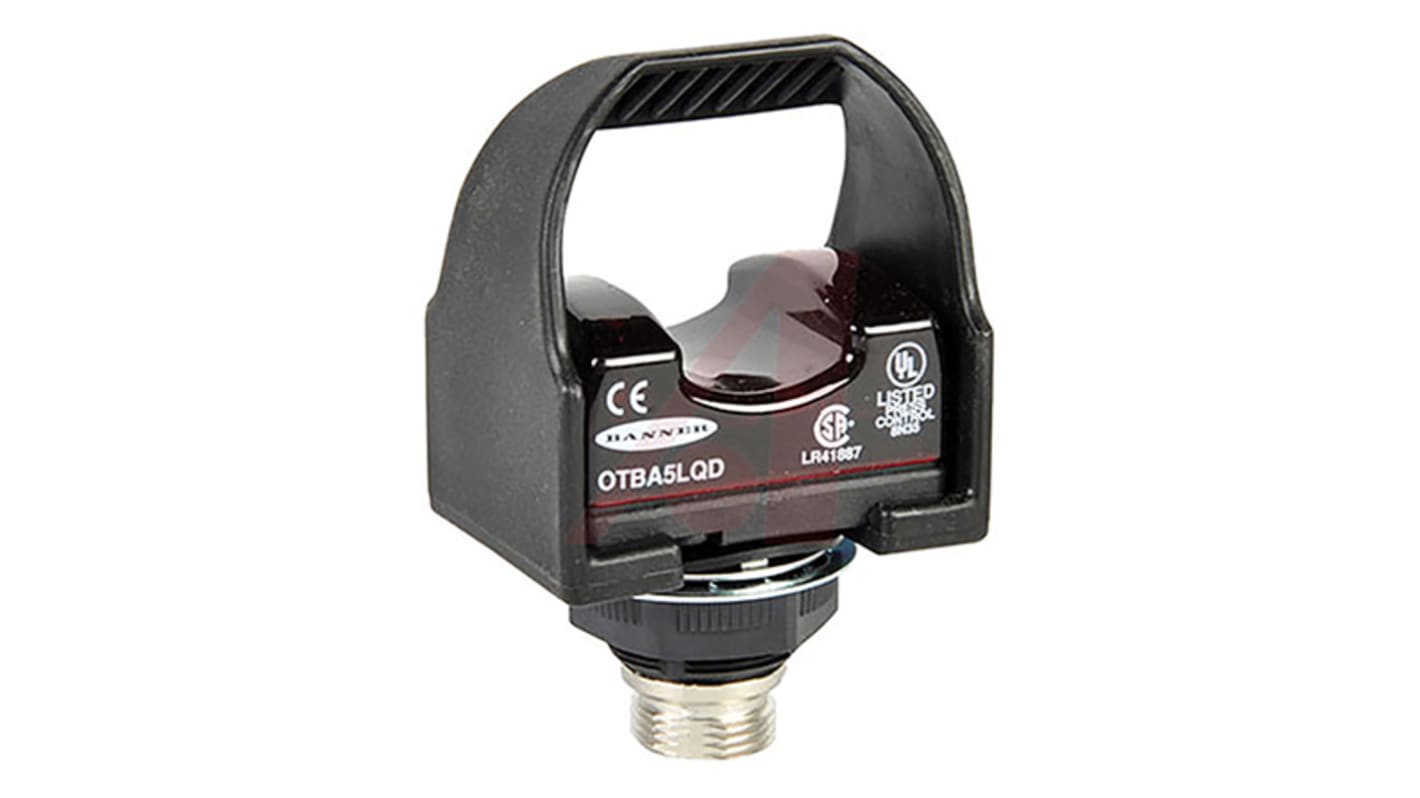

Banner OTB Series Illuminated Push Button Switch, Momentary, Panel, 1-3/16 in Cutout, SPDT, IP66

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩243,723.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 4월 20일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩243,723.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
861-4543
제조사 부품 번호:
OTBA5QD
제조업체:
Banner
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Banner

Product Type

Push Button Switch

Switch Operation

Momentary

Illuminated

Yes

Panel Cutout Size

1-3/16 in

Series

OTB

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

5-Conductor Cable

IP Rating

IP66

Minimum Operating Temperature

-20°C

Switch Configuration

SPDT

Maximum Operating Temperature

50°C

Standards/Approvals

ANSI B11LR41887-24E71083, OSHA

Opto Touch Switch


The Turck Banner OTB series of touch-activated photoelectric switches are designed to replace capacitive touch switches and mechanical push buttons.

The OTB series of touch button switches are highly resistant to EMI, RFI and ambient light interference.

Contact configuration SPDT 1 x N/O, 1 x N/C

LED indication of ’power on’ and ’output activated’

Black polysulfone (VALOX)housing, epoxy-encapsulated electronics, IP67

Switching current : 7A max. (resistive load)

Operating temperature range: -20 to +50 °C

'Mechanical life: Fifty million operations.

Ambient light immunity 120000 lux

Reduces the risk of repetitive strain injuries

Mounting M30 thread, nuts/washer included

Dimension (mm): 60 x 44 x 36 LWH (excluding threaded portion)

Zero Force & Opto Touch Switches


Actuated by sensors using patented Field Effect Technology which converts the touch of the operators hand into an electrical output. The two sensors have to be touched within 0.2 seconds of each other and can differentiate between a person's hand and most solid objects/substances, as well as resistance to accidental actuation via clothing, fluid, splashes etc.,There are built in diagnostic safeguards for power-up protection, foreign object intervention and film/deposit interference which all result in LED indication.
