Bulgin Push Button Switch, Momentary, Panel Mount, 16.2mm Cutout, DPDT, 50V
- RS 제품 번호:
- 861-0359
- Distrelec 제품 번호:
- 135-07-423
- 제조사 부품 번호:
- MP0045/3D0NN000
- 제조업체:
- Bulgin
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩37,299.20
재고있음
- 88 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩37,299.20 |
| 10 - 24 | ₩36,190.00 |
| 25 - 49 | ₩35,062.00 |
| 50 - 99 | ₩34,328.80 |
| 100 + | ₩33,501.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 861-0359
- Distrelec 제품 번호:
- 135-07-423
- 제조사 부품 번호:
- MP0045/3D0NN000
- 제조업체:
- Bulgin
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bulgin | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cut Out Diameter | 16.2mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Silver | |
| Contact Configuration | DPDT | |
| Voltage Rating | 50V | |
| Contact Current Rating | 3 A | |
| Contact Material | Silver | |
| Manufacturer Part No. | MP0045/3D0NN000 | |
| Terminal Type | Solder | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bulgin | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 16.2mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration DPDT | ||
Voltage Rating 50V | ||
Contact Current Rating 3 A | ||
Contact Material Silver | ||
Manufacturer Part No. MP0045/3D0NN000 | ||
Terminal Type Solder | ||
- COO (Country of Origin):
- CN
Stainless Steel Vandal Resistant Pushbutton
Prominent, domed and low profile versions
IP66 & 68 front panel sealing options
Vandal resistant stainless steel switch body and button
High resistance to wear and tear, corrosion and harsh use in hostile environments
IP66 & 68 front panel sealing options
Vandal resistant stainless steel switch body and button
High resistance to wear and tear, corrosion and harsh use in hostile environments

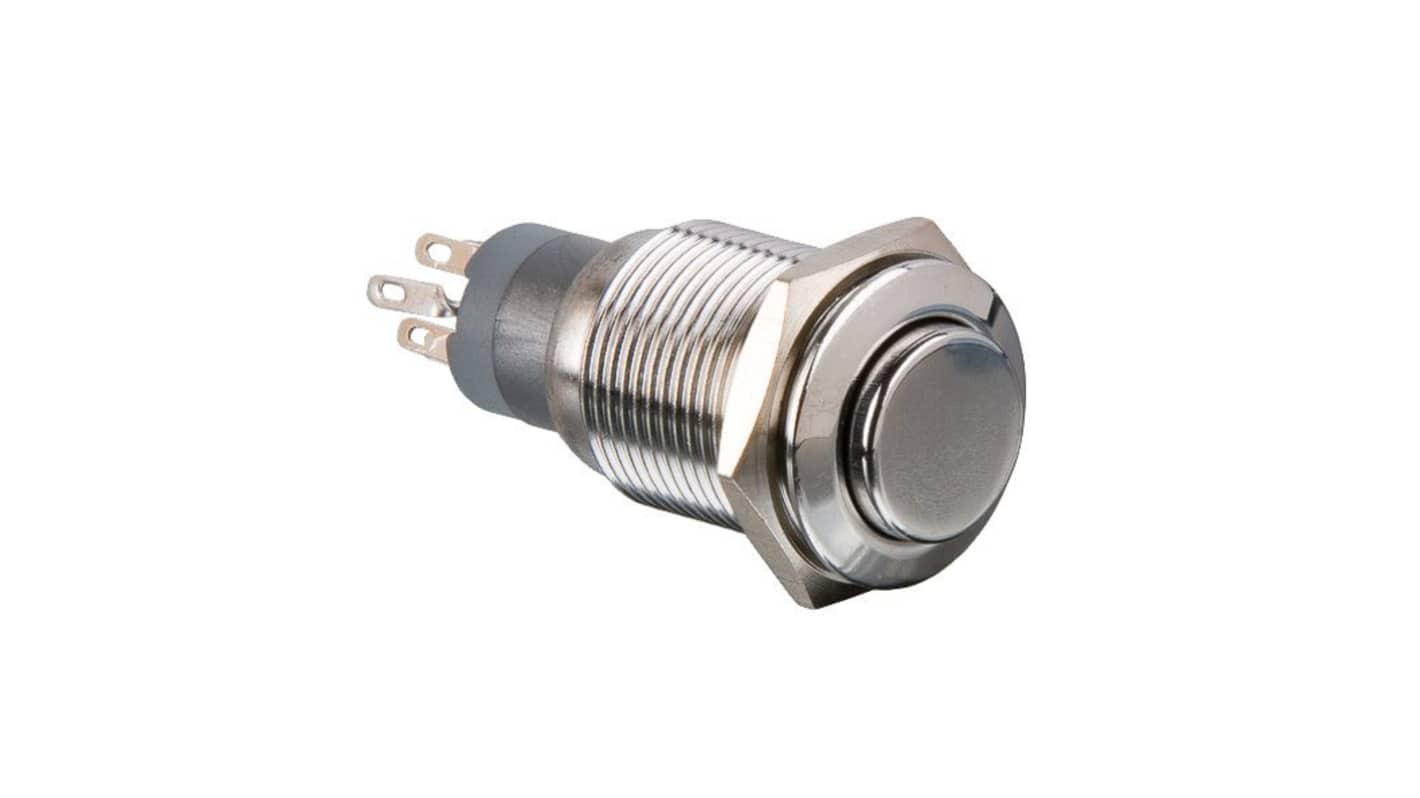

Bulgin Push Button Switch, 16.2mm Panel Cut Out Diameter, Momentary Switch Operation - MP0045/3D0NN000
This push button switch is a momentary type, designed for efficient electrical control. It features a robust panel mount design with a cut-out diameter of 16.2mm, making it suitable for various applications in the automation and electrical industries. The durable construction includes a silver push button and a reliable DPDT contact configuration, ensuring effective performance under demanding conditions.
Features & Benefits
• DPDT configuration supports versatile circuit connections
• Rated for 50V, accommodating various voltage needs
• 3A current capacity ensures compatibility with multiple devices
• Quality contact material enhances reliability and durability
• Rated for 50V, accommodating various voltage needs
• 3A current capacity ensures compatibility with multiple devices
• Quality contact material enhances reliability and durability
Applications
• Ideal for control panels in industrial machinery
• Used in automation systems requiring robust push-button interfaces
• Suitable for tasks involving circuit switching and control
• Utilised in mechanical equipment for user input operations
• Used in automation systems requiring robust push-button interfaces
• Suitable for tasks involving circuit switching and control
• Utilised in mechanical equipment for user input operations
How does the momentary action function in practical applications?
The momentary action enables the switch to activate only while being pressed, providing precise control for temporary tasks such as circuit engagement or vehicle control, enhancing user safety and efficiency.
What benefits do the DPDT contacts provide in switching applications?
The DPDT configuration allows for two separate circuits to be controlled simultaneously, giving flexibility in complex wiring setups and enabling the user to alternate between different electrical functions.
What is the significance of the silver contact material in this switch?
Silver contacts offer low resistance and excellent conductivity, resulting in reduced heat generation and increased reliability, which is crucial for switches operating frequently or under high loads.
How can I ensure proper installation of the solder terminal switch?
To achieve optimal performance, connect appropriately sized wires to the solder terminals, ensuring a secure connection. It is also essential to observe the voltage and current ratings specified in the documentation for safe operation.
What temperature range is this switch designed to operate within?
This push button switch is rated for operation between -20°C and +55°C, making it suitable for both low and moderately high-temperature environments typically encountered in industrial settings.
