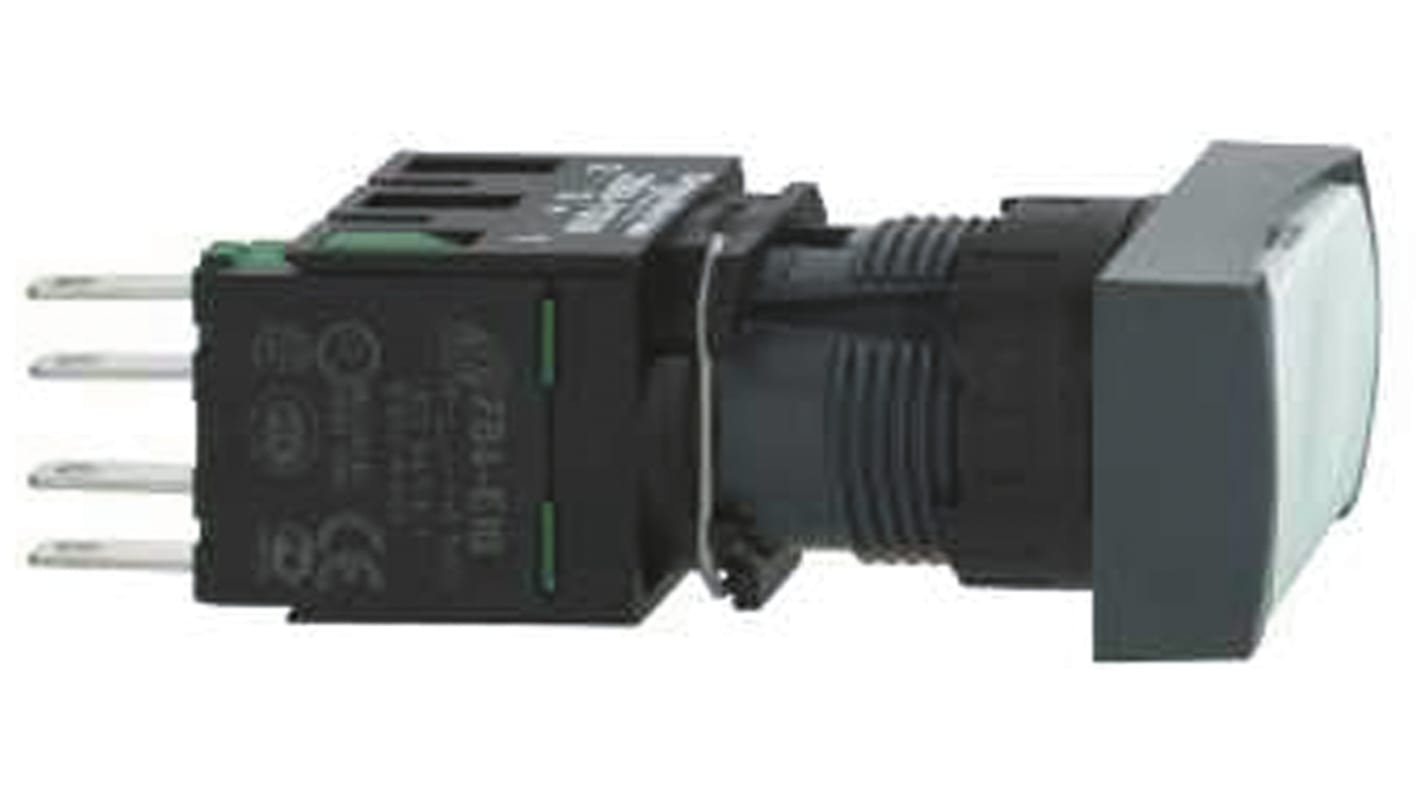

Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 16 mm Cutout, 1 NO, White LED, IP65
- RS 제품 번호:
- 817-3210
- 제조사 부품 번호:
- XB6DA11B
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩30,098.80
재고있음
- 17 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩30,098.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 817-3210
- 제조사 부품 번호:
- XB6DA11B
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Actuator Colour | White | |
| Product Type | Push Button Switch | |
| Switch Operation | Spring Return | |
| Illuminated | No | |
| Panel Cutout Size | 16 mm | |
| Series | Harmony | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| LED Colour | White | |
| Terminal Type | Quick Connect | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Rectangular | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | 1 NO | |
| Standards/Approvals | EN/IEC 60947-5-1JIS C 4520CSA C22.2 No 14EN/IEC 60947-1JIS C 852EN/IEC 60947-5-5UL 508 | |
| Width | 24mm | |
| Length | 57mm | |
| Height | 18mm | |
| Better World Product | Yes | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Actuator Colour White | ||
Product Type Push Button Switch | ||
Switch Operation Spring Return | ||
Illuminated No | ||
Panel Cutout Size 16 mm | ||
Series Harmony | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
LED Colour White | ||
Terminal Type Quick Connect | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Rectangular | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration 1 NO | ||
Standards/Approvals EN/IEC 60947-5-1JIS C 4520CSA C22.2 No 14EN/IEC 60947-1JIS C 852EN/IEC 60947-5-5UL 508 | ||
Width 24mm | ||
Length 57mm | ||
Height 18mm | ||
Better World Product Yes | ||
Legend Blank | ||
- COO (Country of Origin):
- FR
Pushbuttons, Spring Return
Square, rectangular and cylindrical heads
Flush or projecting heads
Wide range of contacts
Spring return
IP65 protection
