EAO 82 Series Push Button Switch, Momentary, Panel, 22 mm Cutout, SPDT, IP65, IP67, 24 V 250 V
- RS 제품 번호:
- 811-4034
- Distrelec 제품 번호:
- 301-27-204
- 제조사 부품 번호:
- 82-6551.1000
- 제조업체:
- EAO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩24,665.60
재고있음
- 579 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩24,665.60 |
| 10 - 24 | ₩23,932.40 |
| 25 - 49 | ₩23,180.40 |
| 50 - 149 | ₩22,710.40 |
| 150 + | ₩22,259.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 811-4034
- Distrelec 제품 번호:
- 301-27-204
- 제조사 부품 번호:
- 82-6551.1000
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Switch Operation | Momentary | |
| Actuator Colour | Natural | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | 82 | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| IP Rating | IP65, IP67 | |
| Contact DC Voltage | 24V | |
| Contact AC Voltage | 250V | |
| Actuator Style | Flat | |
| Minimum Operating Temperature | -30°C | |
| Switch Configuration | NC, NO | |
| Maximum Operating Temperature | 70°C | |
| Length | 34.5mm | |
| Standards/Approvals | UL, CE | |
| Switch Contact Current | 1 A | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Switch Operation Momentary | ||
Actuator Colour Natural | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series 82 | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
IP Rating IP65, IP67 | ||
Contact DC Voltage 24V | ||
Contact AC Voltage 250V | ||
Actuator Style Flat | ||
Minimum Operating Temperature -30°C | ||
Switch Configuration NC, NO | ||
Maximum Operating Temperature 70°C | ||
Length 34.5mm | ||
Standards/Approvals UL, CE | ||
Switch Contact Current 1 A | ||
Legend Blank | ||
- COO (Country of Origin):
- CN

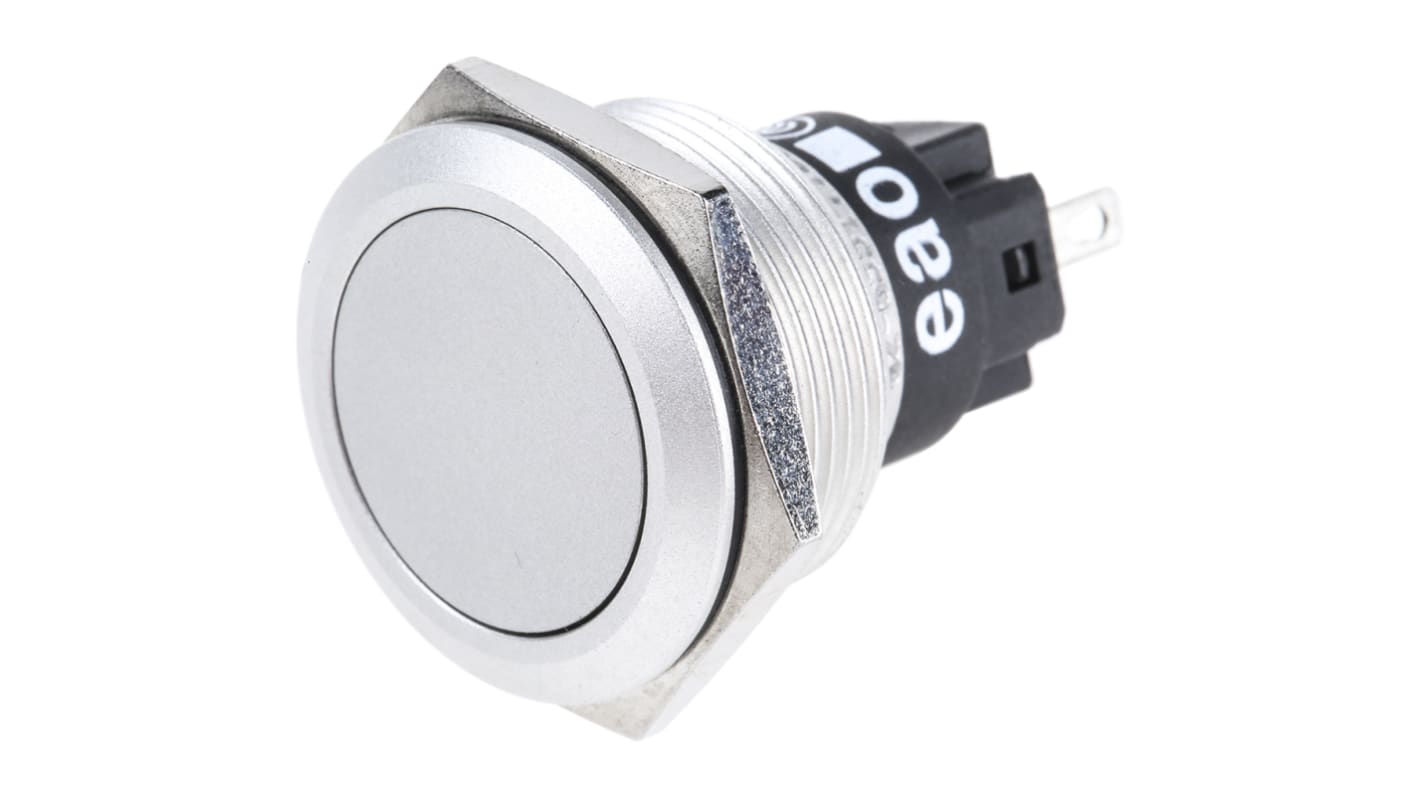

EAO Push Button Switch, 18g Weight, Silver Alloy Contacts - 82 Series - 82-6551.1000
Take charge of your industrial equipment operation with this push button switch from EAO. With a simple press on this unit, you can get your machine running in an instant. It's a momentary device, which means it only performs an action when held down. This makes it the right choice to control temporary or manual processes. The flat button profile ensures that it's not in the way to prevent accidental actuation. The switch weighs just 18g, so it places minimal strain on your setup.
Features & Benefits
• IP67 rating means it's fully dustproof and withstands submersion in 1m of water for up to 30 minutes
• Snap-action switching mechanism for an instant response to actuation
• Solder terminals offer a secure, vibration-proof link to your machine
• Switching voltage of 250V AC for use in low-power systems
• Metal housing is resistant to wear
Applications
• Transportation industry
• Medical equipment
• Process and packaging plants
What's the operating temperature range of this unit?
This component has a broad operating temperature range between -30°C and +70°C, so it's a reliable choice for challenging conditions.
