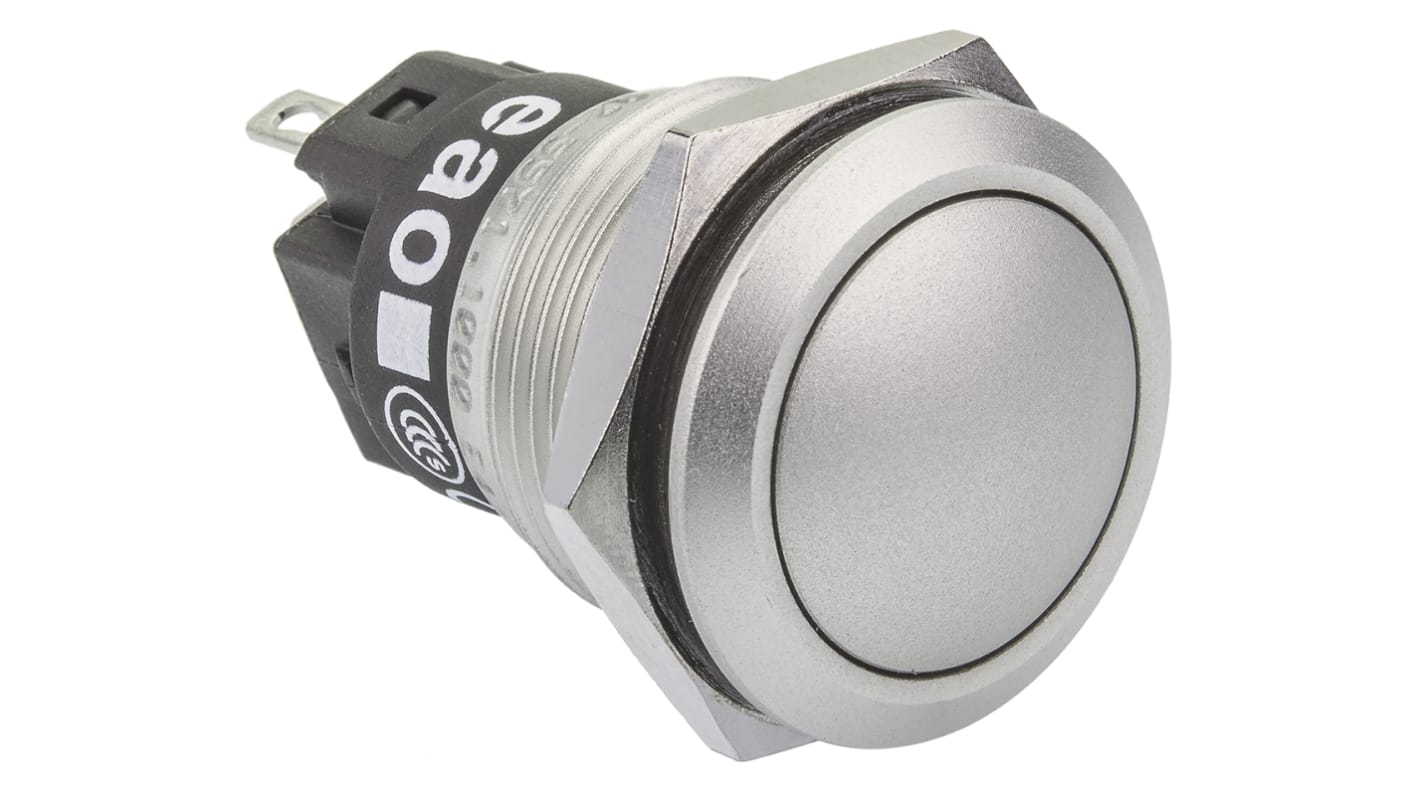

EAO 82 Series Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, 240V, IP65, IP67

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩23,462.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 14 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩23,462.40
10 - 24₩22,766.80
25 - 49₩22,052.40
50 - 149₩21,657.60
150 +₩21,168.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
811-4028
제조사 부품 번호:
82-5571.1000
제조업체:
EAO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EAO

Switch Operation

Momentary

Illuminated

No

Series

82

Panel Cut Out Diameter

19mm

Mounting Type

Panel Mount

Contact Configuration

SPDT

Voltage Rating

240V

Push Button Style

Dome

IP Rating

IP65, IP67

Contact Current Rating

3A

Contact Material

Silver Alloy

Manufacturer Part No.

82-5571.1000

Contact DC Voltage Rating

240V

Contact AC Voltage Rating

240V

Case Colour

Silver

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-30°C

Operating Temperature Range

-30°C to +70°C

Terminal Type

Plug In, Solder

COO (Country of Origin):
CN

EAO Series 82 Anti-Vandal Switches Non-Illuminated


Series 82 anti-vandal switches from EAO. The switches have an aesthetic design combined with a robust metal housing and conform to protection ratings; IK10 (physical attack) and IP67 (Dust and waterproof), making them ideal for use in public areas and harsh conditions. Three size versions are available for mounting into cut-outs of 16, 19 and 22mm.

Aluminium construction
Flat, convex and raised button types available
Excellent tactile switching action

Approvals

CE, UL
