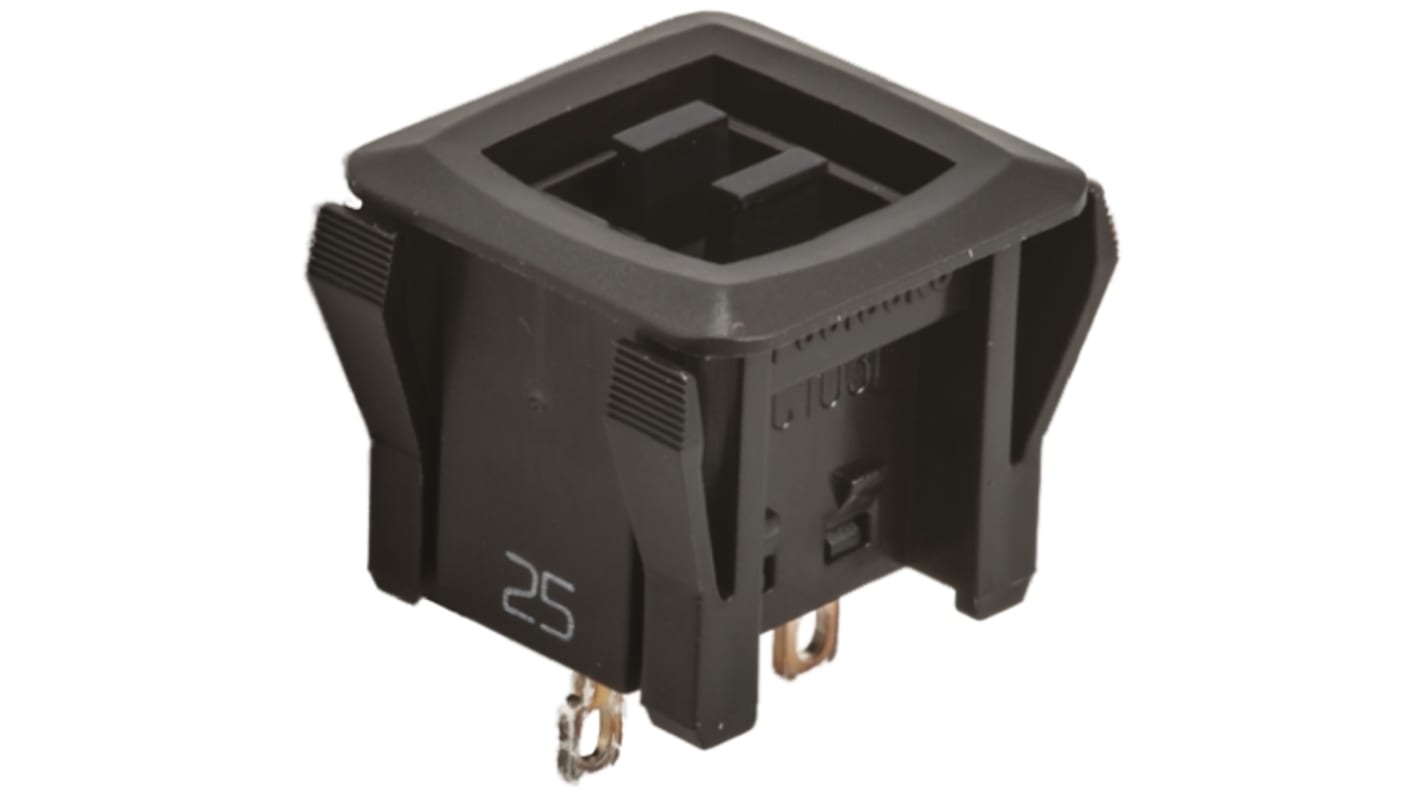

Copal Electronics Momentary Push Button Switch, Panel Mount, SPDT
- RS 제품 번호:
- 762-5798
- 제조사 부품 번호:
- SPC103F
- 제조업체:
- Copal Electronics
모든 Push Button Switches 열람하기
일시 품절-다음 입고 날짜는 17/05/2023 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
단가 Each
₩3,260.25
수량 | 한팩당 |
1 - 24 | ₩3,260.25 |
25 - 99 | ₩3,102.75 |
100 + | ₩2,835.00 |
- RS 제품 번호:
- 762-5798
- 제조사 부품 번호:
- SPC103F
- 제조업체:
- Copal Electronics
- COO (Country of Origin):
- CN
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
Fujisoku Push Button Switches – SP101, SPB101, SPC103 & LTM3-02 Series
The Fujisoku SP101, SPB101, SPC103 & LTM3-02 series are a range of non-illuminated Push Button switches with a momentary switching action. These single pole switches are available in a choice of styles, colour, bezel shapes and solder or connector terminals.
Designed to be panel mounted, these Push Button switches snap fit into panel cut-outs with a panel thickness of between 1.5 and 2.5mm, the fixing ribs on the switch body ensures a tight secure fit (full cut-out details are shown in the table below). They are suitable for use in many applications that require a Push Button switch with a compact body.
The SP101 and SPC103 switches feature a snap action mechanism that allows the user to operate with a light operating touch. Accessories for use with the SP101 Push Button switches include actuator buttons in a choice of white, red or black with 8mm, 10mm and 15mm diameters, see stock number 223-339 typically.
The SPB101 switches are Detector type switches with self cleaning contacts. They have a long stroke length and are 'on' in their normal state and 'off' when the actuator button is pushed.
The LTM3-02 Push Button switch incorporates a grey actuator button and features a dome type contact which provides the user with a sharp click operating feel.
Designed to be panel mounted, these Push Button switches snap fit into panel cut-outs with a panel thickness of between 1.5 and 2.5mm, the fixing ribs on the switch body ensures a tight secure fit (full cut-out details are shown in the table below). They are suitable for use in many applications that require a Push Button switch with a compact body.
The SP101 and SPC103 switches feature a snap action mechanism that allows the user to operate with a light operating touch. Accessories for use with the SP101 Push Button switches include actuator buttons in a choice of white, red or black with 8mm, 10mm and 15mm diameters, see stock number 223-339 typically.
The SPB101 switches are Detector type switches with self cleaning contacts. They have a long stroke length and are 'on' in their normal state and 'off' when the actuator button is pushed.
The LTM3-02 Push Button switch incorporates a grey actuator button and features a dome type contact which provides the user with a sharp click operating feel.
Momentary switching action
SPST or SPDT
Silver or gold contacts
Long or short travel (stroke)
SPST or SPDT
Silver or gold contacts
Long or short travel (stroke)
Note
The Push Button switches with connector terminals mate with JST connectors, suitable mating connectors are shown in the table above.
Momentary state is displayed in brackets, e.g. off - (on).
Suitable actuator buttons for use with the SPC103 switches are currently not available.
Momentary state is displayed in brackets, e.g. off - (on).
Suitable actuator buttons for use with the SPC103 switches are currently not available.
Fujisoku Push Button Switches
사양
속성 | 값 |
Switch Operation | Momentary |
Mounting Type | Panel Mount |
Contact Configuration | Single Pole Double Throw (SPDT) |
Contact Current Rating | 3 A@ 125/250 V ac, 3 A@ 30 V dc |
Manufacturer Part No. | SPC103F |
Terminal Type | Solder Tag |
Panel Cut Out Height | 16.1mm |
Panel Cut Out Width | 16.1mm |
