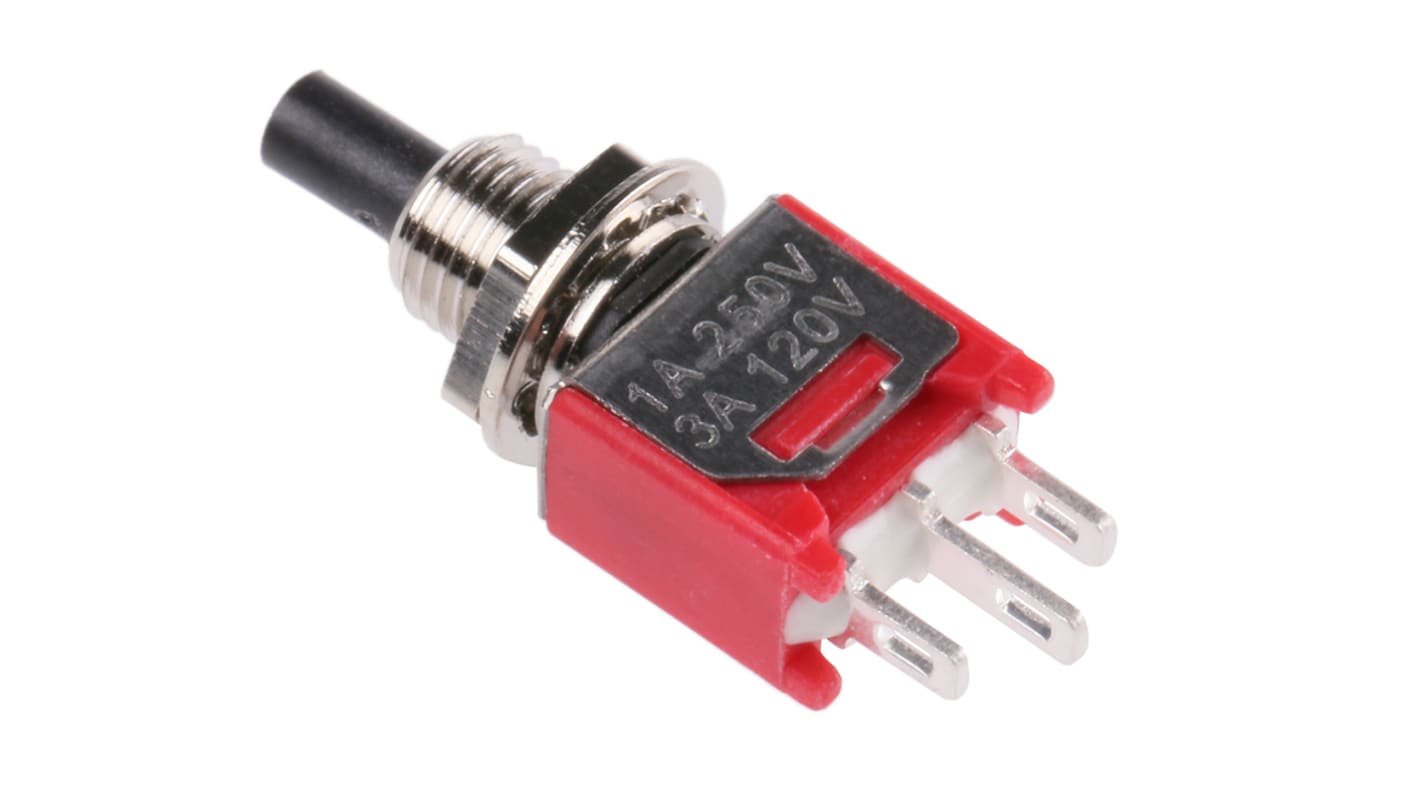

RS PRO Push Button Switch, Latching, Panel, 4.95 mm Cutout, SPST, Black LED, 28 V 120 V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩4,455.60

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 - 49₩4,455.60
50 - 99₩4,361.60
100 - 249₩4,230.00
250 - 1249₩4,117.20
1250 +₩3,402.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
734-6750
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Switch Operation

Latching

Actuator Colour

Black

Product Type

Push Button Switch

Illuminated

No

Panel Cutout Size

4.95 mm

Mount Type

Panel

Contact Configuration

SPST

LED Colour

Black

Terminal Type

Solder

Contact AC Voltage

120V

Contact DC Voltage

28V

Actuator Style

Cap

Maximum Operating Temperature

85°C

Switch Configuration

SPST

Standards/Approvals

No

Switch Contact Current

3 A

RS PRO Single Pole Single Throw (SPST) Latching Push Button Switch, 4.95 mm (Dia.), Panel Mounting, 32/50/125 V AC


Need an easy way to turn a circuit on and off? Turn to this single pole single throw (SPST) latching push button switch from RS PRO. It's easy to screw this component into place thanks to the threaded bushing on the front.

The component has solder terminals, so you can permanently secure it to your circuit setup. The silver-plated brass contact material is corrosion-resistant for use in harsh environments. This type of SPST latching switch is often used in telecommunication, instrumentation and medical equipment. Engineers have stringently tested this part for quality and reliability.

Features and Benefits


  • Black actuator colour

  • Dome actuator shape

  • Cap actuator type

  • Silver case colour

  • Contact AC voltage rating of 120 V, 250 V

  • Single Pole Single Throw (SPST) contact configuration

  • Contact current rating of 3 A at 120 V AC

  • Contact DC voltage rating of 28 V

  • Silver-plated brass contact material

  • Not illuminated

  • Panel mounting type

  • Panel cut out size of 4.95 mm (diameter)

  • Latching switch operation

  • Solder terminal type

  • Voltage rating of 32/50/125 V AC
