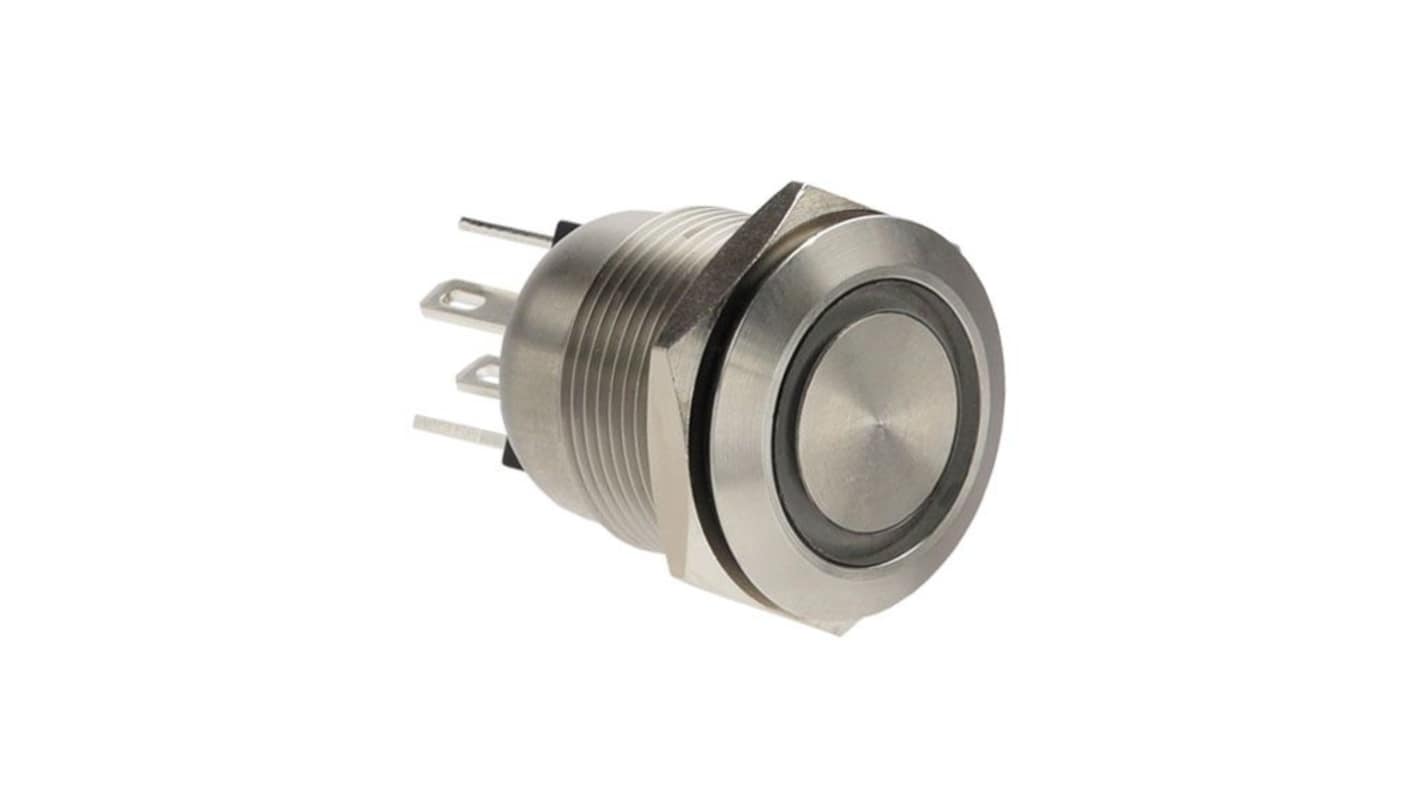

Bulgin MPI002 Series Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, SPST, Green, Blue LED, IP66, 24 V

RS 제품 번호:: 708-3059
Distrelec 제품 번호:: 303-26-303
제조사 부품 번호:: MPI002/28/D5
제조업체:: Bulgin

Bulgin MPI002 Series Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, SPST, Green, Blue LED, IP66, 24 V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩75,124.80

재고있음

추가로 2026년 1월 19일 부터 20 개 단위 배송
추가로 2026년 1월 26일 부터 50 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 14	₩75,124.80
15 - 49	₩72,887.60
50 - 99	₩70,612.80
100 +	₩69,071.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 708-3059
Distrelec 제품 번호:: 303-26-303
제조사 부품 번호:: MPI002/28/D5
제조업체:: Bulgin

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Bulgin
	Actuator Colour	Silver
	Product Type	Push Button Switch
	Switch Operation	Momentary
	Illuminated	Yes
	Panel Cutout Size	19.2 mm
	Series	MPI002
	Mount Type	Panel
	Contact Configuration	SPST
	Terminal Type	Solder
	LED Colour	Green, Blue
	IP Rating	IP66
	Minimum Operating Temperature	-30°C
	Actuator Style	Button
	Contact DC Voltage	24V
	Maximum Operating Temperature	70°C
	Switch Configuration	SPST
	Switch Contact Current	50 mA
	Standards/Approvals	RoHS
	Legend	Blank

	모두 선택
	브랜드 Bulgin
	Actuator Colour Silver
	Product Type Push Button Switch
	Switch Operation Momentary
	Illuminated Yes
	Panel Cutout Size 19.2 mm
	Series MPI002
	Mount Type Panel
	Contact Configuration SPST
	Terminal Type Solder
	LED Colour Green, Blue
	IP Rating IP66
	Minimum Operating Temperature -30°C
	Actuator Style Button
	Contact DC Voltage 24V
	Maximum Operating Temperature 70°C
	Switch Configuration SPST
	Switch Contact Current 50 mA
	Standards/Approvals RoHS
	Legend Blank

Datasheet - Stainless Steel Illuminated Vandal Resistant Switches MPI001 & MPI002 Series

COO (Country of Origin):: TN

Bulgin MPI002 Series Push Button Switch, 19.2mm Panel Cut Out Diameter, 24V Voltage Rating - MPI002/28/D5

This push button switch is designed for panel mounting and is particularly suitable for industrial applications. With a robust stainless steel construction and a 19.2mm cut-out diameter, it offers a momentary action for reliable function and long-term performance in challenging environments.

Features & Benefits

• Momentary action ensures precise operation for control applications

• IP66 rating protects against dust and water ingress

• Stainless steel body enhances durability and corrosion resistance

• SPST contact configuration for straightforward on/off switching

• Safe for use within a voltage rating of 24V DC and 50mA

Applications

• Used for control panels in automation systems

• Suitable for electrical equipment requiring momentary operation

• Employed in user interfaces where visibility is crucial

• Ideal for harsh environments due to its robust design

How does the construction material impact the switch's performance?

The stainless steel construction provides increased durability and corrosion resistance, making it suitable for various industrial applications that may expose it to harsh conditions.

What is the operational temperature range for this product?

The operating temperature range spans from -30°C to +70°C, ensuring functionality in both very cold and hot environments.

What LED configurations are available for visibility?

It features a combination of green and blue LED illumination, providing clear visual feedback for switching applications even in low-light scenarios.

Stainless Steel Vandal Resistant Illuminated Pushbutton

Vandal resistant stainless steel switch body and button

Dot or ring illumination

Single pole, push to make

Bright Daylight LEDs

Separate LED terminals

750,000 mechanical operations minimum

Warning

Illumination Voltage:
Suffix
/6 → 6Vdc
/12 → 12Vdc
/24 → 24Vdc
/no suffix → The resistor is not installed. The user must select and connect an appropriate resistor in series.
See the datasheet for more details.
