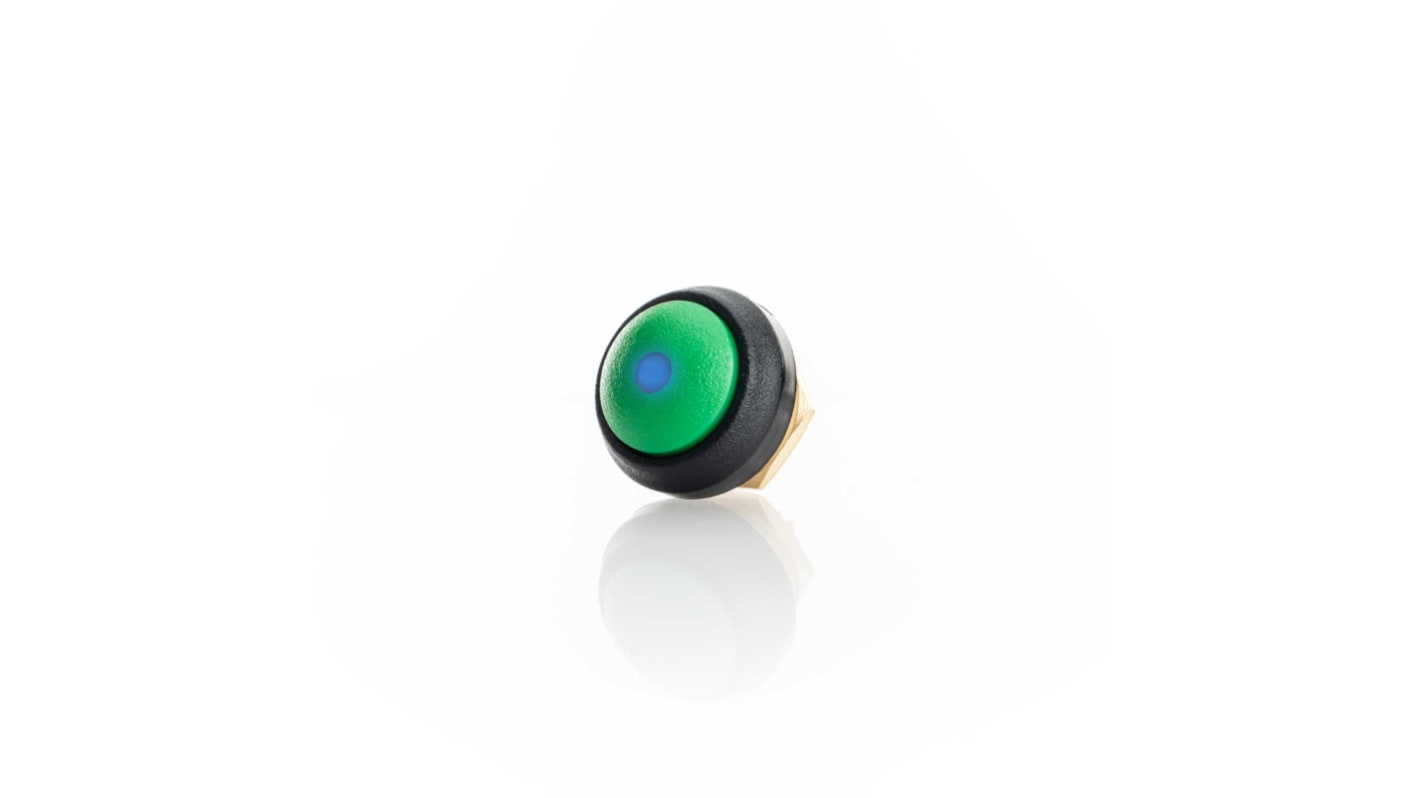

ITW Switches 48 Series Illuminated Push Button Switch, Panel, 13.6 mm Cutout Green, SPST, IP67

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩26,376.40

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 44 개 unit(s)이 배송 준비 됨
수량
한팩당
1 - 12₩26,376.40
13 - 24₩25,718.40
25 +₩25,323.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
702-7027
제조사 부품 번호:
48-1-RB-R-GR-B
제조업체:
ITW Switches
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ITW Switches

Product Type

Push Button Switch

Illuminated

Yes

Series

48

Cutout Diameter

13.6mm

Mount Type

Panel

Push Button Colour

Green

Contact Configuration

SPST

Push Button Style

Round

Terminal Type

Solder

IP Rating

IP67

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

COO (Country of Origin):
TW

ITW Push Button Switch


The ITW 48 series electromechanical 1-pole on-off push button switch. It is a panel-sealed push button switch with centre-spot and ring-style LED illumination options. The switching current rate is up to 250mA. It is designed to easily mount into the panels with a thickness range of 0.5mm to 3.0mm. It supports momentary switch operation with a red LED.

Features and Benefits


• Ease to use

• Gold is used as contact material

• Long life up to 100,000 life cycles

• Operating temperature ranges between -40°C and 85°C

• Panel type mounting

• Rugged construction with panel sealing

• Voltage rating is 12VDC

Applications


• Food processing equipment

• Industrial machinery

• Medical equipment

• Military equipment

• Outdoor controls

• Security equipment

• Transportation equipment

Certifications


• IP67 rating

48 Series IP67 Sealed


Rugged sealed pushbutton switches with various options of termination type and LED illumination.

Long-life (100,000 ops) gold-plated SPNO contacts

Rating 250mA @ 12Vdc, 100mA 48Vdc

IP67 panel sealing

17.4mm diameter, 13.6mm panel mounting cut-out

Suitable for panel thickness of 0.5 to 3.0mm

ITW Sealed
