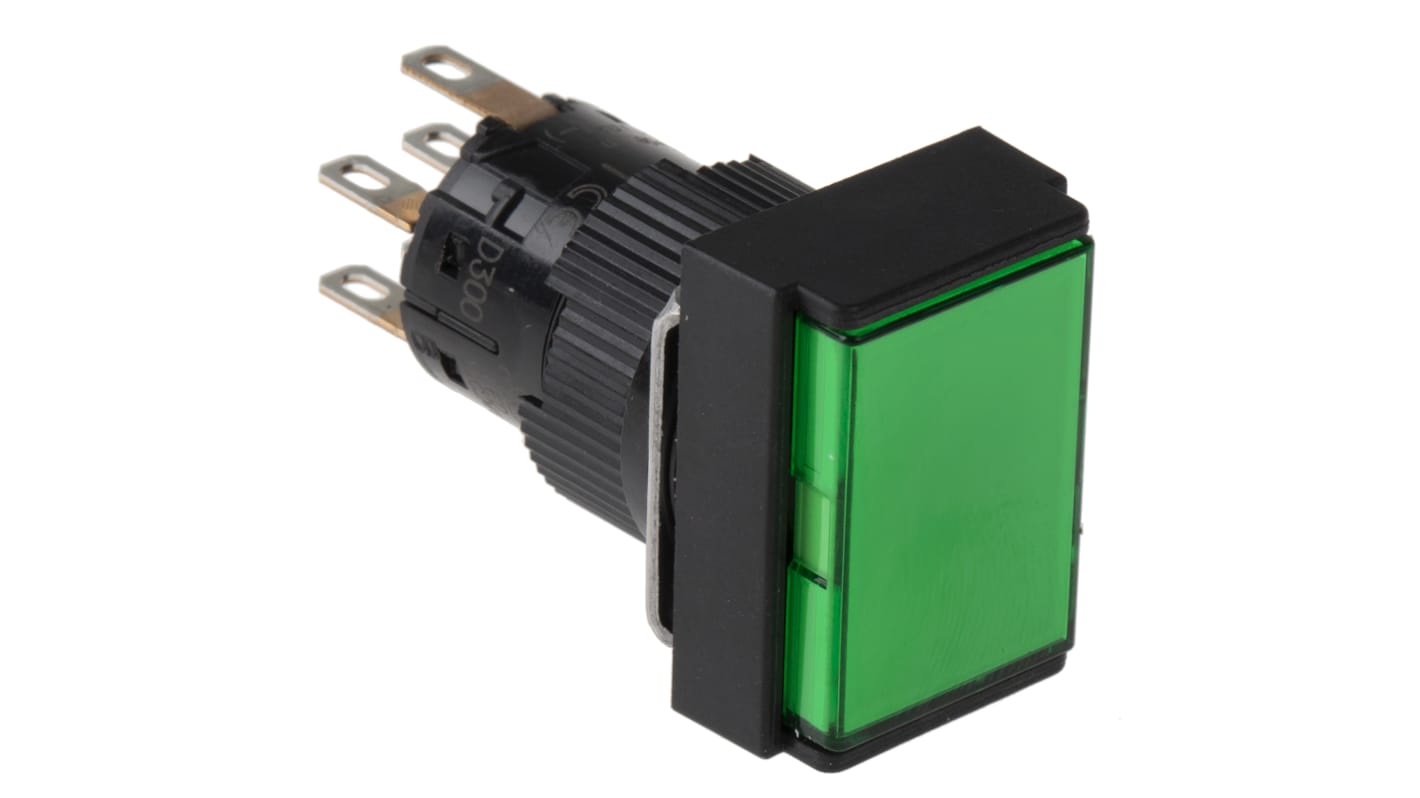

Schneider Electric Harmony XB6E Series Illuminated Push Button Switch, Spring Return, Panel, 16 mm Cutout, DPDT, Green

RS 제품 번호:: 610-2461
제조사 부품 번호:: XB6EDW3B2P
제조업체:: Schneider Electric

Schneider Electric Harmony XB6E Series Illuminated Push Button Switch, Spring Return, Panel, 16 mm Cutout, DPDT, Green

Subtotal (1 unit)*

₩37,017.20

재고있음

19 개 단위 배송 준비 완료
추가로 2026년 2월 20일 부터 20 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩37,017.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 610-2461
제조사 부품 번호:: XB6EDW3B2P
제조업체:: Schneider Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Actuator Colour	Green
	Product Type	Push Button Switch
	Switch Operation	Spring Return
	Illuminated	Yes
	Series	Harmony XB6E
	Panel Cutout Size	16 mm
	Mount Type	Panel
	Contact Configuration	DPDT
	LED Colour	Green
	Terminal Type	Quick Connect
	IP Rating	IP65
	Actuator Style	Rectangular
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	55°C
	Switch Configuration	2 CO
	Height	3.0cm
	Standards/Approvals	IEC 60947-1CSA C22.2 No 14JIS C 852UL 508JIS C 4520IEC 60947-5-1
	Width	9.5 cm
	Length	20cm
	Legend	Blank

	모두 선택
	브랜드 Schneider Electric
	Actuator Colour Green
	Product Type Push Button Switch
	Switch Operation Spring Return
	Illuminated Yes
	Series Harmony XB6E
	Panel Cutout Size 16 mm
	Mount Type Panel
	Contact Configuration DPDT
	LED Colour Green
	Terminal Type Quick Connect
	IP Rating IP65
	Actuator Style Rectangular
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 55°C
	Switch Configuration 2 CO
	Height 3.0cm
	Standards/Approvals IEC 60947-1CSA C22.2 No 14JIS C 852UL 508JIS C 4520IEC 60947-5-1
	Width 9.5 cm
	Length 20cm
	Legend Blank

COO (Country of Origin):: CN

Schneider Electric Harmony XB6E Series Push Button, Illuminated, IP65 - XB6EDW3B2P

This illuminated push button is designed for panel installation. The push button features a rectangular shape and green colour, making it easily identifiable. With a panel cut-out diameter of 16mm, it suits various control applications in automation and electrical environments. It operates at a rated supply voltage of 24V DC, ensuring reliable performance in demanding conditions.

Features & Benefits

• Constructed with an integral LED for clear visibility

• Features a spring return operation for ease of use

• Equipped with gold-flashed silver contacts for durability

• IP65 rated for protection against dust and moisture

• Supports quick connect and solder terminal types for flexibility

• Capable of withstanding up to 1 million mechanical cycles

Applications

• Ideal for control panels in industrial machinery

• Used for signalling in automation systems

• Suitable for lighting control in commercial spaces

• Employed in circuits requiring a reliable switching action

What is the recommended temperature range for operation?

The push button operates effectively within a temperature range of -10°C to +55°C, ensuring functionality in various environments.

How does the contact composition enhance performance?

Utilising gold-flashed silver contacts reduces wear and improves conductivity, leading to enhanced electrical performance and a longer lifespan.

Can this product be installed in any position?

Yes, this push button is designed for operation in any position, offering versatility for various installation configurations.

What type of protection does this product offer against environmental factors?

Rated IP65, it provides excellent protection against dust ingress and water jets, making it suitable for harsh working conditions.
