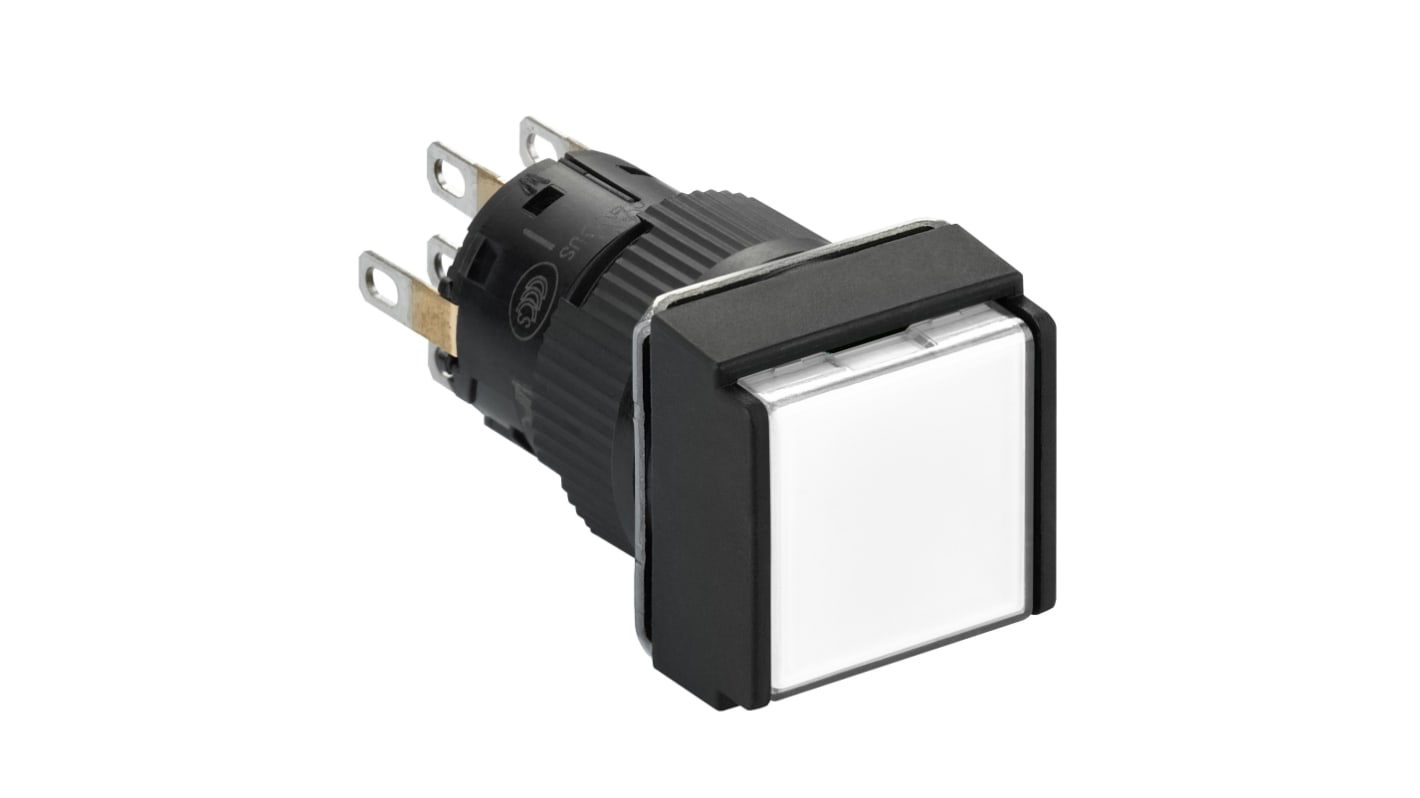

Schneider Electric Harmony Series Illuminated Push Button Switch, Snap Action, Panel, 16 mm Cutout, DPDT, White LED,
- RS 제품 번호:
- 610-1783
- 제조사 부품 번호:
- XB6ECW1B2P
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩38,902.50
재고있음
- 추가로 2026년 5월 11일 부터 110 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩38,902.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 610-1783
- 제조사 부품 번호:
- XB6ECW1B2P
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Actuator Colour | White | |
| Product Type | Push Button Switch | |
| Switch Operation | Snap Action | |
| Illuminated | Yes | |
| Panel Cutout Size | 16 mm | |
| Series | Harmony | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| LED Colour | White | |
| Terminal Type | Quick Connect | |
| IP Rating | IP65 | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Square | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC 60947-1IEC 60947-5-1IEC 60947-5-5JIS C 4520 and 852UL 508CSA C22-2 n° 14 | |
| Height | 40mm | |
| Switch Contact Current | 3A | |
| Width | 22mm | |
| Better World Product | Yes | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Actuator Colour White | ||
Product Type Push Button Switch | ||
Switch Operation Snap Action | ||
Illuminated Yes | ||
Panel Cutout Size 16 mm | ||
Series Harmony | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
LED Colour White | ||
Terminal Type Quick Connect | ||
IP Rating IP65 | ||
Contact AC Voltage 250V ac | ||
Actuator Style Square | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC 60947-1IEC 60947-5-1IEC 60947-5-5JIS C 4520 and 852UL 508CSA C22-2 n° 14 | ||
Height 40mm | ||
Switch Contact Current 3A | ||
Width 22mm | ||
Better World Product Yes | ||
Legend Blank | ||
- COO (Country of Origin):
- CN
Schneider Electric Push Button, Square, -25°C to +55°C Operating Temperature Range - Harmony XB6 Series - XB6ECW1B2P
Need to know when your equipment's running? Stay up to speed with this white push button from Schneider Electric. It comes with an integral LED that illuminates to show when an attached machine is on. The plug-in, quick-connect terminal lets you swiftly mount the unit in your panel without complex tools. For ease of assembly, install it in a 16mm cut-out in your panel. As this button resists shock and vibration, it stays secure even if things get shaky.
Features & Benefits
• Can be mounted in all positions for flexible assembly
• Withstands harsh conditions thanks to an operating temperature range of -25°C to +55°C
• Gold-flashed silver contacts are resistant to corrosion for reliable use in humid settings
• IP65 rating indicates protection against dust and low-pressure jets of water
Applications
• Safety systems
• Packaging facilities
• Oil and gas industry
• Bottling plants
How durable is this push button?
It has a mechanical service life of 1 million cycles, so you can count on it for the long haul.
How do I reset this button?
This button has a spring return mechanism so it automatically returns to its original position without the need for manual resetting.
Illuminated Pushbuttons, Flush Square Head, Spring Return, LED
Square flush mount head with contact block
2NO + 2NC contacts
24Vdc integral LED
IP65 protection
