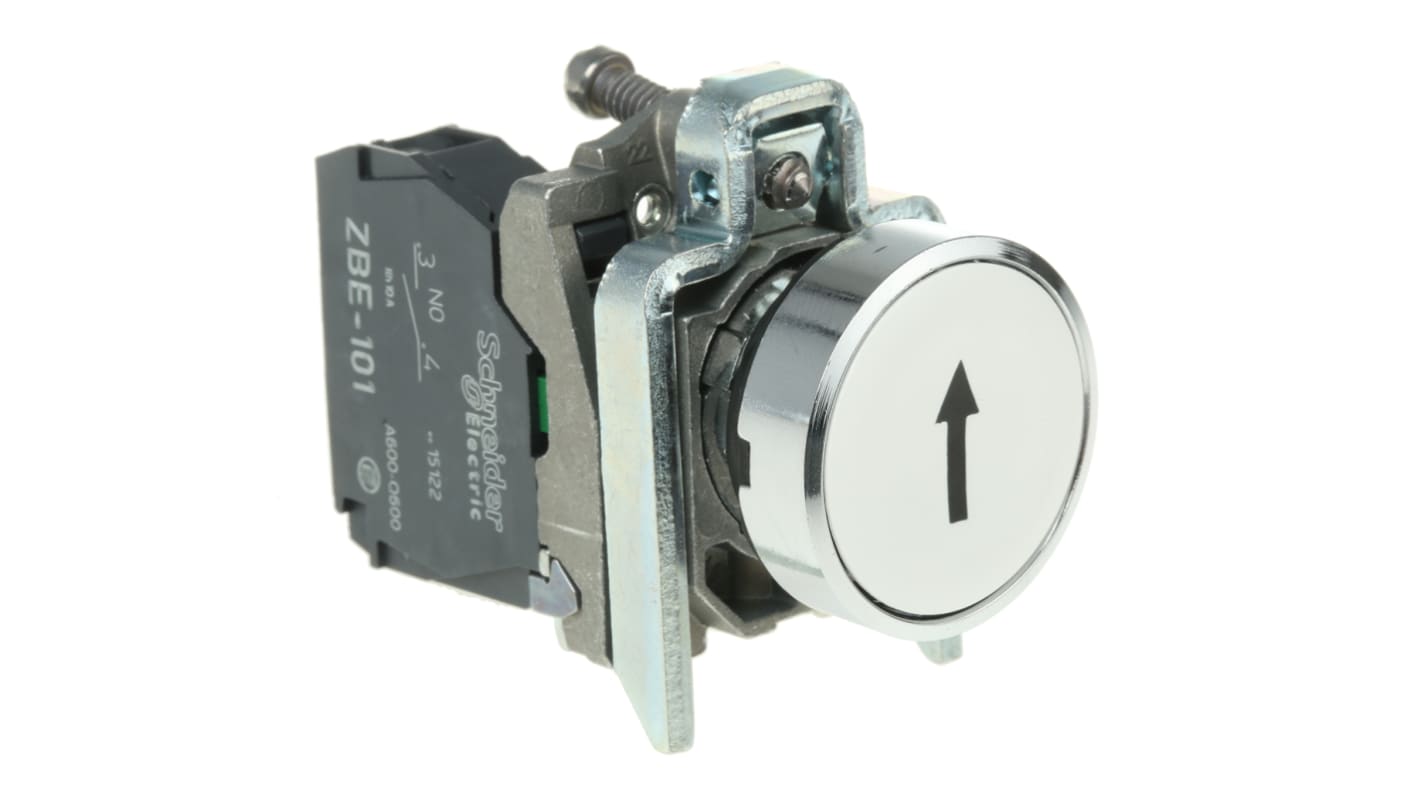

Schneider Electric Harmony XB4 Series Push Button Switch, Slide, Panel, 22 mm Cutout, SPST, White LED, IP66, IP67, IP69K
- RS 제품 번호:
- 609-5307
- Distrelec 제품 번호:
- 303-02-487
- 제조사 부품 번호:
- XB4BA3341
- 제조업체:
- Schneider Electric
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 609-5307
- Distrelec 제품 번호:
- 303-02-487
- 제조사 부품 번호:
- XB4BA3341
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Switch Operation | Slide | |
| Product Type | Push Button Switch | |
| Actuator Colour | White | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | Harmony XB4 | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | White | |
| Terminal Type | Screw | |
| IP Rating | IP66, IP67, IP69K | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Round | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Switch Contact Current | 12 A | |
| Length | 100mm | |
| Legend | Arrows (Symbol) | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Switch Operation Slide | ||
Product Type Push Button Switch | ||
Actuator Colour White | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series Harmony XB4 | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour White | ||
Terminal Type Screw | ||
IP Rating IP66, IP67, IP69K | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Round | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Switch Contact Current 12 A | ||
Length 100mm | ||
Legend Arrows (Symbol) | ||
- COO (Country of Origin):
- FR
Schneider Electric Harmony XB4 Series Push Button, 600V Maximum AC Voltage, 22mm Panel Cut Out Diameter - XB4BA3341
This push button by Schneider Electric, is an essential component in various industrial settings. With a contact configuration of SPST, this round push button ensures reliable operation in demanding environments.
Features & Benefits
• Momentary push button design for easy operation
• Panel mount installation for convenient use
• White round push button with a stylish appearance
• Screw terminal for secure connections
• 22mm panel cut-out diameter for compatibility with various equipment
Applications
• Ideal for use in control panels for automation systems
• Suitable for machinery operation control in manufacturing plants
Can it be used in outdoor applications?
Yes, this push button is rated IP66 for protection against dust and water ingress.
Is it suitable for high voltage applications?
With a maximum AC/DC voltage of 600V, this push button is suitable for high voltage systems.
What type of contacts does it have?
The XB4BA3341 push button features 1 NO contact for reliable switching functionality.
How durable is this push button?
With a mechanical durability of 10,000,000 cycles, this push button is built to last in heavy-duty applications.
What standards does it comply with?
This push button conforms to various standards, including EN/IEC 60947-1 and UL 508 for quality assurance.
