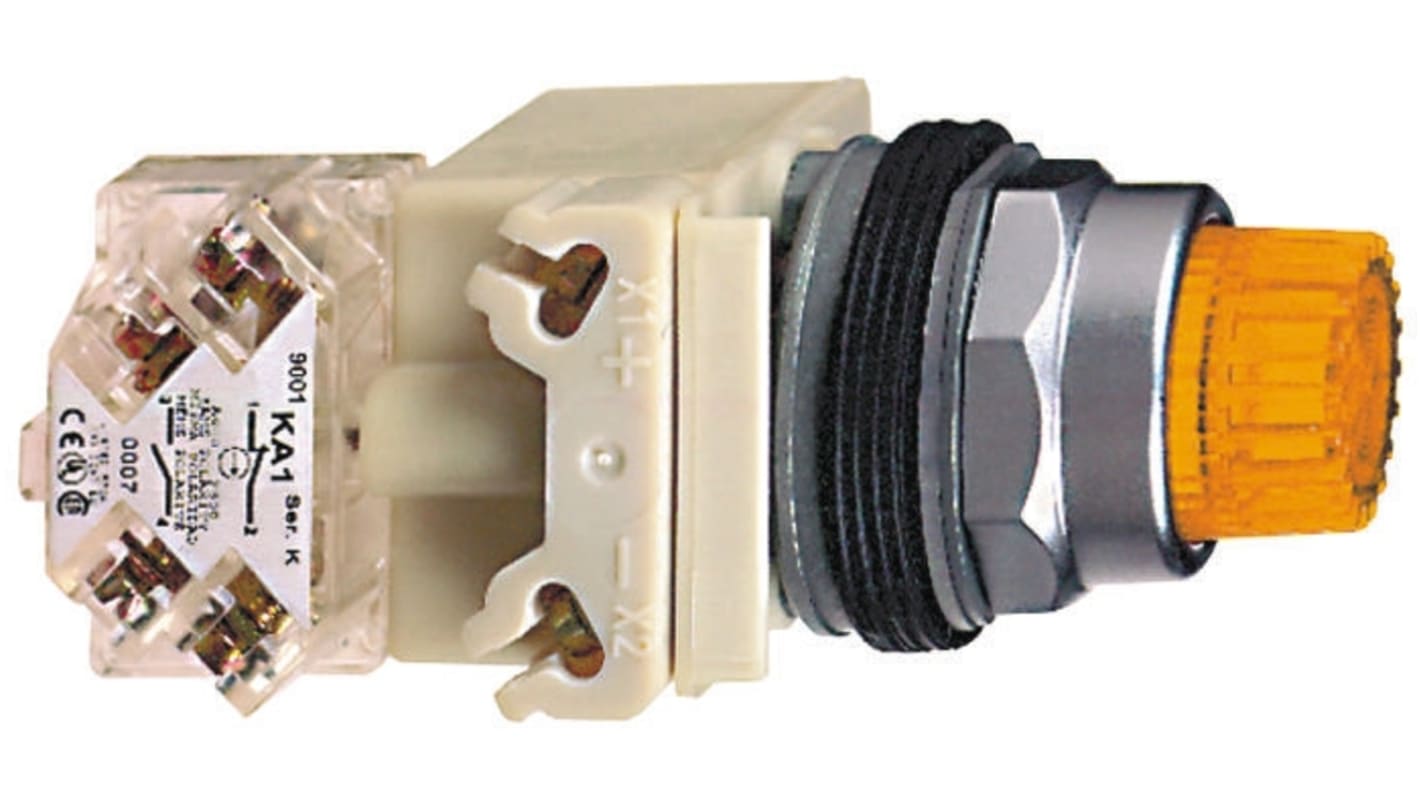

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, Panel, 30 mm Cutout, SPDT, Yellow
- RS 제품 번호:
- 542-8627
- 제조사 부품 번호:
- 9001K2L38LYAH13
- 제조업체:
- Schneider Electric
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩319,956.00
제조사가 재고 비축중
- 2026년 6월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩319,956.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 542-8627
- 제조사 부품 번호:
- 9001K2L38LYAH13
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Actuator Colour | Amber | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | Harmony 9001K | |
| Panel Cutout Size | 30 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| LED Colour | Yellow | |
| Terminal Type | Screw | |
| IP Rating | IP66 | |
| Actuator Style | Octagonal | |
| Contact AC Voltage | 120V ac | |
| Contact DC Voltage | 120V dc | |
| Minimum Operating Temperature | -25°C | |
| Switch Configuration | 1 CO | |
| Maximum Operating Temperature | 70°C | |
| Width | 54mm | |
| Standards/Approvals | CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508 | |
| Length | 103mm | |
| Height | 42mm | |
| Switch Contact Current | 550mA | |
| Legend | Unmarked | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Actuator Colour Amber | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series Harmony 9001K | ||
Panel Cutout Size 30 mm | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
LED Colour Yellow | ||
Terminal Type Screw | ||
IP Rating IP66 | ||
Actuator Style Octagonal | ||
Contact AC Voltage 120V ac | ||
Contact DC Voltage 120V dc | ||
Minimum Operating Temperature -25°C | ||
Switch Configuration 1 CO | ||
Maximum Operating Temperature 70°C | ||
Width 54mm | ||
Standards/Approvals CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508 | ||
Length 103mm | ||
Height 42mm | ||
Switch Contact Current 550mA | ||
Legend Unmarked | ||
제외
Illuminated Projecting Pushbuttons - Superbright LED
Supplied with lens, BA9s base mounted superbright LED and 1 changeover contact block
24v or 120v ac/dc supply voltage
Spring return operation
Standards
IEC 947-1, IEC 947-5-1, IEC 947-5-4, EN 60947-5-1, JIS C 4520 and 852, UL 508, CSA C22-2 n° 14
