EAO 56 Series Illuminated Push Button Switch, Momentary, Panel Mount, SPST, IP65, IP67
- RS 재고 번호:
- 513-3622
- 제조 부품 번호:
- 56-011.03.300.00.04.004.000 ,56-1400
- 제조업체:
- EAO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩266,565.20
마지막 RS 재고
- 최종적인 1 개 unit(s)이 배송 준비 됨
단위당 | 한팩당 |
|---|---|
| 1 - 9 | ₩266,565.20 |
| 10 - 49 | ₩258,575.20 |
| 50 - 99 | ₩250,566.40 |
| 100 - 249 | ₩245,246.00 |
| 250 + | ₩239,906.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 513-3622
- 제조 부품 번호:
- 56-011.03.300.00.04.004.000 ,56-1400
- 제조업체:
- EAO
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | 56 | |
| Mounting Type | Panel Mount | |
| Contact Configuration | Single Pole Single Throw (SPST) | |
| Push Button Style | Round | |
| IP Rating | IP65, IP67 | |
| Contact Current Rating | 200 mA @ 137 V | |
| Contact Material | Gold Plated Silver | |
| Manufacturer Part No. | 56-011.03.300.00.04.004.000 ,56-1400 | |
| Legend | Wheelchair (symbol) | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series 56 | ||
Mounting Type Panel Mount | ||
Contact Configuration Single Pole Single Throw (SPST) | ||
Push Button Style Round | ||
IP Rating IP65, IP67 | ||
Contact Current Rating 200 mA @ 137 V | ||
Contact Material Gold Plated Silver | ||
Manufacturer Part No. 56-011.03.300.00.04.004.000 ,56-1400 | ||
Legend Wheelchair (symbol) | ||
Disabled Access Pushbuttons IP67

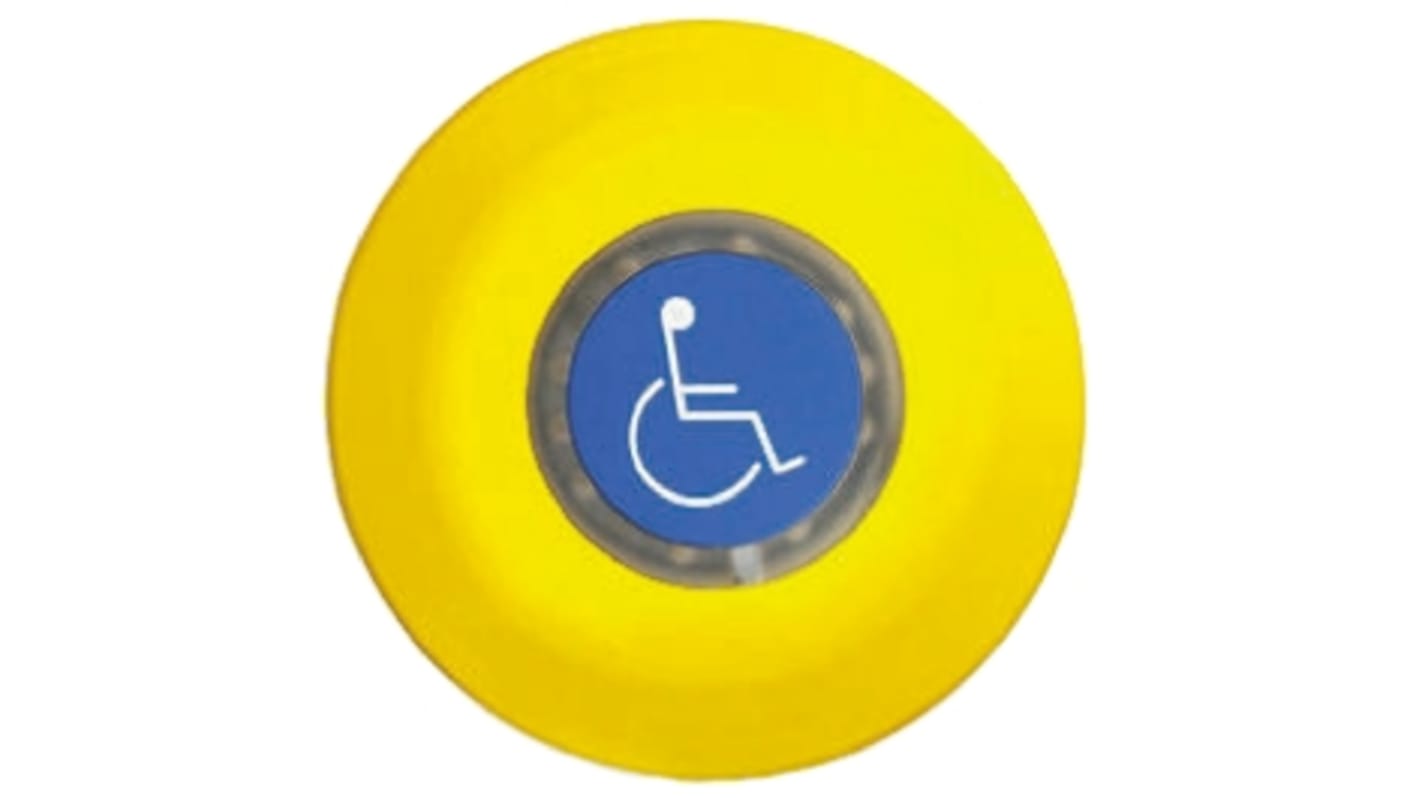

Door open – Wheelchair symbol plus "Door Open" engraved on bezel, blue raised metal palm push lens with wheelchair symbol. Illuminated with 8 green LEDs,SOS - Red raised metal lens engraved "SOS" with 8 red LEDs and yellow bezel "Emergency Aid",Open/Braille - Natural aluminium raised lens yellow LEDs with open chevrons and yellow bezel engraved "Open" with braille,Open/Braille with raised chevrons Natural aluminium raised lens yellow LEDs with black, raised, open chevrons and yellow bezel engraved "Open" with braille,Non Illuminated - Switch with blue plastic lens engraved with wheelchair symbol and plain yellow bezel
24Vdc LED halo illumination/unilluminated
Raised metal pressel for palm push operation/plastic lens
Large 34mm diameter vandal resistant actuator
IP67 sealed from front
Front mount with bezel/rear mount with studs
1 Normally open switch: Rating 137Vac/dc Max 200mA, minimum 5Vdc, 5mA
Front mounting: 3 fixing screws tamperproof with bezel
Rear mounting: use 3 studs
Raised metal pressel for palm push operation/plastic lens
Large 34mm diameter vandal resistant actuator
IP67 sealed from front
Front mount with bezel/rear mount with studs
1 Normally open switch: Rating 137Vac/dc Max 200mA, minimum 5Vdc, 5mA
Front mounting: 3 fixing screws tamperproof with bezel
Rear mounting: use 3 studs
