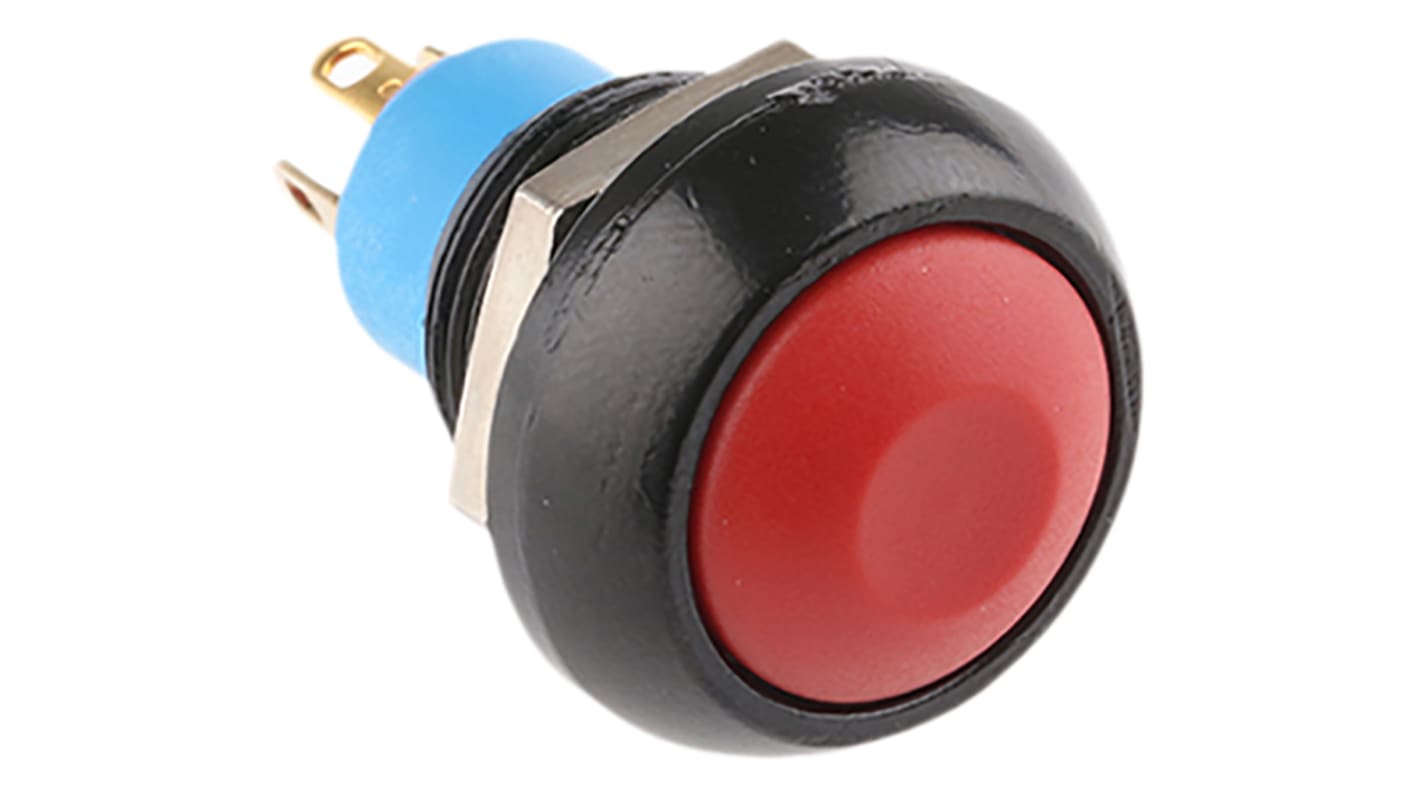

APEM IP Series Push Button Switch, Momentary, Panel, 12.9 mm Cutout, SPDT, IP67, 50 V dc 48 V ac
- RS 제품 번호:
- 499-4533
- 제조사 부품 번호:
- IPR5SAD6
- 제조업체:
- APEM
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩32,787.20
마지막 RS 재고
- 최종적인 310 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩32,787.20 |
| 10 - 49 | ₩31,790.80 |
| 50 - 99 | ₩30,813.20 |
| 100 - 249 | ₩30,324.40 |
| 250 + | ₩29,478.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 499-4533
- 제조사 부품 번호:
- IPR5SAD6
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Actuator Colour | Red | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 12.9 mm | |
| Series | IP | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Contact AC Voltage | 48V ac | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Plunger | |
| Contact DC Voltage | 50V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | SPDT, SPST NC | |
| Switch Contact Current | 5 A | |
| Standards/Approvals | RoHS | |
| Length | 17.5mm | |
| Width | 17.5 mm | |
| Height | 12mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Actuator Colour Red | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 12.9 mm | ||
Series IP | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Contact AC Voltage 48V ac | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Plunger | ||
Contact DC Voltage 50V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration SPDT, SPST NC | ||
Switch Contact Current 5 A | ||
Standards/Approvals RoHS | ||
Length 17.5mm | ||
Width 17.5 mm | ||
Height 12mm | ||
N/O / N/C momentary pushbutton switches IP 67 Series IP – lug terminals, ø 12mm bushing
For harsh environments.
Resistant to salt spray.
Very robust: IK06.
Excellent touch feedback.
Available in round or square version.
Standards
EN 50102 - IEC 512-4 - IEC 512-6
