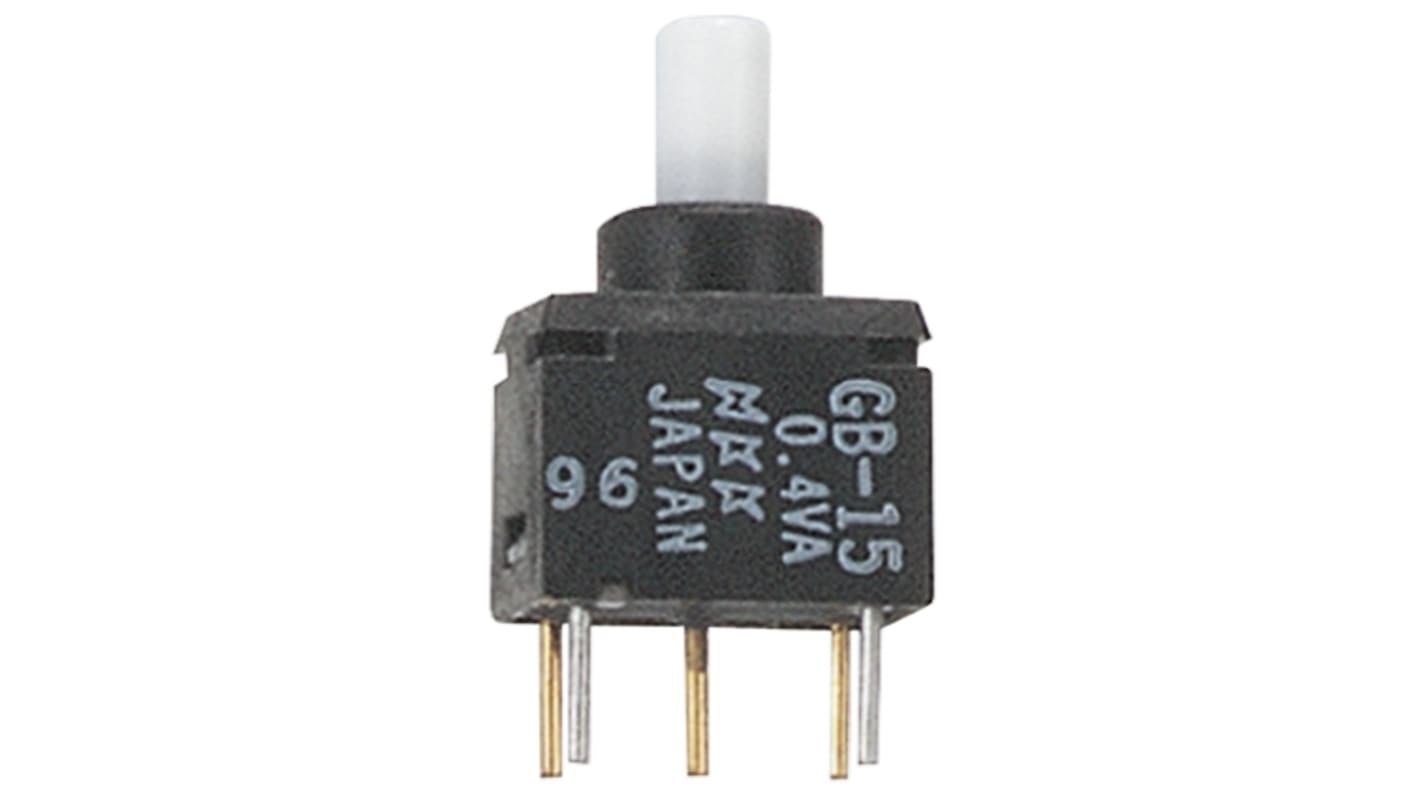

NKK Switches GB Series Push Button Switch, Momentary, PCB, SPDT, 28 V 28 V
- RS 제품 번호:
- 354-3487
- 제조사 부품 번호:
- GB-15AP
- 제조업체:
- NKK Switches
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩8,272.00
제한된 재고
- 25 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩8,272.00 |
| 50 - 99 | ₩8,008.80 |
| 100 - 249 | ₩7,783.20 |
| 250 - 499 | ₩7,651.60 |
| 500 + | ₩7,444.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 354-3487
- 제조사 부품 번호:
- GB-15AP
- 제조업체:
- NKK Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NKK Switches | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Series | GB | |
| Mount Type | PCB | |
| Contact Configuration | SPDT | |
| Terminal Type | Through Hole | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 28V | |
| Actuator Style | Plunger | |
| Contact DC Voltage | 28V | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, UL | |
| 모두 선택 | ||
|---|---|---|
브랜드 NKK Switches | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Series GB | ||
Mount Type PCB | ||
Contact Configuration SPDT | ||
Terminal Type Through Hole | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 28V | ||
Actuator Style Plunger | ||
Contact DC Voltage 28V | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, UL | ||
- COO (Country of Origin):
- JP
Fully Moulded Subminiature GB Series
Compact structure, less than 7mm in height excluding operating plunger
Pitch between terminals 2.54mm
Fully moulded construction with excellent electrostatic voltage resistance
Completely washable high ingress protection design
Certification: IECQ
Note: Button is optional, see later in this section
Note
Washing conditions: Max immersion time 5 minutes in 5cm deep bath
