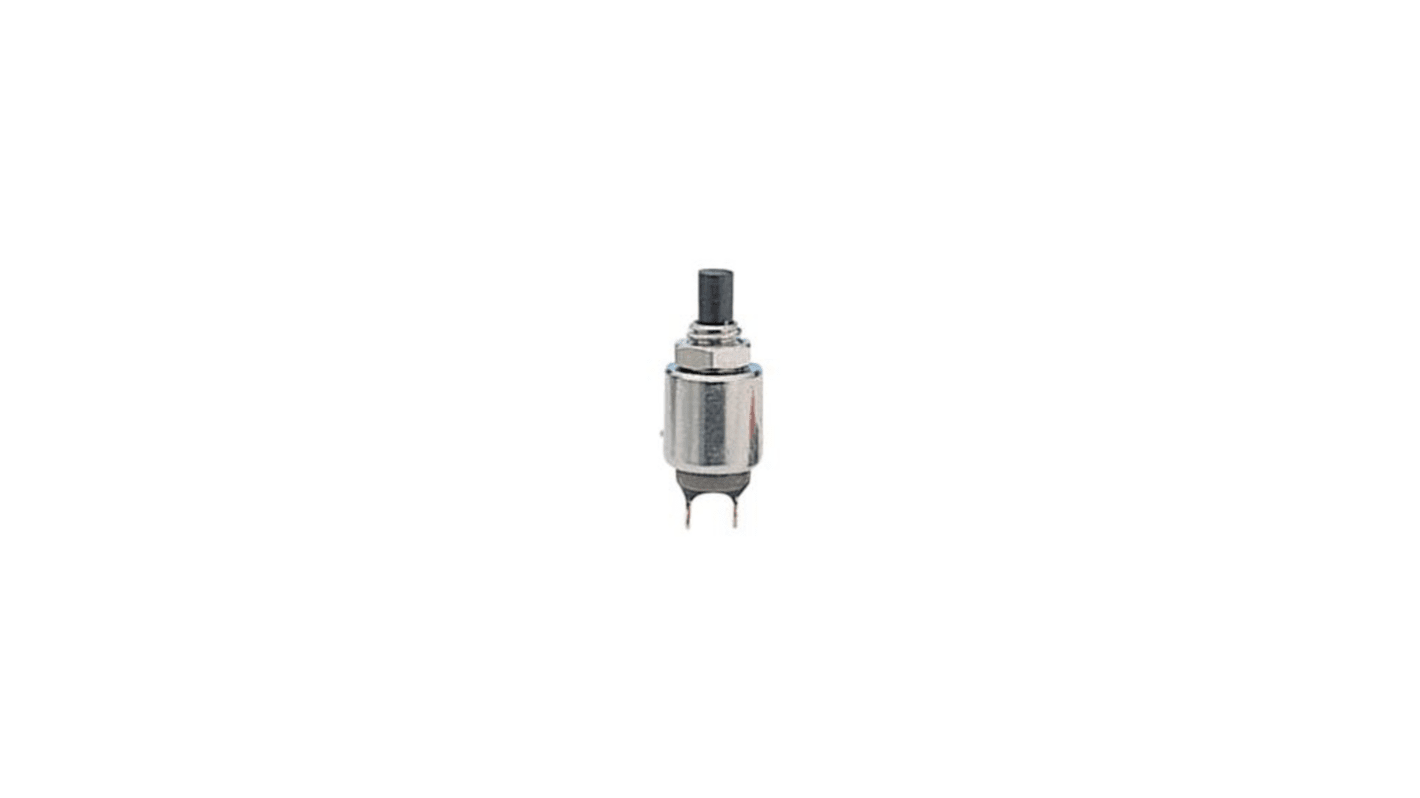

APEM 9000 Series Push Button Switch, Momentary, Panel, 30 V dc
- RS 제품 번호:
- 287-3662
- 제조사 부품 번호:
- 9533CD
- 제조업체:
- APEM
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩6,961.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩6,961.50 |
| 10 - 24 | ₩6,669.00 |
| 25 - 49 | ₩6,415.50 |
| 50 - 99 | ₩6,064.50 |
| 100 + | ₩5,830.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-3662
- 제조사 부품 번호:
- 9533CD
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | 9000 | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| Contact DC Voltage | 30V dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 65°C | |
| Switch Configuration | 1P | |
| Switch Contact Current | 100mA | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series 9000 | ||
Mount Type Panel | ||
Terminal Type Solder | ||
Contact DC Voltage 30V dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 65°C | ||
Switch Configuration 1P | ||
Switch Contact Current 100mA | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- FR
The APEM Panel Switch is a reliable single pole solution ideal for various electrical applications. With its normally open configuration, it ensures seamless operation and enhanced safety. Whether you need to activate lights, operate machinery, or control power flow, this panel switch is the perfect choice for efficiency and control.
Single pole design for efficient control
Normally open (NO) configuration for seamless operation
Gold plated brass contact materials for reliability
Torque of 0.5 Nm max. for easy installation
Operating temperature of -30°C to +65°C for versatility
Max. current/voltage rating of 100 mA 30 VDC for power control
Insulation resistance of 1,000 MΩ min. at 500 VDC for safety
Electrical life of 250,000 cycles for durability
