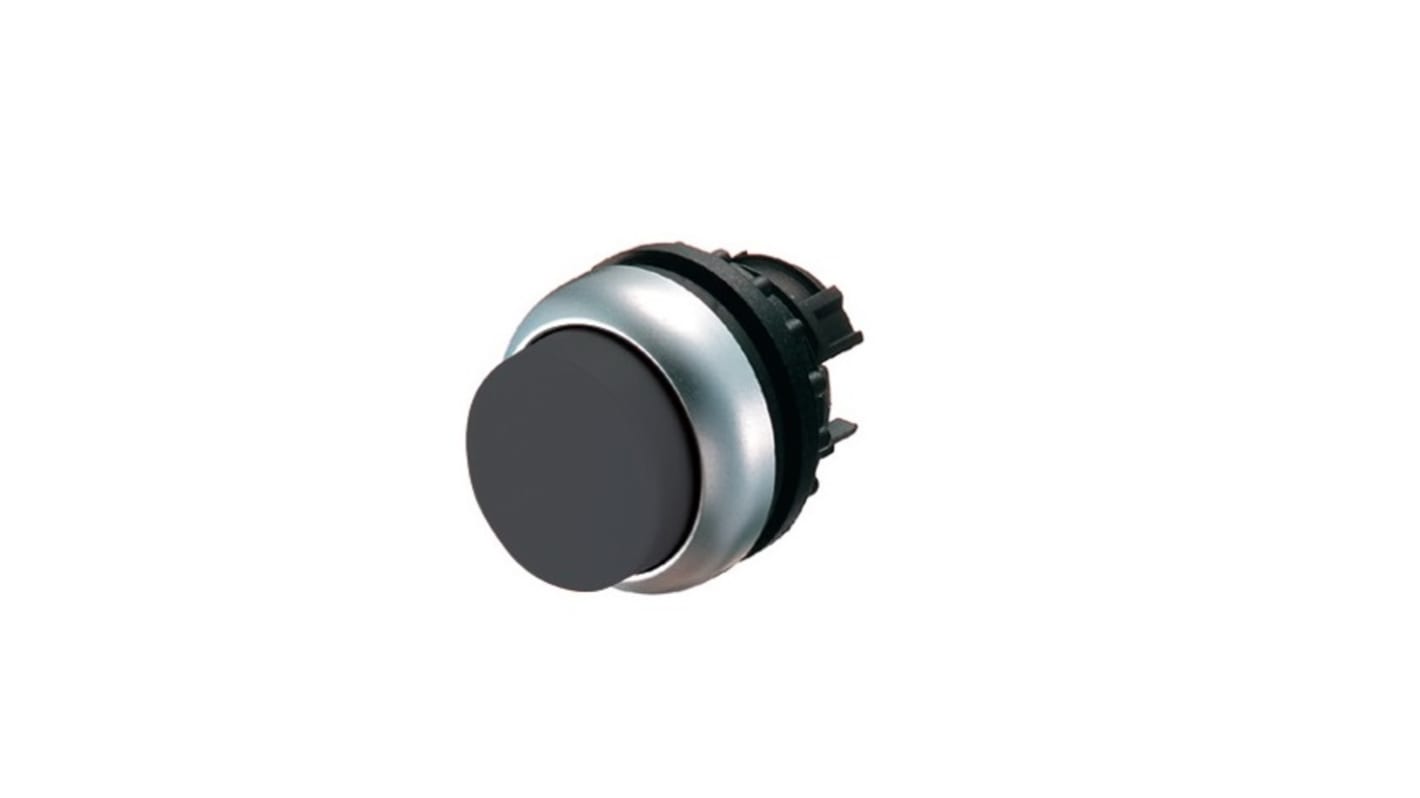

Eaton Push Button Switch, 22.50 mm Cutout Black, IP66, IP67, IP69K

RS 제품 번호:: 276-6539
제조사 부품 번호:: 216663 M22-DRH-S
제조업체:: Eaton

Eaton Push Button Switch, 22.50 mm Cutout Black, IP66, IP67, IP69K

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 pack of 5 units)*

₩166,030.00

5 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 +	₩33,206.00	₩166,032.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 276-6539
제조사 부품 번호:: 216663 M22-DRH-S
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Push Button Switch
	Illuminated	No
	Cutout Diameter	22.50mm
	Series	Eaton Moeller
	Push Button Actuation	Latching
	Push Button Colour	Black
	Push Button Style	Round
	Push Button Shape	Round
	IP Rating	IP66, IP67, IP69K
	Minimum Operating Temperature	-25°C
	Push Button Diameter	22mm
	Push Button Material	Plastic
	Maximum Operating Temperature	70°C
	Standards/Approvals	UL, DNV, UL 508, IEC/EN 60947, UL Category Control No.:NKCR, GL, UL File No.:E29184, IEC/EN 60947-5, CSA Class No.:3211-03, CE, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, VDE 0660, LR, CSA File No.:012528, CSA
	Body Material	Plastic

	모두 선택
	브랜드 Eaton
	Product Type Push Button Switch
	Illuminated No
	Cutout Diameter 22.50mm
	Series Eaton Moeller
	Push Button Actuation Latching
	Push Button Colour Black
	Push Button Style Round
	Push Button Shape Round
	IP Rating IP66, IP67, IP69K
	Minimum Operating Temperature -25°C
	Push Button Diameter 22mm
	Push Button Material Plastic
	Maximum Operating Temperature 70°C
	Standards/Approvals UL, DNV, UL 508, IEC/EN 60947, UL Category Control No.:NKCR, GL, UL File No.:E29184, IEC/EN 60947-5, CSA Class No.:3211-03, CE, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, VDE 0660, LR, CSA File No.:012528, CSA
	Body Material Plastic

COO (Country of Origin):: DE

Eaton Push Button Switch, 22.5mm Cut-out Diameter, black actuator - 216663 M22-DRH-S

This push button switch provides a panel-mounted control solution for industrial environments, offering a latching round actuator in black for maintained operation. It is designed for use in machinery and switchgear with a 22.5mm cut-out and a 22mm actuator diameter, and is supplied with a titanium-coloured bezel and a plastic body. The device is non‑illuminated and suitable for demanding ambient conditions where ingress protection and standard approvals are required.

Features and Benefits:

• IP67/IP69K waterproof protection ensures washdown resilience
• Latching action provides a maintained control state for operators
• Operates from -25 to 70°C for broad environmental use
• 5N actuating force allows predictable tactile operation
• Mechanical life 1,000,000 operations supports high‑cycle applications

Applications

• Suitable for control panels requiring a panel‑mount 22mm switch
• Ideal for food processing plants needing washdown‑capable controls
• Used with motor starters and industrial switchgear assemblies
• Suitable for marine and offshore electrical panels requiring approvals
• Used for operator stations in harsh manufacturing environments

What approvals confirm suitability for regulated installations?

It carries UL, IEC/EN 60947, CSA, CE, DNV, GL and LR related approvals.

How is the switch configured for stay‑put or spring‑return?

The device is supplied as maintained and can be altered on the unit to a spring‑return function.

What materials are used for the actuator and bezel?

The actuator and body are plastic and the front bezel is titanium‑coloured plastic.

How is the unit mounted in a control panel?

It requires a 22.5mm opening and front‑side sealing achieves IP67/IP69K protection.

What operating frequency and mechanical lifespan apply?

It is rated for 1,800 operations/h and a mechanical life of 1,000,000 operations.

Note

Eaton formerly known as Moeller
