Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 30 mm Cutout, 1 NO, IP66, IP67, 600 V dc 240
- RS 제품 번호:
- 276-2634
- 제조사 부품 번호:
- XB5FA21C0
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩36,874.50
제조사가 재고 비축중
- 2026년 5월 18일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩36,874.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 276-2634
- 제조사 부품 번호:
- XB5FA21C0
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Actuator Colour | Black | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 30 mm | |
| Series | Harmony | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| IP Rating | IP66, IP67 | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Button | |
| Contact DC Voltage | 600V dc | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Switch Contact Current | 3A | |
| Length | 55mm | |
| Width | 36.6mm | |
| Standards/Approvals | CSA, REACH, RoHS | |
| Height | 42mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Actuator Colour Black | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 30 mm | ||
Series Harmony | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
Terminal Type Screw | ||
IP Rating IP66, IP67 | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Button | ||
Contact DC Voltage 600V dc | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Switch Contact Current 3A | ||
Length 55mm | ||
Width 36.6mm | ||
Standards/Approvals CSA, REACH, RoHS | ||
Height 42mm | ||
제외
- COO (Country of Origin):
- FR

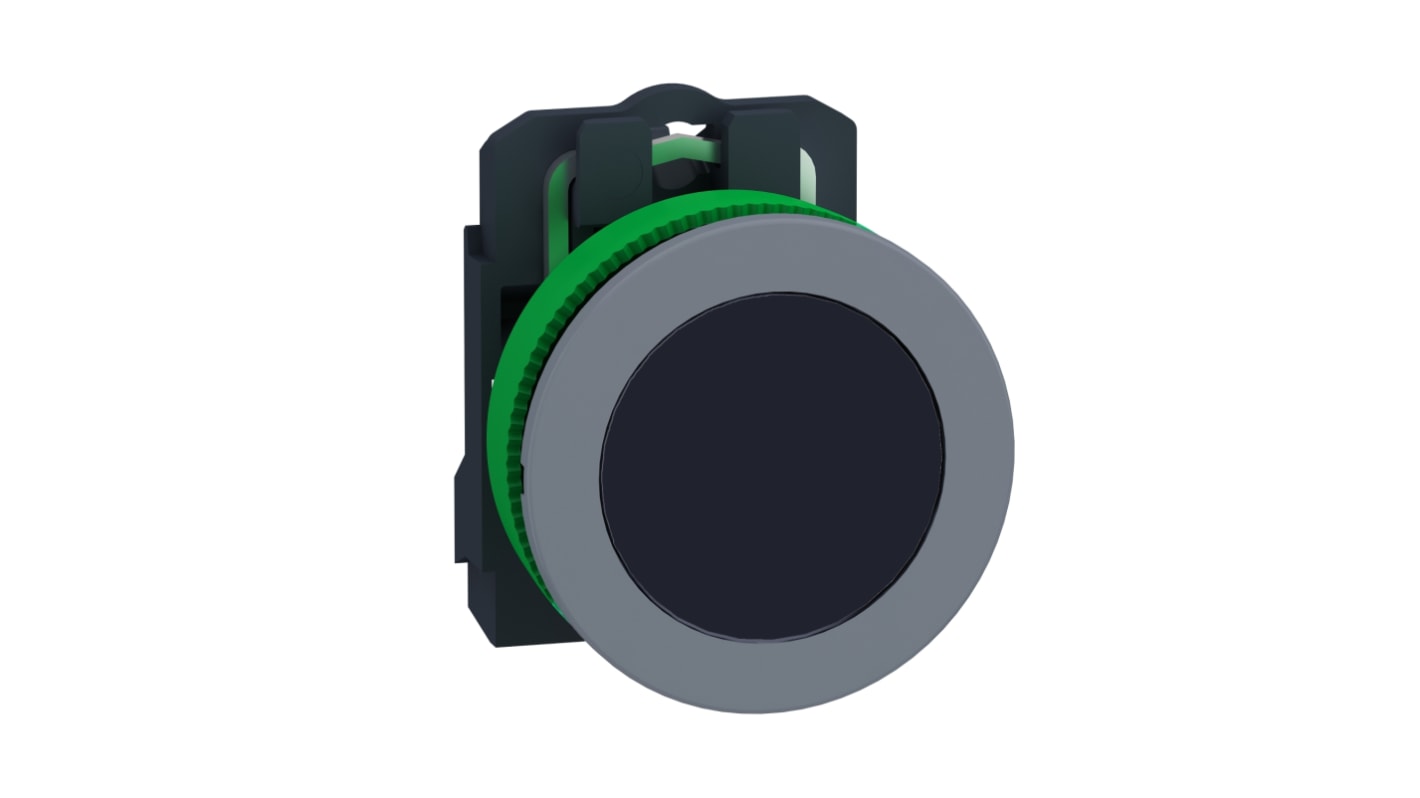

The Schneider Electric Push Button featuring an antimicrobial grey bezel and a black flush button, this 30mm spring return switch ensures precise and responsive control. With 1 normally open contact and an unmarked design, it offers flexibility for customized applications. The antimicrobial properties make it well suited for environments where cleanliness is crucial.
Mercury free
RoHS compliant
Toxic heavy metal free
IP66 and IP67 degree of protection
