Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 22.5 mm Cutout, 1 NO, IP66, IP67, 600 V dc
- RS 제품 번호:
- 276-2596
- 제조사 부품 번호:
- XB5AP51C0
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩45,006.00
제조사가 재고 비축중
- 2026년 7월 01일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩45,006.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 276-2596
- 제조사 부품 번호:
- XB5AP51C0
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Actuator Colour | Yellow | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 22.5 mm | |
| Series | Harmony | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| IP Rating | IP66, IP67 | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 240V ac | |
| Contact DC Voltage | 600V dc | |
| Maximum Operating Temperature | 70°C | |
| Width | 30mm | |
| Switch Contact Current | 3A | |
| Standards/Approvals | CSA, REACH, RoHS | |
| Length | 61mm | |
| Height | 42mm | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Actuator Colour Yellow | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 22.5 mm | ||
Series Harmony | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
Terminal Type Screw | ||
IP Rating IP66, IP67 | ||
Actuator Style Button | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 240V ac | ||
Contact DC Voltage 600V dc | ||
Maximum Operating Temperature 70°C | ||
Width 30mm | ||
Switch Contact Current 3A | ||
Standards/Approvals CSA, REACH, RoHS | ||
Length 61mm | ||
Height 42mm | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
제외
- COO (Country of Origin):
- FR

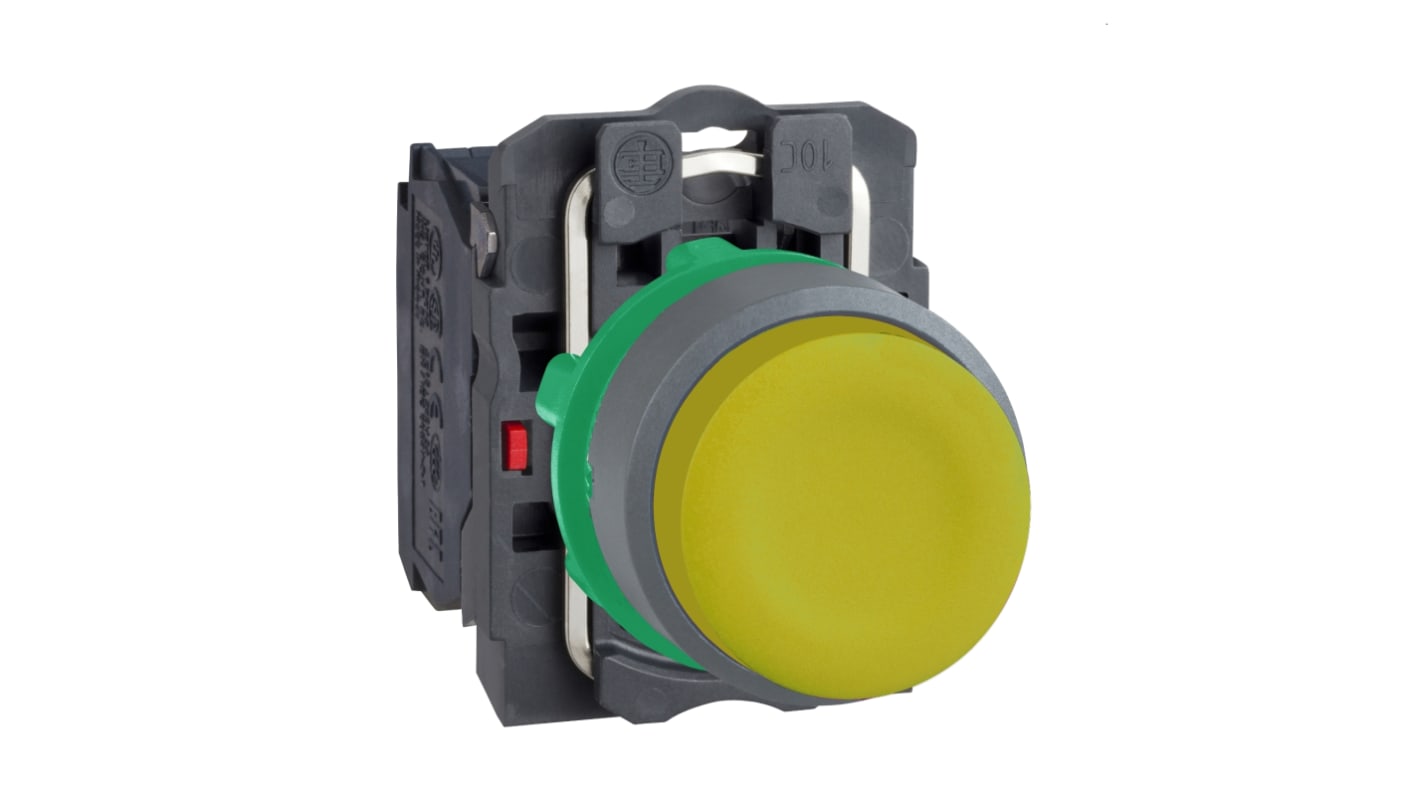

The Schneider Electric Push Button featuring a yellow projecting button with a grey bezel, designed for 22mm mounting. With a clear boot and a spring return mechanism, it ensures precise and responsive control. Equipped with 1 normally open contact, this push button offers flexibility for various applications. The unmarked design allows for customization according to specific control needs.
Mercury free
RoHS compliant
Toxic heavy metal free
IP66 and IP67 degree of protection
