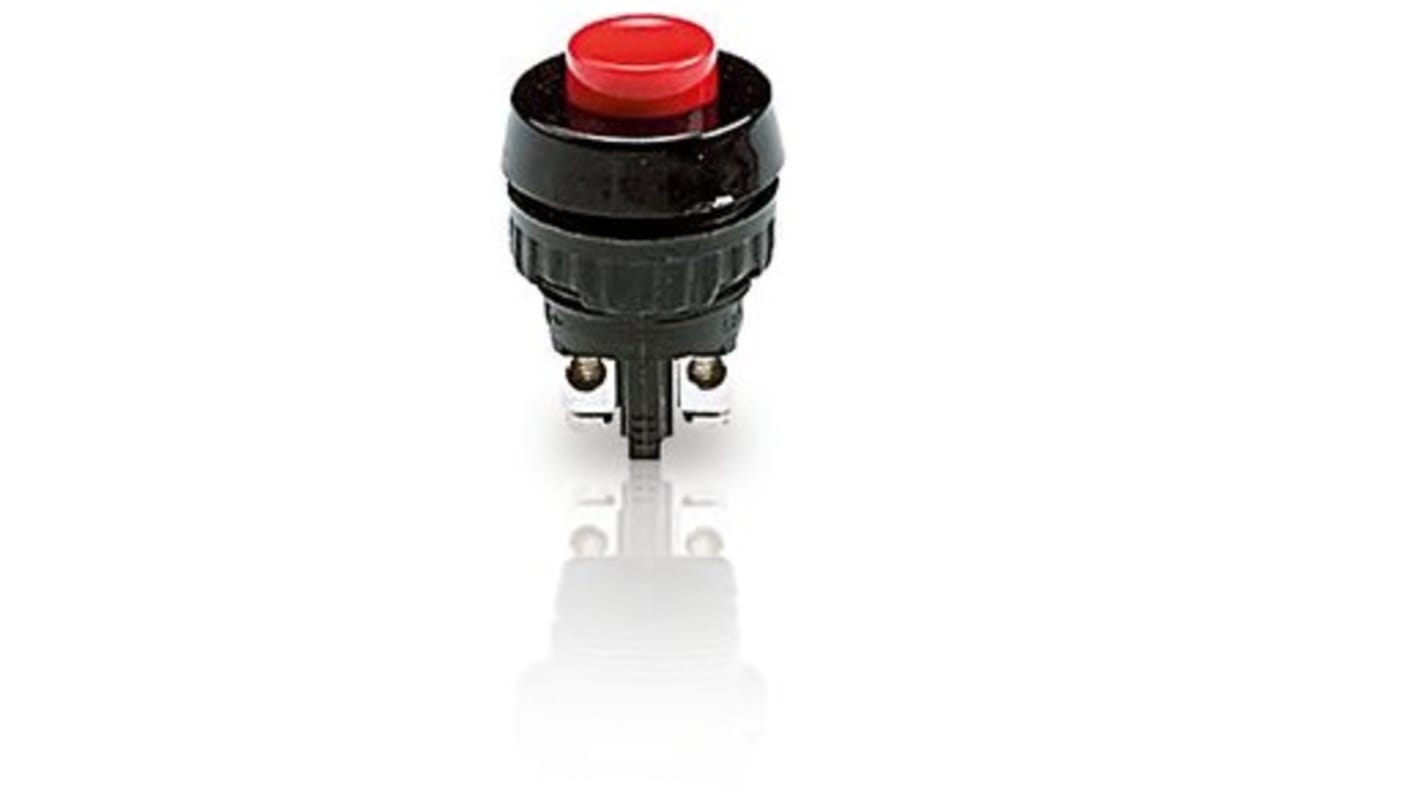

RAFI 1.1 Series Push Button Switch, Momentary, Panel, 15.2 mm Cutout, SPST, IP40, IP65
- RS 제품 번호:
- 271-9074
- Distrelec 제품 번호:
- 135-52-234
- 제조사 부품 번호:
- 1.10.001.011/0104
- 제조업체:
- RAFI
일시적 품절
- RS 제품 번호:
- 271-9074
- Distrelec 제품 번호:
- 135-52-234
- 제조사 부품 번호:
- 1.10.001.011/0104
- 제조업체:
- RAFI
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RAFI | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Illuminated | No | |
| Series | 1.1 | |
| Panel Cutout Size | 15.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| IP Rating | IP40, IP65 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | Momentary | |
| Switch Contact Current | 700 mA | |
| Height | 8.2mm | |
| Width | 19 mm | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 RAFI | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Illuminated No | ||
Series 1.1 | ||
Panel Cutout Size 15.2 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
IP Rating IP40, IP65 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration Momentary | ||
Switch Contact Current 700 mA | ||
Height 8.2mm | ||
Width 19 mm | ||
Standards/Approvals RoHS | ||
제외
- COO (Country of Origin):
- HU
The RAFI pushbutton has mounting diameter of 15.2 mm. It has actuation with momentary contact function.
Collar shape round
Bezel colour Black
IP40 degree of protection
Screw and flat plug connection
