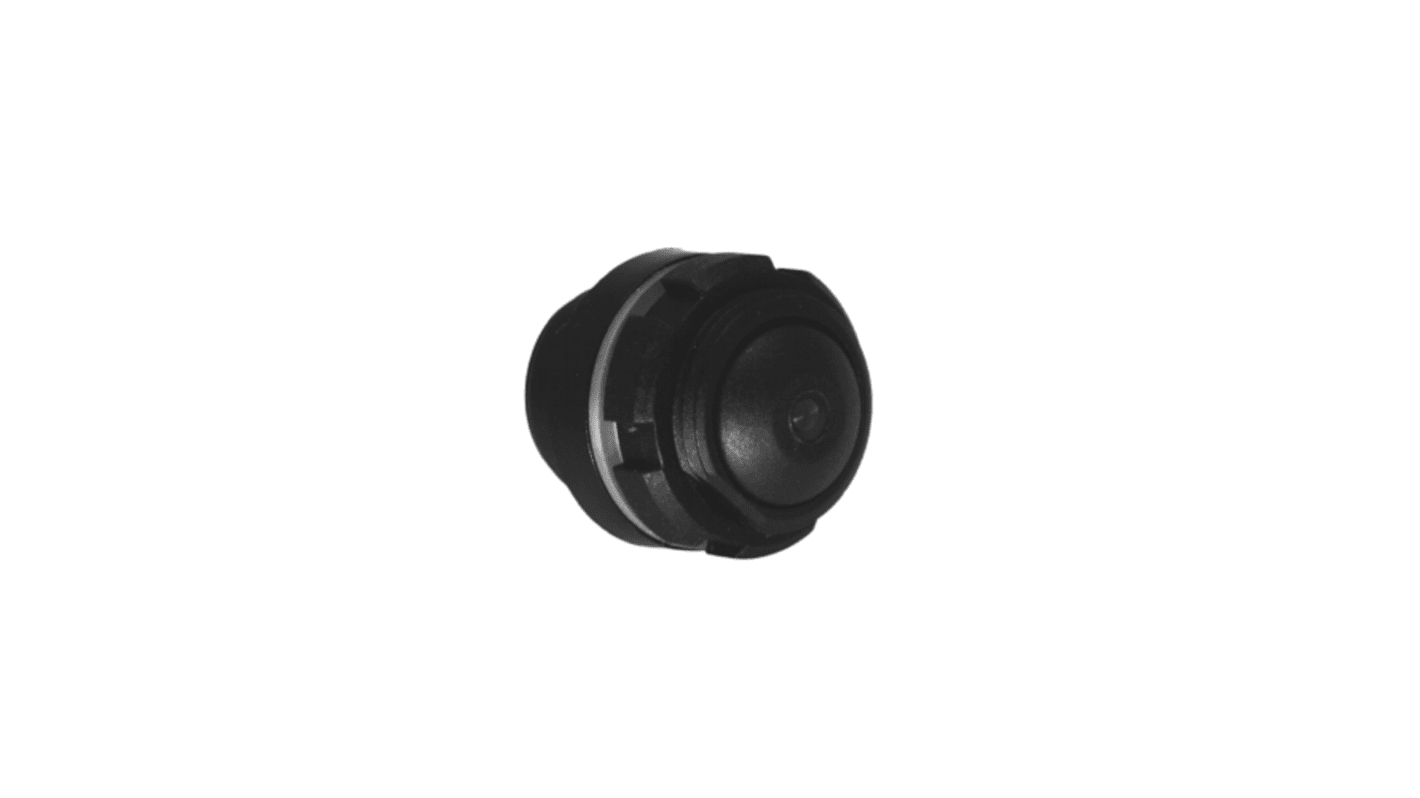

APEM IZ Series Illuminated Push Button Switch, Momentary, Panel, 15 mm Cutout, 1 NO, Blue LED, IP67, 24 V dc
- RS 제품 번호:
- 267-5275
- 제조사 부품 번호:
- IZPR1S422L0B
- 제조업체:
- APEM
Subtotal (1 unit)*
₩53,917.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩53,917.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 267-5275
- 제조사 부품 번호:
- IZPR1S422L0B
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Illuminated | Yes | |
| Panel Cutout Size | 15 mm | |
| Series | IZ | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| LED Colour | Blue | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Actuator Style | Plunger | |
| Minimum Operating Temperature | -40°C | |
| Contact DC Voltage | 24V dc | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 85°C | |
| Height | 27.9mm | |
| Switch Contact Current | 100mA | |
| Standards/Approvals | IEC 512-6, IEC 512-4, IEC 60529, UL 94 V-0 | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Illuminated Yes | ||
Panel Cutout Size 15 mm | ||
Series IZ | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
LED Colour Blue | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Actuator Style Plunger | ||
Minimum Operating Temperature -40°C | ||
Contact DC Voltage 24V dc | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 85°C | ||
Height 27.9mm | ||
Switch Contact Current 100mA | ||
Standards/Approvals IEC 512-6, IEC 512-4, IEC 60529, UL 94 V-0 | ||
- COO (Country of Origin):
- FR
The APEM pushbutton switches with curved actuator are made up of polyamide or a metal case. This pushbutton switches are available with latching action models which perform OFF to ON operation. This switch offers an excellent vibration resistance at 10 to 500 Hz.
Easy installation
Flat actuator for optional marking
200000 cycles low level or mechanical life
0.7 Nm maximum torque applied to nut
