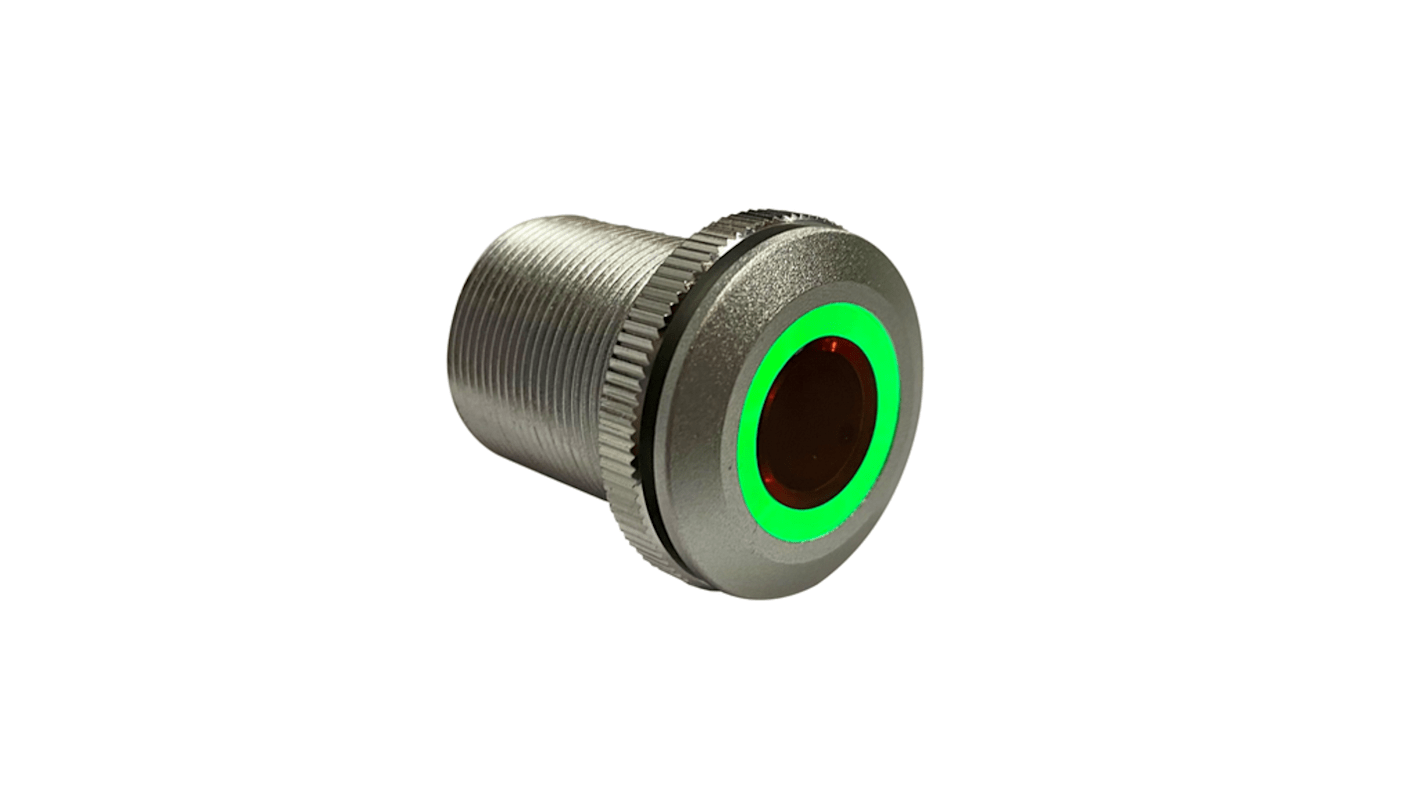

Lascar Contactless Switch Series Illuminated Infrared Proximity Switch, Latching, Panel, 22 → 23 mm Cutout, Green, Red

모든 Push Button Switches 열람하기
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
RS 제품 번호:
267-5149
제조사 부품 번호:
CTL-SW-LO
제조업체:
Lascar
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Lascar

Switch Operation

Latching

Product Type

Infrared Proximity Switch

Actuator Colour

Grey

Illuminated

Yes

Series

Contactless Switch

Panel Cutout Size

22 → 23 mm

Mount Type

Panel

LED Colour

Green, Red

IP Rating

IP67

Actuator Style

Round

Minimum Operating Temperature

-30°C

Contact DC Voltage

30V dc

Contact AC Voltage

24V

Maximum Operating Temperature

70°C

Standards/Approvals

CE

Width

27mm

Length

31mm

COO (Country of Origin):
CN

Product Details


The Lascar infrared proximity switch is a latching touchless normally open, infrared proximity switch, designed to be easily activated without the need for physical contact. The device runs on 12VDC drawing a minimal 15mA when in standby mode where it will display a red LED, and 25mA when active where it will display a green LED.

Features and benefits


Momentary infrared sensor

Red/Green status ring illumination

Anodised aluminium shell

Wire length 175mm

Typical Applications


Facilities Management

Housing and business premises

Museums and exhibitions

What other Data Loggers are available in this Lascar range?


CTL-SW-MC

CTL-SW-MO

CTL-SW-LC
