RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19.2mm Cutout, DPST, Red LED, 250V ac, IP65

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩47,676.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 15일 부터 32 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩47,676.80
10 - 99₩46,248.00
100 +₩38,070.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
248-9145
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Switch Operation

Latching

Illuminated

Yes

Series

SW19S

Panel Cut Out Diameter

19.2mm

Mounting Type

Panel Mount

Contact Configuration

DPST

Voltage Rating

250V ac

Push Button Style

Round

LED Colour

Red

IP Rating

IP65

Contact Current Rating

5 A @ 250 V ac

Contact Material

Silver Alloy

Contact AC Voltage Rating

250V

Case Colour

Natural

Legend

Dot

Minimum Operating Temperature

-40°C

Terminal Type

Screw

Maximum Operating Temperature

+80°C

제외

COO (Country of Origin):
CN

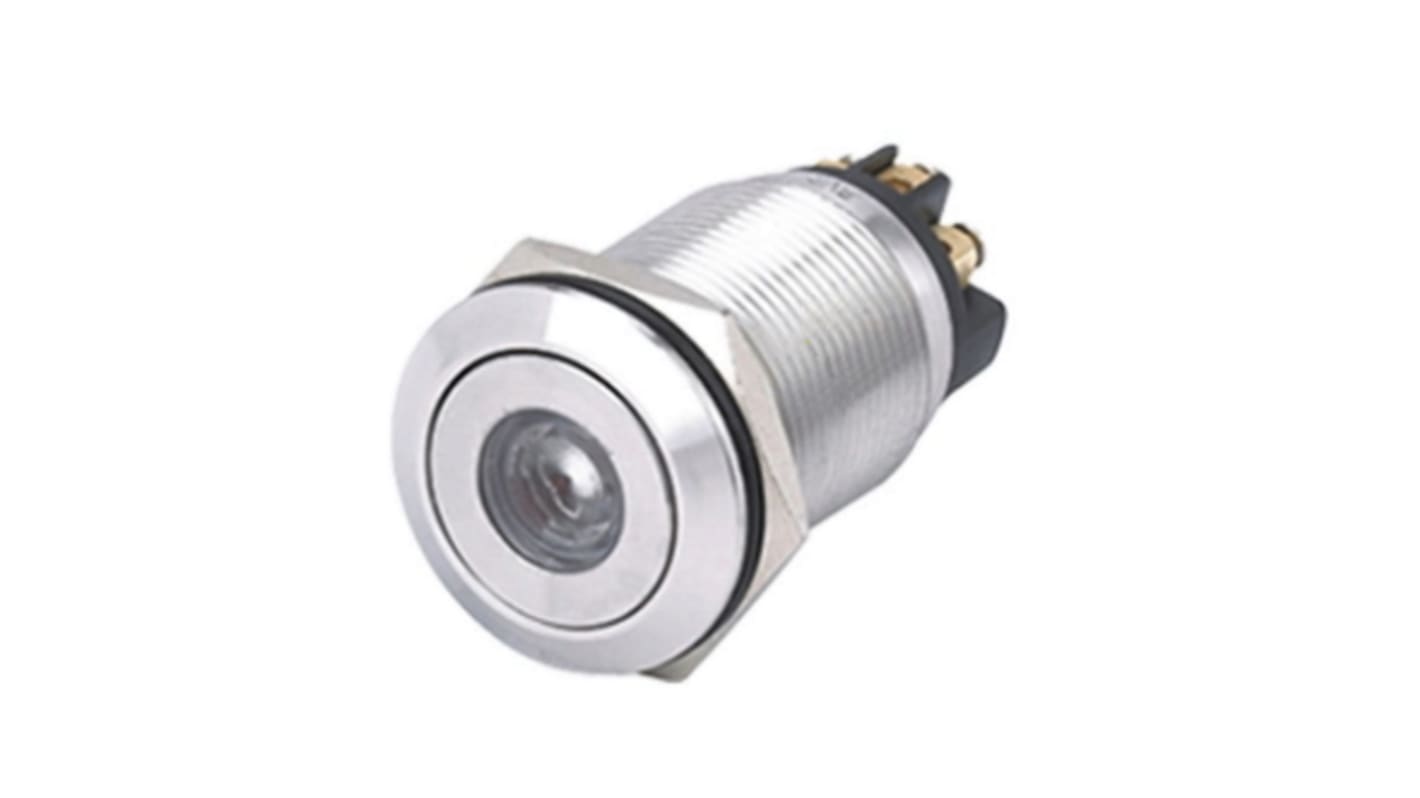

RS PRO Anti-Vandal Red Illuminated Dot Push Button Switch, 19.2mm


RS PRO’s high quality Stainless Steel anti vandal pushbutton is ideal for use in harsh conditions or public facing applications and is designed to withstand damage from physical attacks and repeated use. The illuminated dot in the centre this LED push button is highly visible and ideal for use in areas with low light levels.

The RS PRO IP65 push button is panel mounted for easy and quick installation and is rated for water resistance and ingress protection making it suitable for use in internal and external applications.

Vandal resistant metal push buttons have a wide range of applications including typically panel alarms, door and gate access control, elevators and escalators as well as lift and instrument control.

Features and Benefits


  • Red LED illumination

  • Stainless Steel push button

  • Vandal resistant

  • Panel mount installation

  • Latching switch operation

  • ≥1,000,000 operations

  • ≥1,000 MΩ Insulation Resistance

  • Screw terminals

Standards and Approvals: IP65, IK10

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Supplied with

1 x Switch, 1 x Hex Nut, 1 x O-Ring
