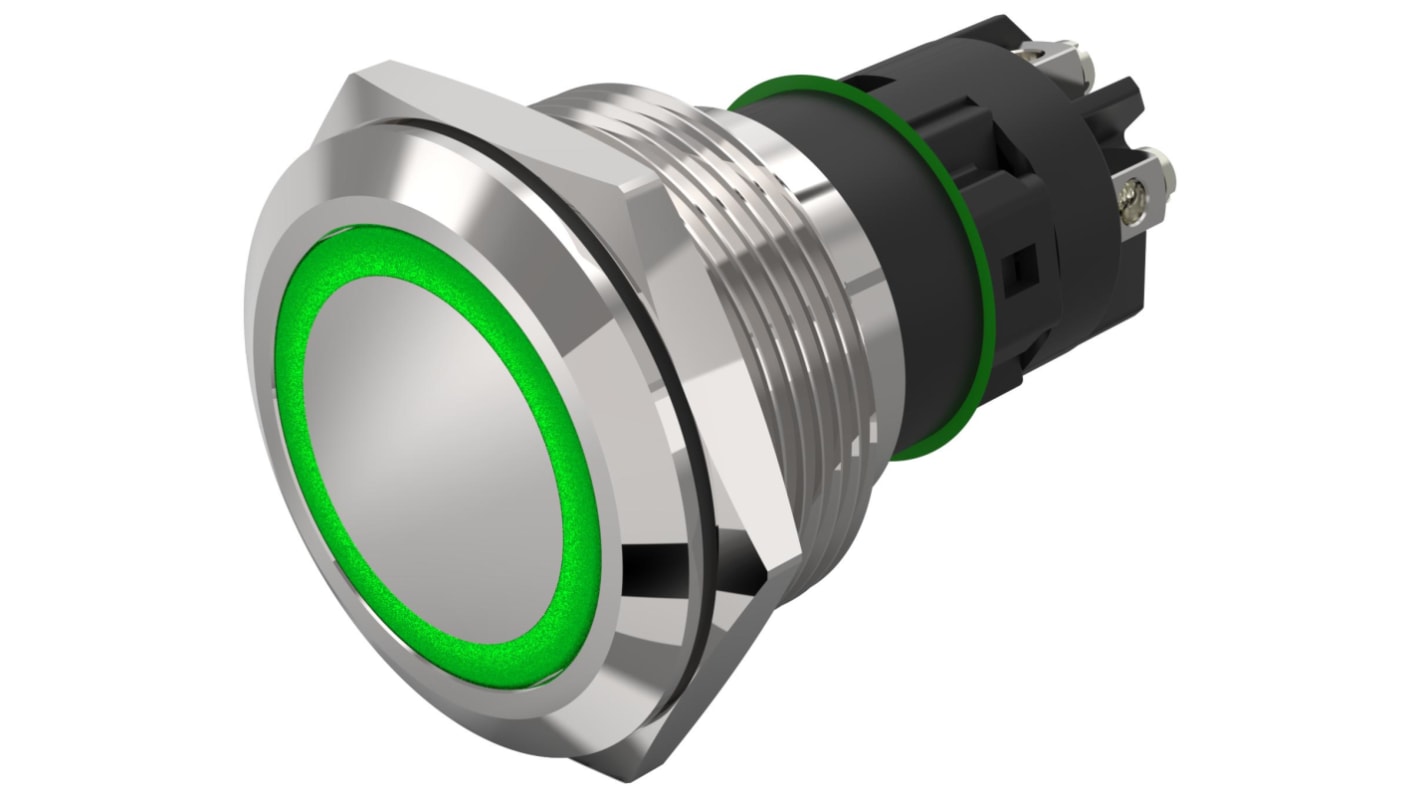

EAO 82 Series Illuminated Illuminated Push Button, Latching, Panel, 22 mm Cutout, SPDT, Green LED, IP67, IP65, 240 V 240
- RS 제품 번호:
- 247-9059
- Distrelec 제품 번호:
- 303-16-467
- 제조사 부품 번호:
- 82-6152.2134
- 제조업체:
- EAO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩44,424.40
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩44,424.40 |
| 10 - 99 | ₩43,371.60 |
| 100 + | ₩42,318.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 247-9059
- Distrelec 제품 번호:
- 303-16-467
- 제조사 부품 번호:
- 82-6152.2134
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Actuator Colour | Silver | |
| Product Type | Illuminated Push Button | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Series | 82 | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| LED Colour | Green | |
| Terminal Type | Screw | |
| IP Rating | IP67, IP65 | |
| Contact AC Voltage | 240V | |
| Contact DC Voltage | 240V | |
| Minimum Operating Temperature | 70°C | |
| Actuator Style | Flat | |
| Maximum Operating Temperature | -30°C | |
| Switch Configuration | Off-On | |
| Switch Contact Current | 3 A | |
| Length | 25mm | |
| Standards/Approvals | UL, cUL, CCC, CB | |
| Height | 39.5mm | |
| Width | 22 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Actuator Colour Silver | ||
Product Type Illuminated Push Button | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Series 82 | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
LED Colour Green | ||
Terminal Type Screw | ||
IP Rating IP67, IP65 | ||
Contact AC Voltage 240V | ||
Contact DC Voltage 240V | ||
Minimum Operating Temperature 70°C | ||
Actuator Style Flat | ||
Maximum Operating Temperature -30°C | ||
Switch Configuration Off-On | ||
Switch Contact Current 3 A | ||
Length 25mm | ||
Standards/Approvals UL, cUL, CCC, CB | ||
Height 39.5mm | ||
Width 22 mm | ||
- COO (Country of Origin):
- CH
The EAO pushbutton has snap-action switching element system. It has operating temperature range from -30 °C to + 70 °C. It is damp heat resistant for 21 days according to IEC 60512-11.
Silver contacts
CB, CCC, C UL, and UL approved
