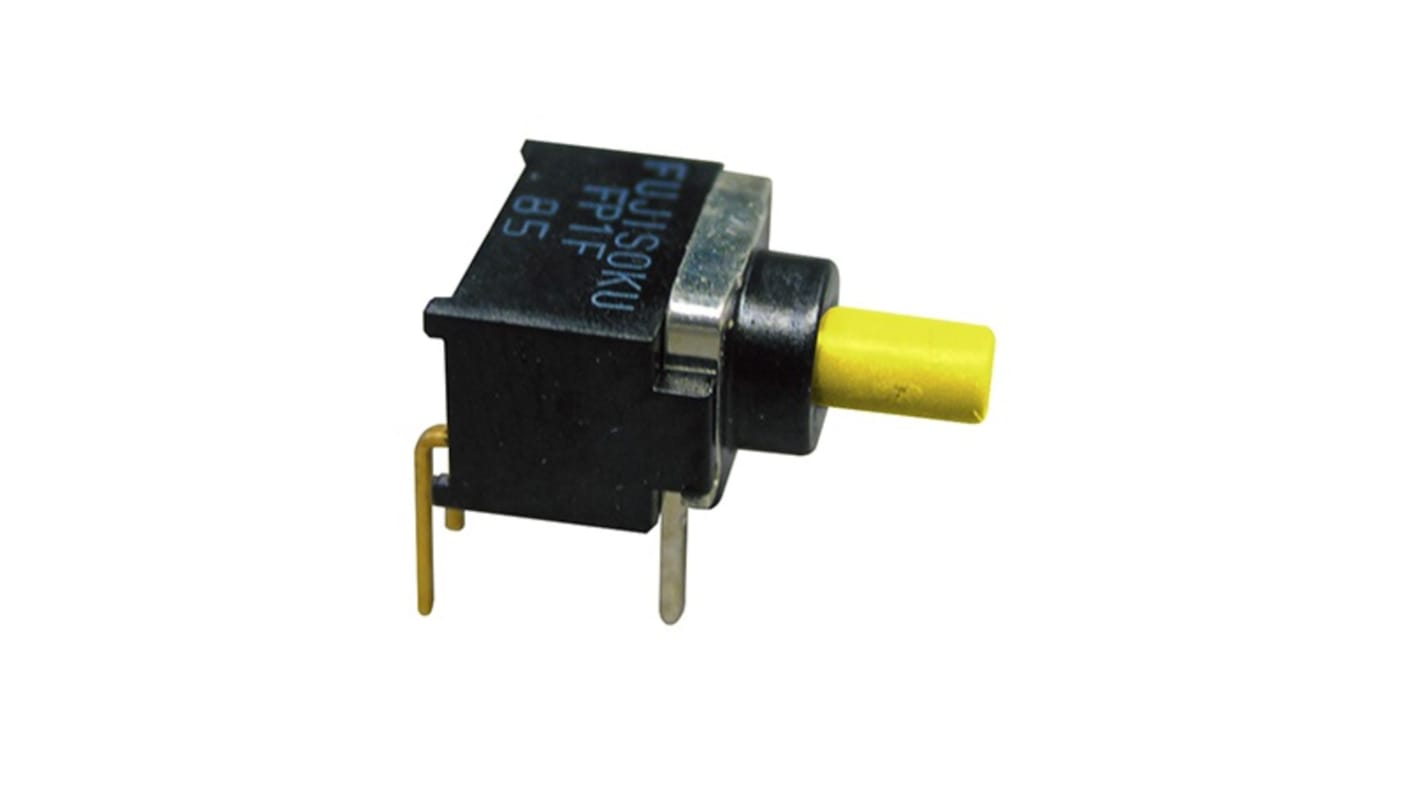

Nidec Components FP Series Push Button Switch, On-On, PCB, 4.5 x 7 mm Cutout, DPDT, 28 V dc
- RS 제품 번호:
- 244-3717
- 제조사 부품 번호:
- FP2F-5M-Z
- 제조업체:
- Nidec Components
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tray of 50 units)*
₩384,735.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 50 - 50 | ₩7,694.70 | ₩384,735.00 |
| 100 - 200 | ₩7,415.85 | ₩370,753.50 |
| 250 + | ₩7,064.85 | ₩353,262.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 244-3717
- 제조사 부품 번호:
- FP2F-5M-Z
- 제조업체:
- Nidec Components
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nidec Components | |
| Product Type | Push Button Switch | |
| Switch Operation | On-On | |
| Actuator Colour | Yellow | |
| Illuminated | No | |
| Panel Cutout Size | 4.5 x 7 mm | |
| Series | FP | |
| Mount Type | PCB | |
| Contact Configuration | DPDT | |
| Terminal Type | Solder | |
| Contact DC Voltage | 28V dc | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 4.5mm | |
| Length | 7mm | |
| Switch Contact Current | 400mA | |
| Height | 13.5mm | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nidec Components | ||
Product Type Push Button Switch | ||
Switch Operation On-On | ||
Actuator Colour Yellow | ||
Illuminated No | ||
Panel Cutout Size 4.5 x 7 mm | ||
Series FP | ||
Mount Type PCB | ||
Contact Configuration DPDT | ||
Terminal Type Solder | ||
Contact DC Voltage 28V dc | ||
Actuator Style Button | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 4.5mm | ||
Length 7mm | ||
Switch Contact Current 400mA | ||
Height 13.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
The NIDEC COPAL ELECTRONICS FP series ultra miniature pushbutton switch for high density mounting with gold plated contacts and terminal pin pitch of 2.54 mm.
Washable
Independent detent mechanism ensures light operational feel
Clip contact mechanism for long term contact reliability
